Cables, Connectors, and Related Devices Section 2-3

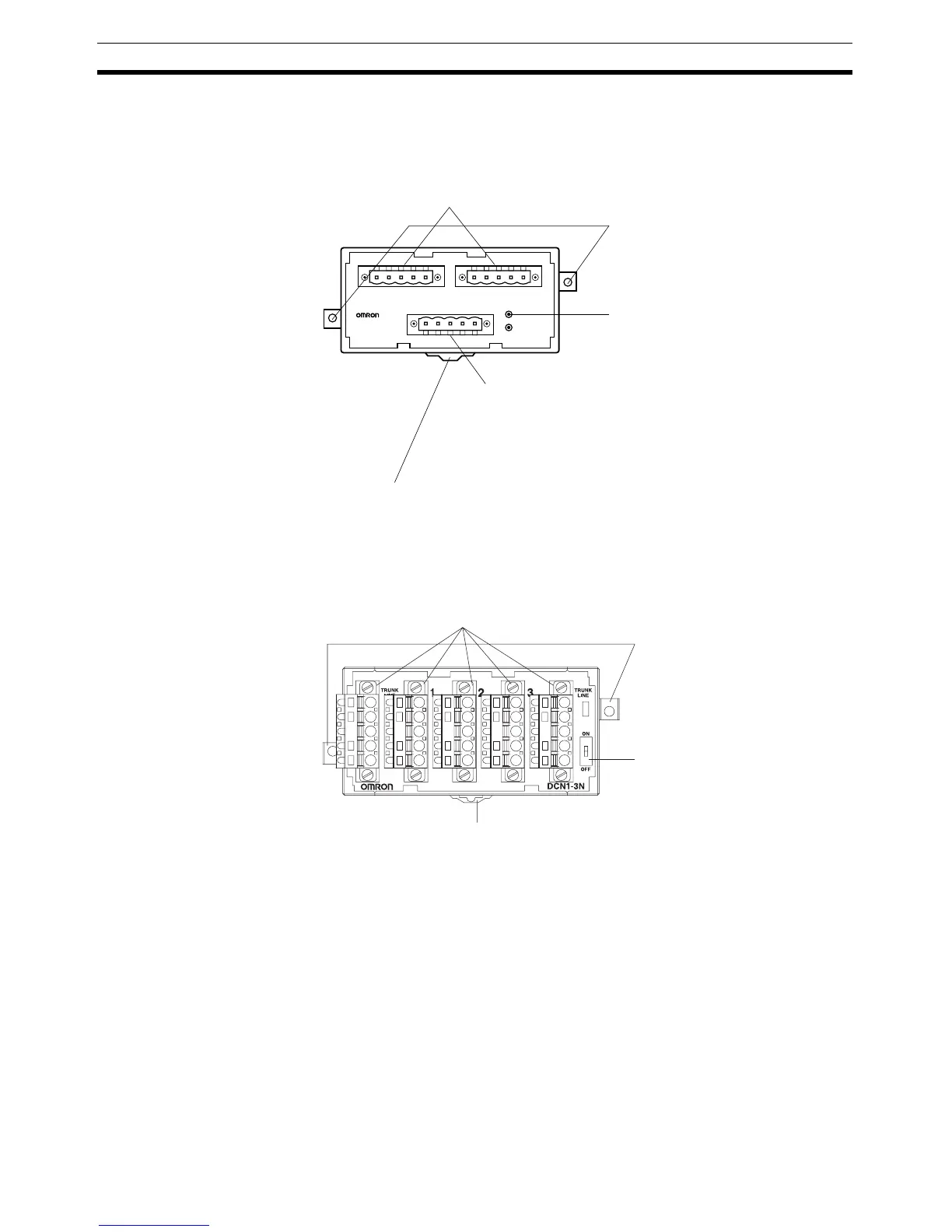

DCN1-2C and DCN1-2R T-branch Tap Components
DCN1-3NC T-branch Tap Components
DCN1-2
T-PORT TAP
Mounting screw holes
Use when screwing the T-branch
Tap to a control panel.
Terminating Resistor socket
Connect a Terminating Resistor
here if the T-branch Tap is installed
at the end of the trunk line.
Communications Connectors
Connect the network communications cable. The following connectors are provided.
DCN1-2C: XW4B-05C1-H1-D Straight Connector with attachment screws
DCN1-2R: XW4B-05C1-VIR-D Right-angle Connector with attachment screws
Communications Connector
Connect the network communications cable. The following connectors are provided.
DCN1-2C: XW4B-05C1-H1-D Straight Connector with attachment screws
DCN1-2R: XW4B-05C1-VIR-D Right-angle Connector with attachment screws
DIN Track mounting hook
Use when mounting the Tap to a DIN Track.
A trunk line is usually connected here.
Mounting screw holes
Use when screwing the T-branch
Tap to a control panel.
DIN Track mounting hooks
Use when mounting the Tap to a DIN Track.
A trunk line is usually connected here.
Communications Connectors
Connect the network communications cable. The following connectors are provided.
XW4G-05C1-H1-D Straight Clamp Connector with attachment screws
ON/OFF switch
