Cables, Connectors, and Related Devices Section 2-3
Components and
their Functions

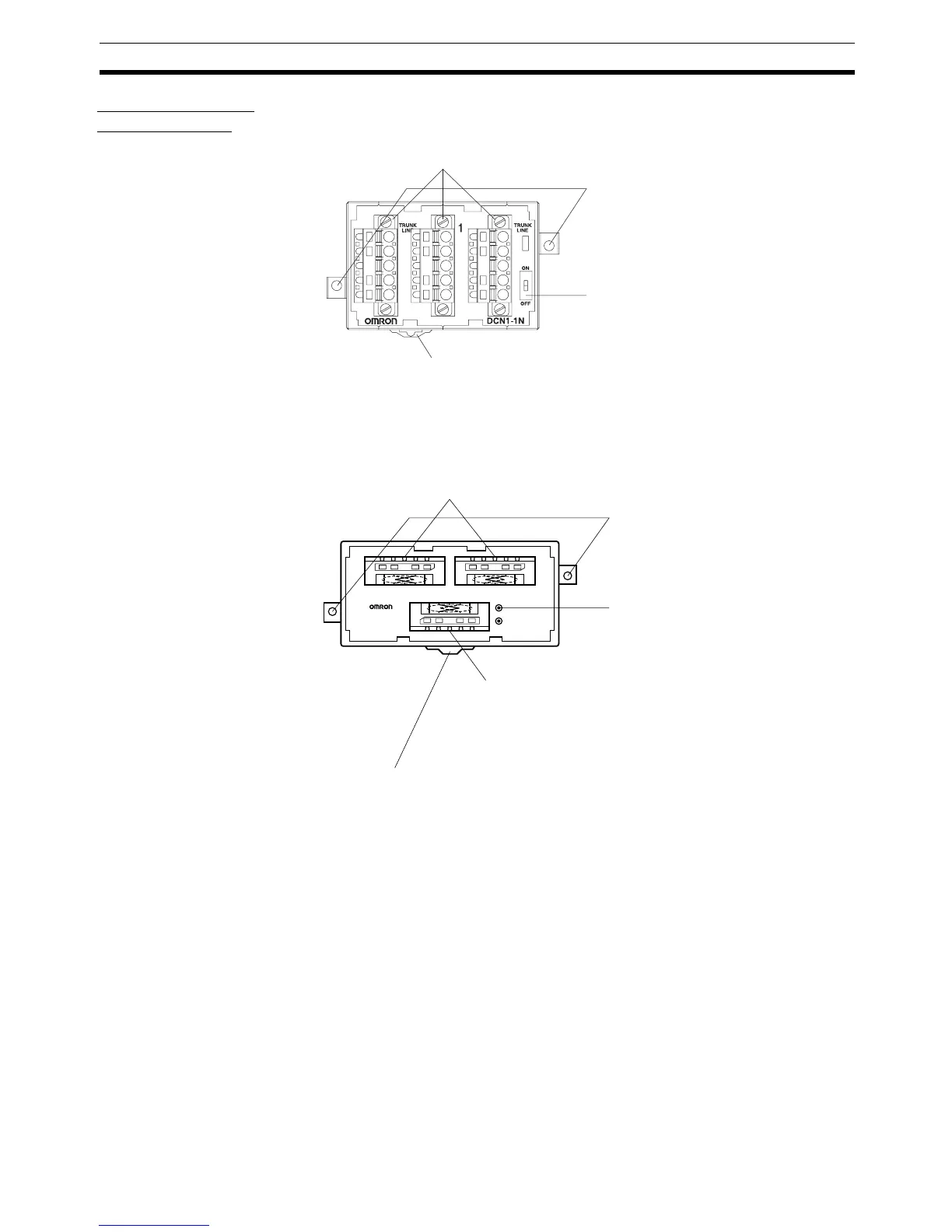

DCN1-1NC T-branch Tap Components
DCN1-1C T-branch Tap Components
Mounting screw holes
Use when screwing the T-branch
Tap to a control panel.
ON/OFF switch
DIN Track mounting hook
Use when mounting the Tap to a DIN Track.
A trunk line is usually connected here.
Communications Connectors
Connect the network communications cable to the provided
XW4G-05C1-H1-D Connectors.
DCN1-1C
T-PORT TAP
Mounting screw holes
Use when screwing the T-branch
Tap to a control panel.
Terminating Resistor socket
Connect a Terminating Resistor
here if the T-branch Tap is installed
at the end of the trunk line.
Communications Connectors
Connect the network communications cable to the provided XW4B-
05C1-H1-D Straight Connectors.
Communications Connector
Connect the network communications cable to the provided
XW4B-05C1-H1-D Straight Connector.
DIN Track mounting hook
Use when mounting the Tap to a DIN Track.
A trunk line is usually connected here.
