Wiring Methods Section 2-4
■ Attaching the Cable

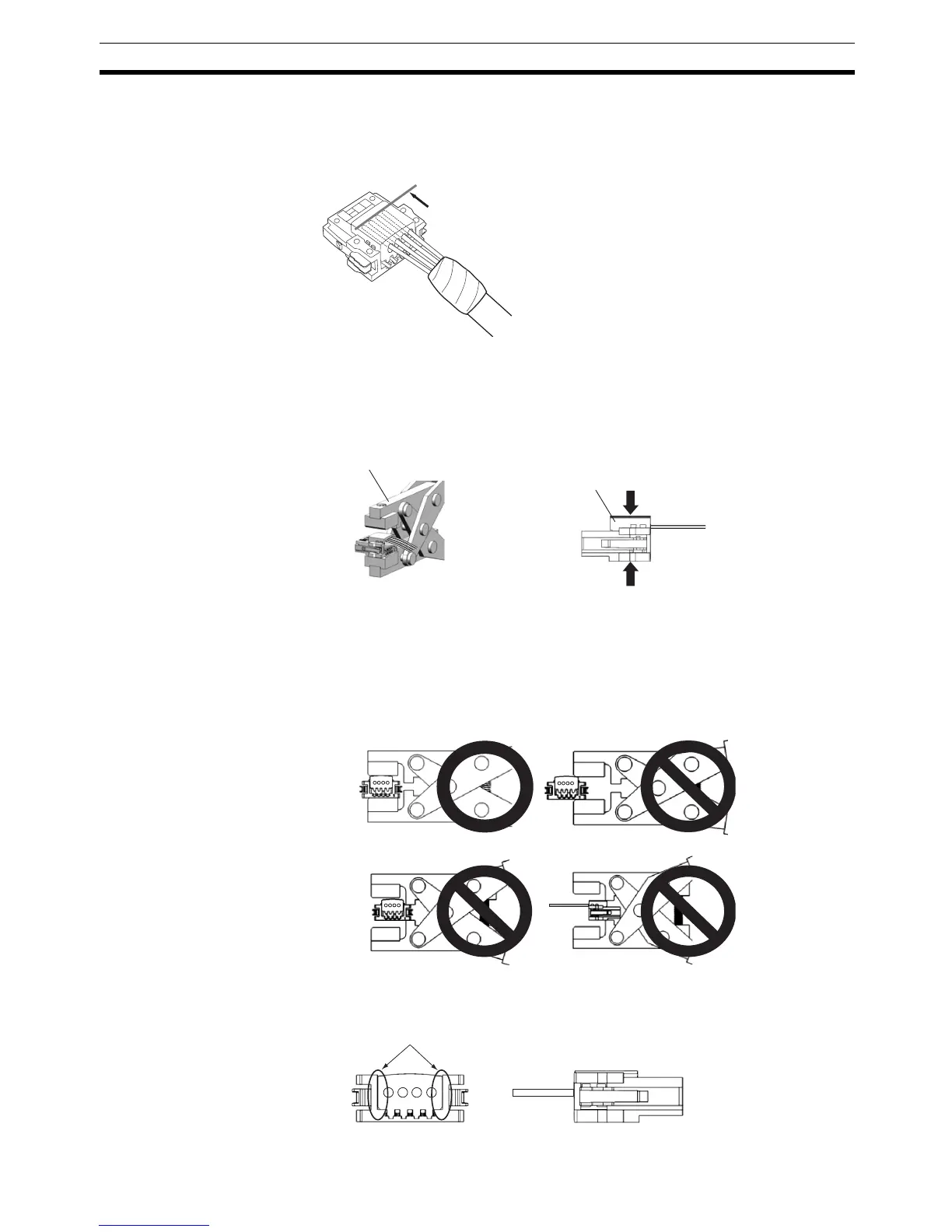

Align the indications on the cable identification label with the cable colors and
insert the cable. The cover is translucent, so it is possible to confirm that the
cable has been inserted all the way in.
■ Pressure-welding the Connector
Use the DWT-A01 Pliers to pressure-weld the connector.
1,2,3... 1. As shown in the following diagram, align the center of the connector cover
(see arrows) with the center of the pressure-welding block on the Pliers.
2. Squeeze firmly on the Pliers until the lock on the connector clicks into
place.
Note (1) Do not pressure-weld the connector cover at the edges.
(2) Do not pressure-weld the connector cover at the back of the pressure-
welding block.
(3) Set the connector in the correct orientation.
3. After attaching the cable, confirm that it is properly pressure-welded as
shown below.
Confirm that the cable has
been inserted up to this position.
Connector cover
Pliers
NG
NGNG
OK
Be sure there are no gaps here.
