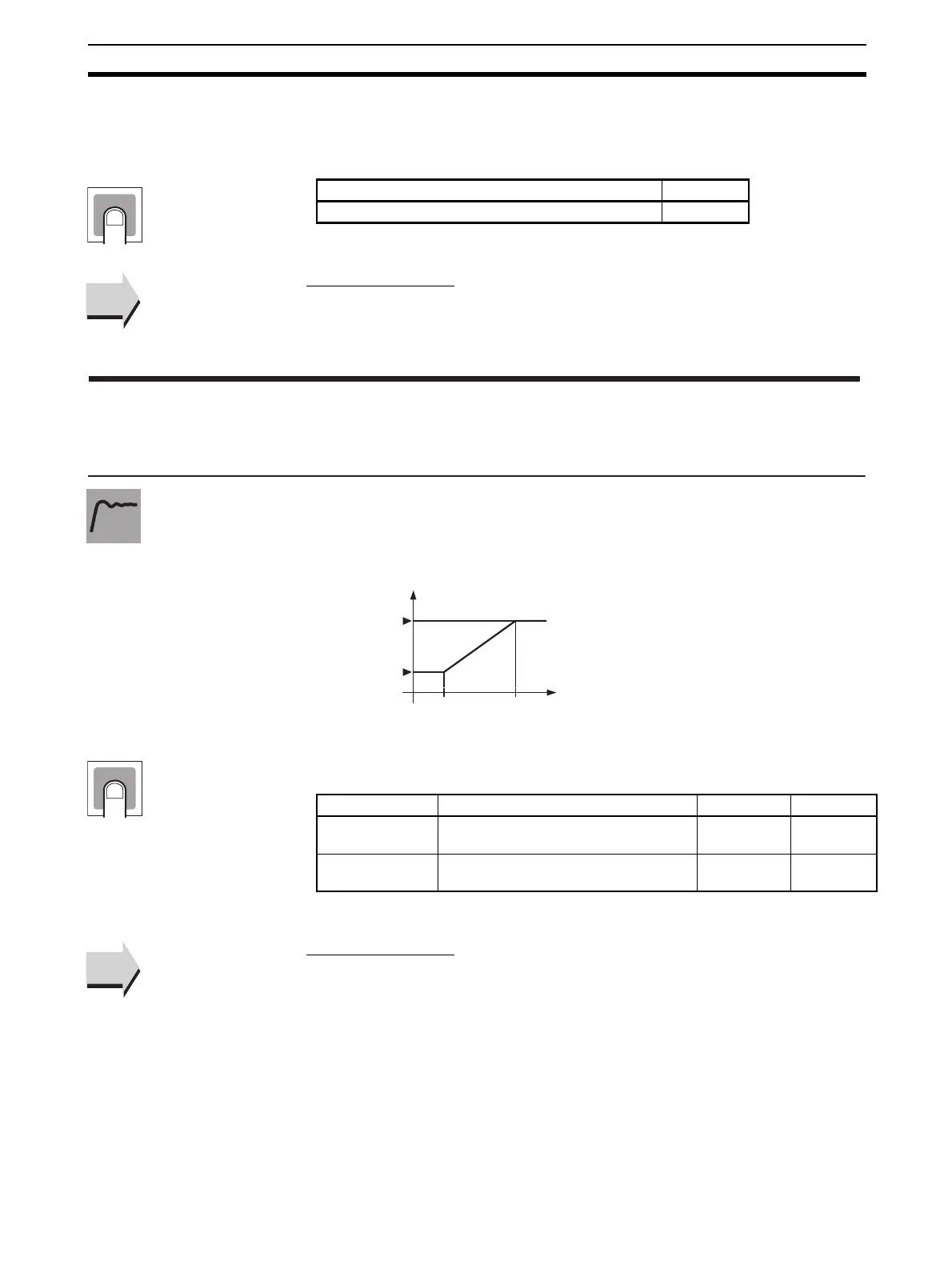

267
Advanced Function Setting Level Section 5-10
• When this parameter is set to OFF, only the local SP can be used. In addi-
tion, the Set Point During SP Ramp parameter is enabled only when the
SP ramp function is set to ON.
■ Related Parameters
Set point during SP ramp (operation level): Page 180
SP mode (adjustment level): Page 193
• This parameter sets the upper and lower limits for a remote SP. An upper
limit of 20 mA and a lower limit of 4 mA are supported. Set the upper limit
in the Remote SP Upper Limit parameter, and set the lower limit in the
Remote SP Lower limit parameter.
• When the SP Upper Limit or SP Lower Limit parameter setting is
changed, the remote SP upper or lower limit is forcibly changed to that
setting.
■ Related Parameters
Decimal point (initial setting level): Page 226
SP upper limit, SP lower limit (initial setting level): Page 227
Remote SP enable (advanced function setting level): Page 266
Setting range Default
ON: Enabled, OFF: Disabled off
Setting
See
See
rsph
rspl
Remote SP Upper Limit
Remote SP Lower Limit
The ST parameter must be set to
OFF. The Remote SP Enable param-
eter must be set to ON.
Setting Setting range Unit Default
Remote SP
Upper Limit
SP lower limit to SP upper limit EU 1300.0
Remote SP
Lower Limit
SP lower limit to SP upper limit EU −200.0
Function
4
RSP
20
Upper limit
Lower limit
Input (mA)
Setting
See
See
