4.1 Setting levels and key operation
4-3
Settings Required
for Basic Control
*
To move to the special function setting level, set "Initial setting protect" in the "Protect level" to "0".
In following each levels, control is stopped, input initial settings, control
initial setting, control initial settings 2, alarm settings, display
adjustment, communication settings, advanced function settings,
expansion control settings and calibration.
Note that control will stop on all channels if you move to any of these
levels.

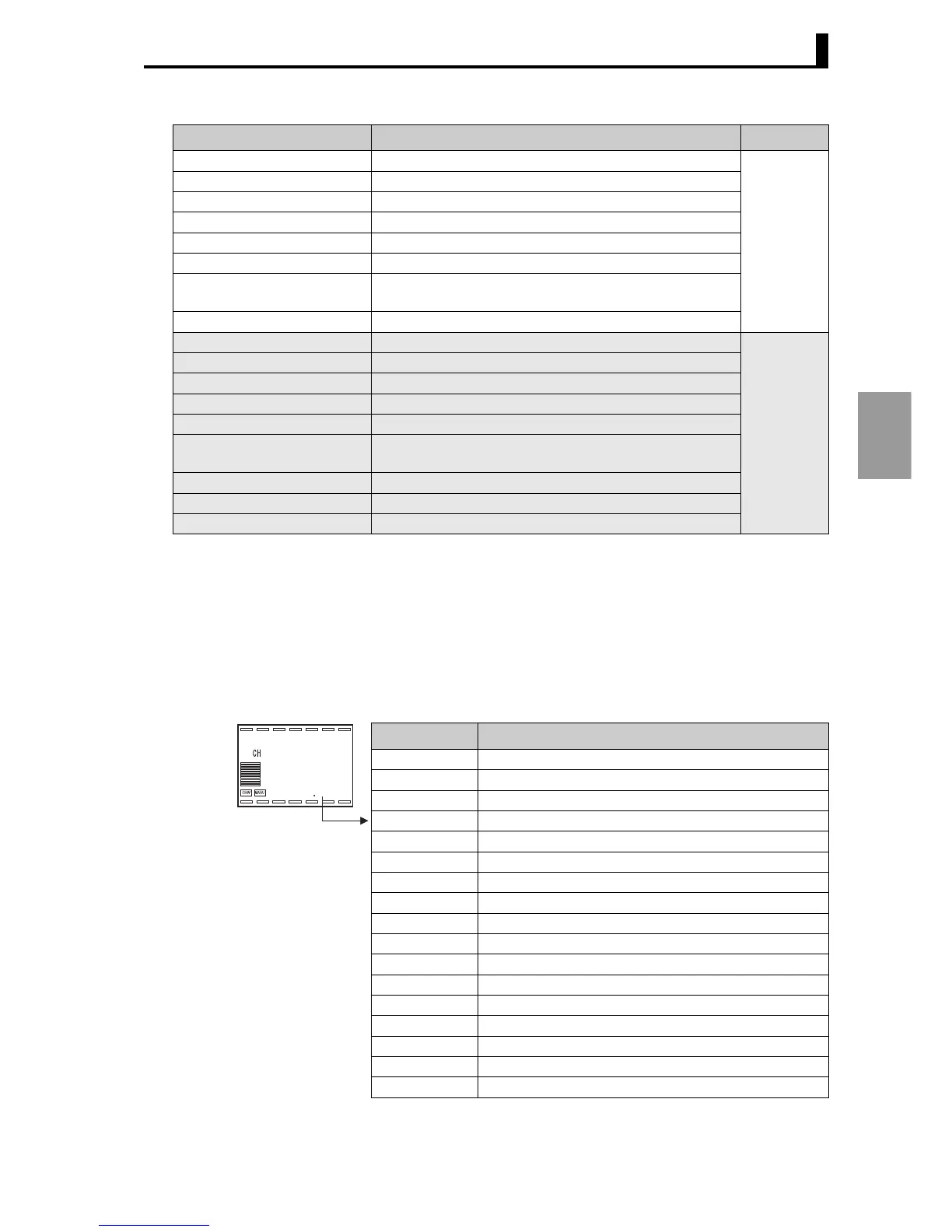

Display 3 shows the current level. The characters and the corre-
sponding levels are as follows:
* May appear depending on the selected setting data.
Level Description Operation
Protect level Settings to prevent accidental key input.
During
operation
RUN level Basic display and settings for operation.
Adjustment level Option settings and control adjustment.
Adjustment 2 level
Settings that can be adjusted during operation function control.
Bank setting level SP, PID Set No., and alarm settings of each bank.
PID setting level P,I,D values of each PID set and limit settings.
Approximation setting level
Broken-line approximation and straight-line approximation
settings.
Monitor item level Monitor display of set values.
Input initial setting level Initial settings related to input.
When
operation is
stopped
Control initial setting level Initial settings for the output type and control mode.
Control initial setting 2 level Initial settings for operation functions.
Alarm setting level Alarm type and output settings.
Display adjustment level Display adjustment settings.
Communications setting level Communications speed, communication data length, and
other communication settings.
Special function setting level Initialization of settings and PF key settings.
Expansion control setting level Advanced control settings and position proportional settings.
Calibration level Calibration by the user.
Display 3 Level
l.prt Protect level
Off * RUN level
l.adj Adjustment level
l.ad2 Adjustment 2 level
l.bnk Bank setting level
l.pid PID setting level
l.tec Approximation setting level (Technical)
l.mon Monitor item level
l.0 Input initial setting level
l.1 Control initial setting level
l.2 Control initial setting 2 level
l.3 Alarm setting level
l.4 Display adjustment level
l.5 Communications setting level
l.adf Special function setting level
l.exc Expansion control setting level
l.cal Calibration
lprt
