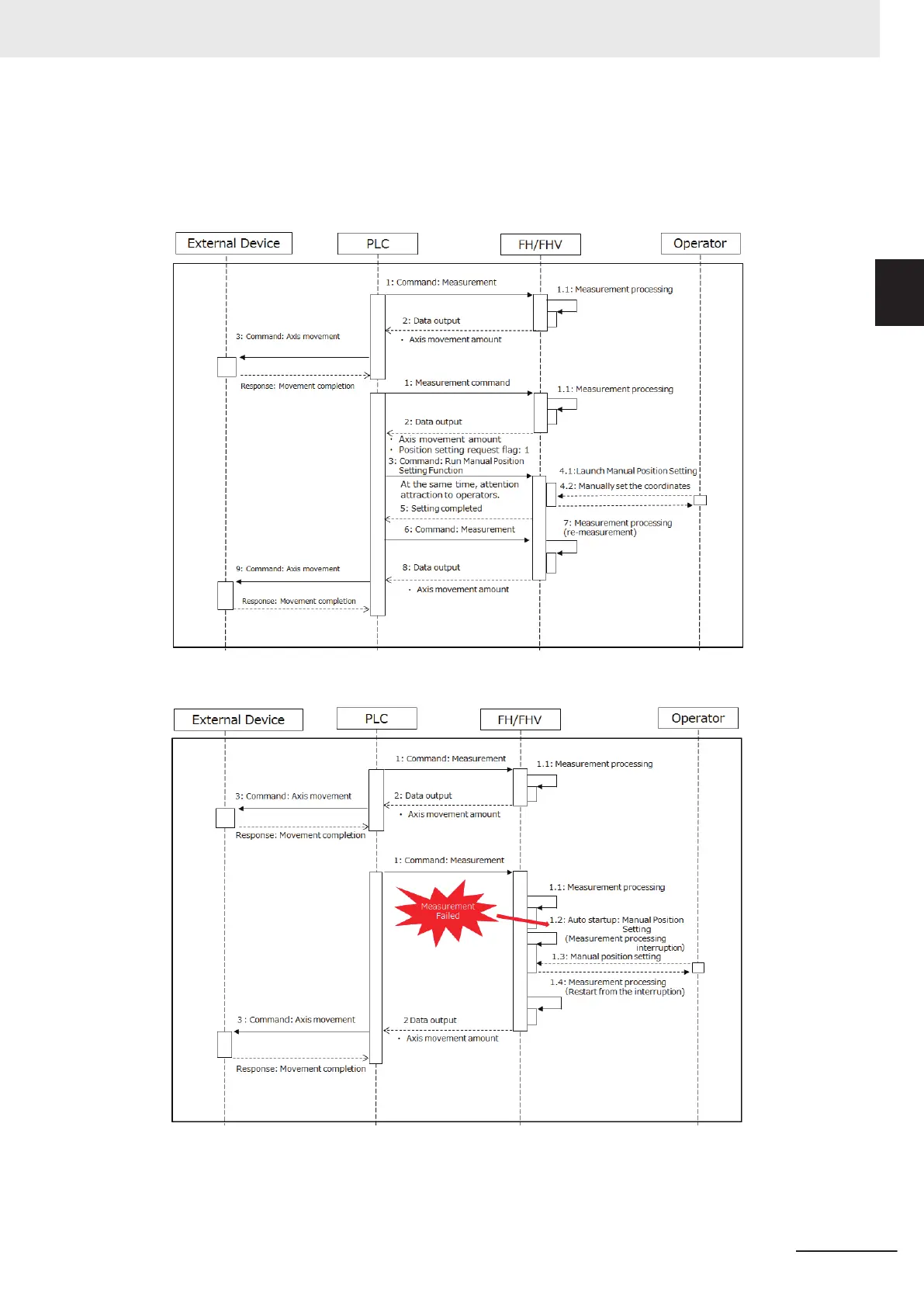

When a judgement result of a processing unit such as Search became NG, the Manual Position
Setting processing unit opens the Manual Position Setting screen.
Communication command startup:
Auto startup during measurement:
For details about processing items related to the alignment, refer to the Manual Position Setting in
the Vision System FH/FHV Series Processing Item Function Reference Manual (Cat. No. Z365).
10 Advanced Usage
10 - 65
FH/FHV Series Vision System User’s Manual (Z365-E1)
10-9 Positioning workpieces for stage and
robot applications [Alignment Function]
10
10-9-4 Alignment

Omron fh series Specifications

General

Type	Machine Vision System
Series	FH Series
Power Supply	24 VDC
Storage Temperature	-20 to 60°C
Humidity	35 to 85% RH (non-condensing)
Image Sensor	CMOS
Processing Speed	High-speed processing
Connectivity	Ethernet
I/O	Digital I/O
Operating System	Embedded OS
I/O Ports	Ethernet, USB
