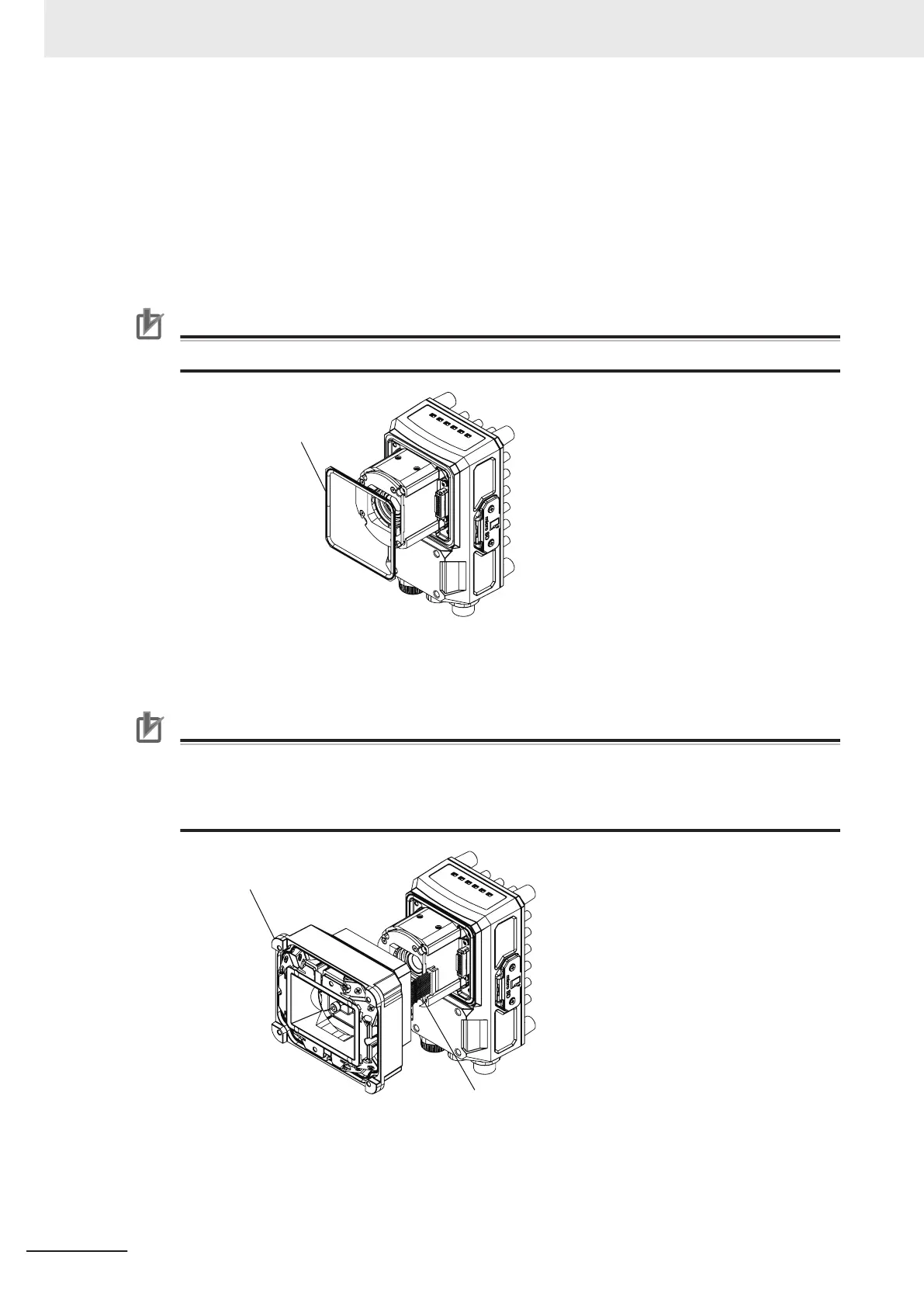

Please attach the Lighting module following these procedures.
1 Attach the lens module
For more detailed information on the lens module, please refer to 5-1-3 Lens Module / IP40
Configuration on page 5 - 5.
2
Attach the waterproof packing (small).
Precautions for Correct Use
Place the waterproof packing along the groove of the smart camera, being careful not to twist it.
Waterproof packing (small)
3 Connect the harness of the lighting module to the (white) lighting module connector of the
Smart Camera.
Precautions for Correct Use
• Do not pull or stress the harness when attaching.
• Hold the connector part of the harness and attach/detach the lighting module.
• Take care that the harness does not catch on, or get pinched between any parts of the case
when assembling.
5 Installation
5 - 12
FHV Series Smart Camera Setup Manual (Z408-E1)
