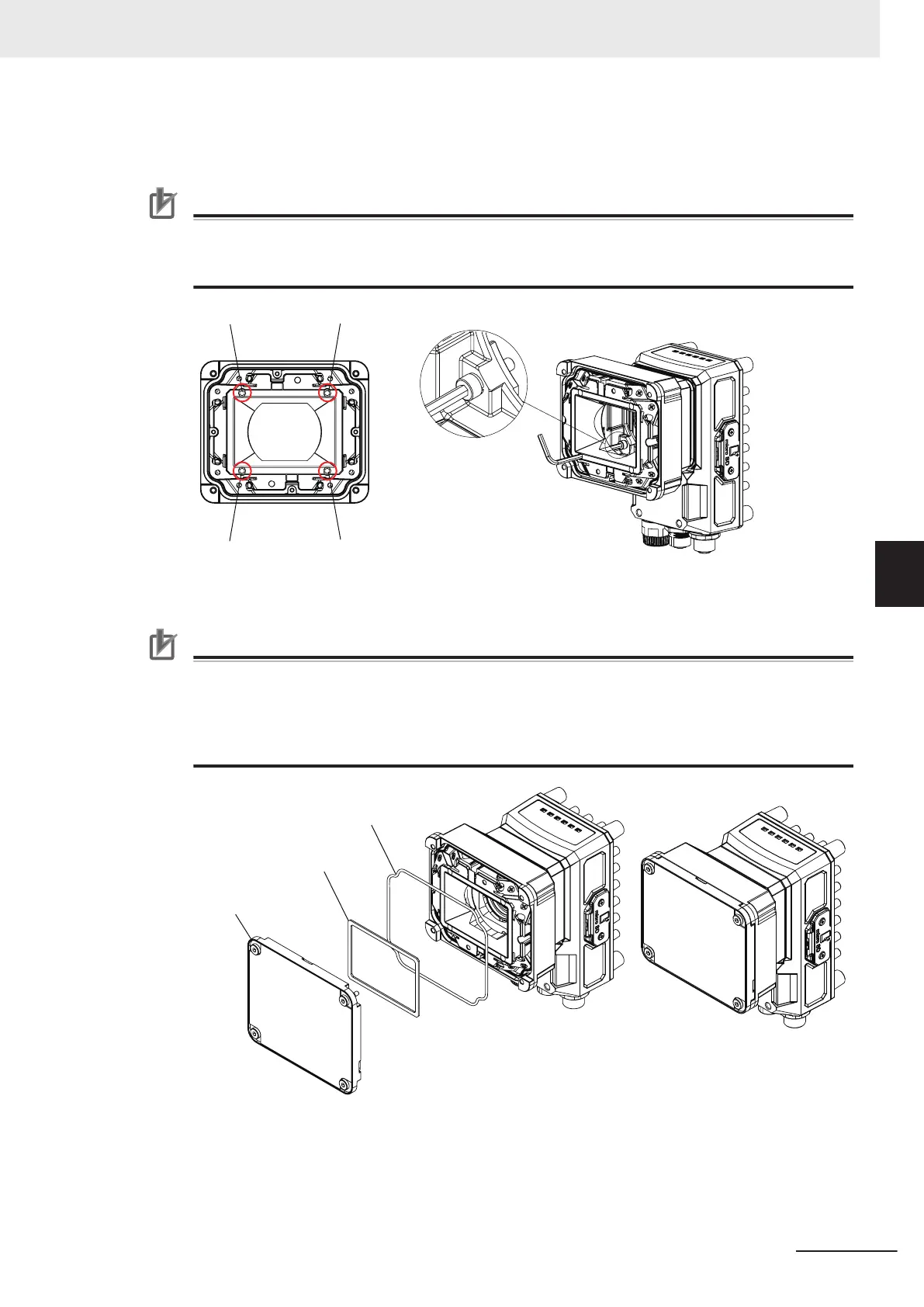

4 Attach the Lighting Module
Precautions for Correct Use
• Pass the included hexagon wrench through the holes and tighten the screws in order of 1 to 4
as shown in the figure below.
• Recommended tightening torque (M3 Hexagon socket screw Hole size 2.5 mm): 0.54 N・m
5
Attach waterproof packing (large), light shielding sheet, lighting cover in that order.
Precautions for Correct Use
• Place the waterproof packing and light shielding sheet along the groove, being careful not to
twist them.
• Pass the included hexagon wrench through the holes and tighten the screws in order of 1 to 4
as shown in the figure below.
• Recommended tightening torque (M2.5 Hexagon socket screw Hole size 2.5 mm): 0.3 N・m
Waterproof packing (large)
Light shielding sheet
Lighting cover
①
④
③
②
5 Installation
5 - 13
FHV Series Smart Camera Setup Manual (Z408-E1)
5-1 Assembling Equipment
5
5-1-5 Lens Module / Internal Lighting / IP67 Configuration
To Next Page
