When Installing Using the Mounting Fixture on the Front

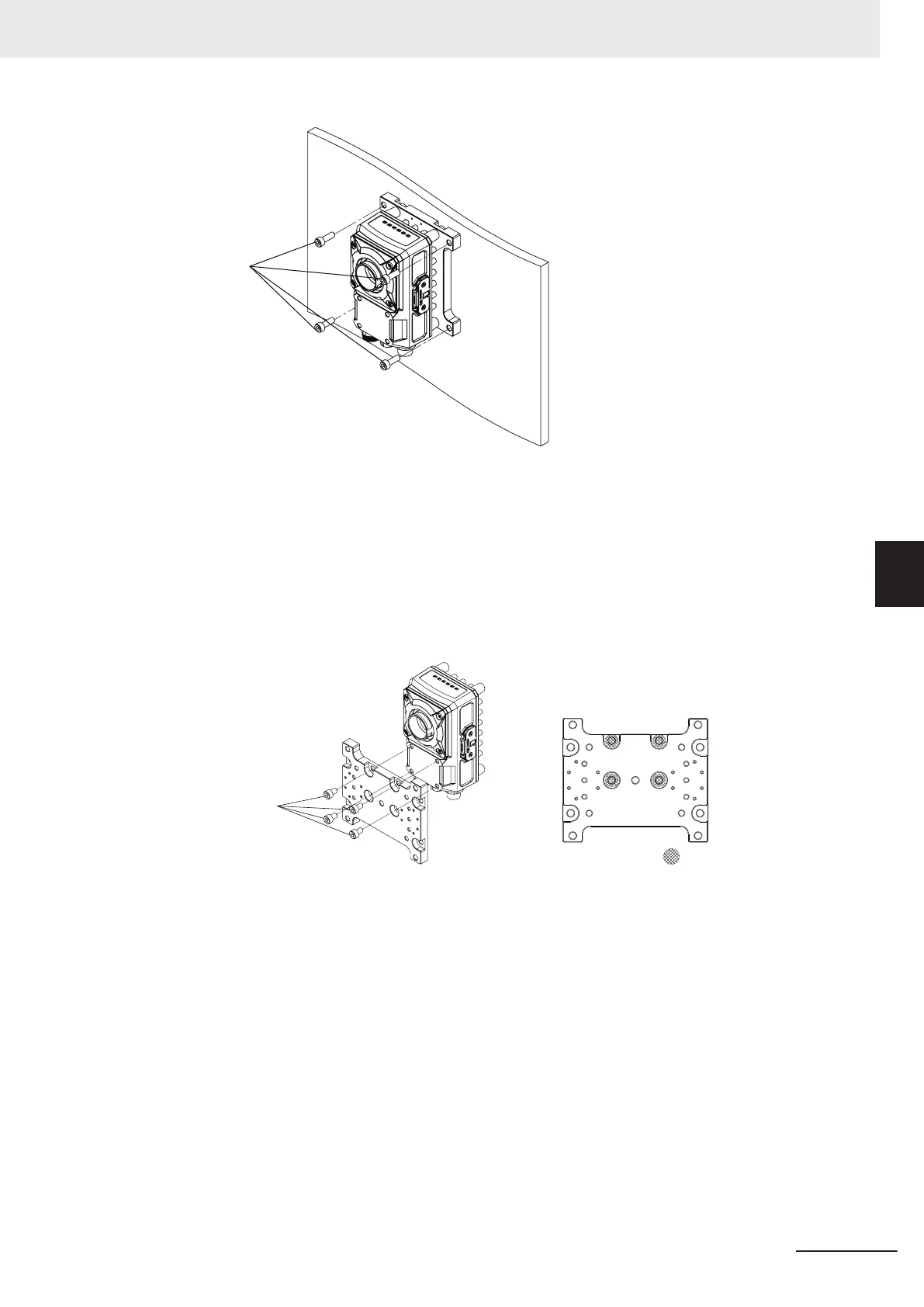

1 Attach the mounting fixture (FHV-XMT-7) to the front.
Recommended mounting screw size: M5 x 8 mm
Tightening torque: 2.3 N・m
* M5 screws for mounting are not included with this product. Please provide or purchase sepa-
rately.
Recommendation:
M5×8mm screws
2
Attach the mounting fixture to the desired position for mounting.
* M5 screws for mounting are not included with this product. Please provide or purchase sepa-
rately.
5 Installation
5 - 17
FHV Series Smart Camera Setup Manual (Z408-E1)
