Omron J1000 User Manual

n
IP20/Open-Chassis Drives

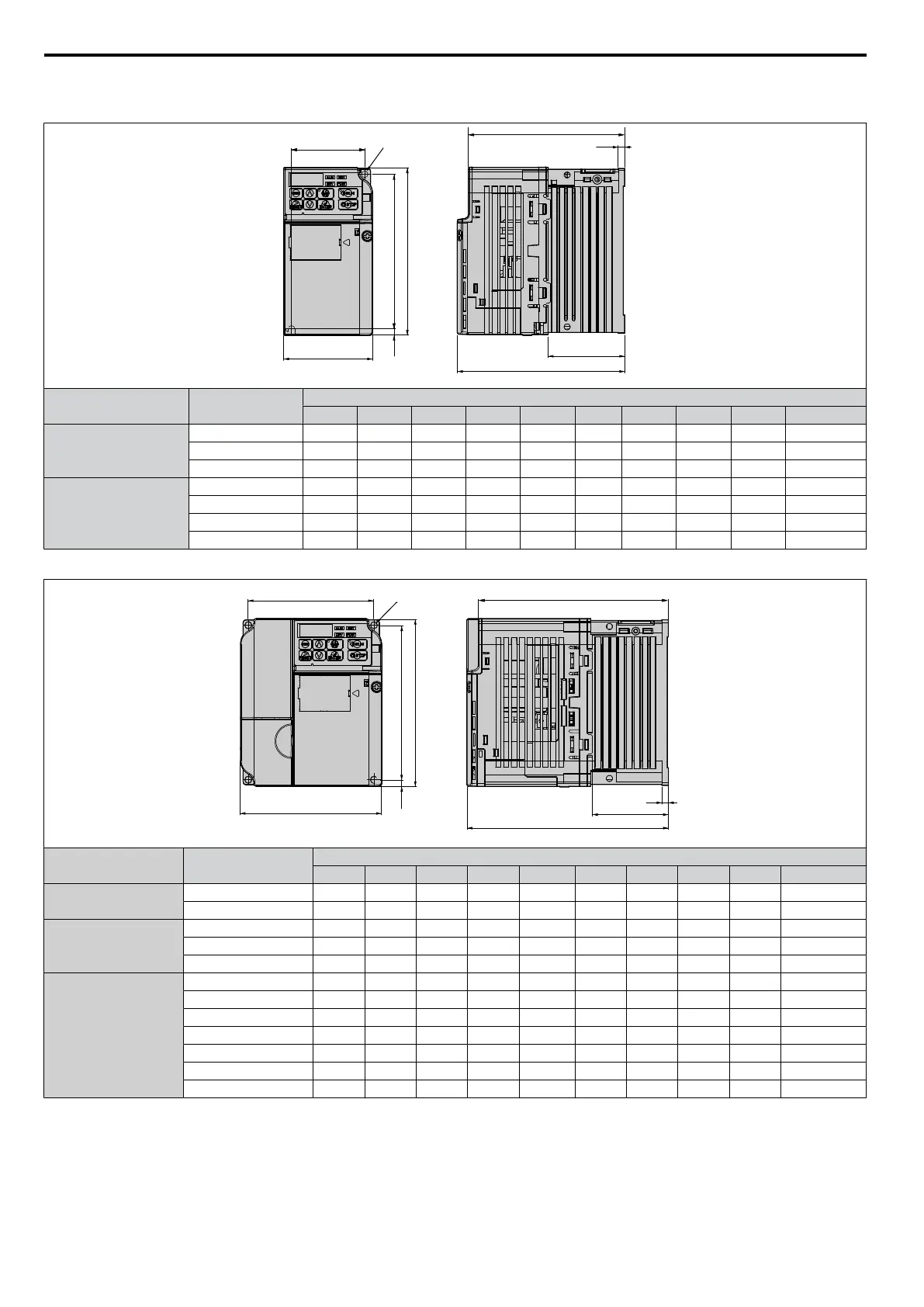

Table 2.2 IP20/Open-Chassis (without an EMC filter)
t1
D1
D
W
H1H2
H
2-M4
W1
D2
Voltage Class
Drive Model
JZA
Dimensions (mm)
W H D W1 H1 H2 D1 D2 t1 Weight (kg)
Single-Phase
200 V Class
B0P1B 68 128 76 56 118 5 6.5 67.5 3 0.6
B0P2B 68 128 76 56 118 5 6.5 67.5 3 0.6
B0P4B 68 128 118 56 118 5 38.5 109.5 5 1.0
Three-Phase
200 V Class
20P1B 68 128 76 56 118 5 6.5 67.5 3 0.6
20P2B 68 128 76 56 118 5 6.5 67.5 3 0.6
20P4B 68 128 108 56 118 5 38.5 99.5 5 0.9
20P7B 68 128 128 56 118 5 58.5 119.5 5 1.1
Table 2.3 IP20/Open-Chassis (without an EMC filter)
t1
D
D1
4-M4
H
W1
W
H2 H1
D2
Voltage Class
Drive Model
JZA
Dimensions (mm)
W H D W1 H1 H2 D1 D2 t1 Weight (kg)
Single-Phase
200 V Class
B0P7B 108 128 137.5 96 118 5 58 129 5 1.7
B1P5B 108 128 154 96 118 5 58 145.5 5 1.8
Three-Phase
200 V Class
21P5B 108 128 129 96 118 5 58 120.5 5 1.7
22P2B 108 128 137.5 96 118 5 58 129 5 1.7
24P0B 140 128 143 128 118 5 65 134.5 5 2.4
Three-Phase
400 V Class
40P2B 108 128 81 96 118 5 10 72.5 5 1.0
40P4B 108 128 99 96 118 5 28 90.5 5 1.2
40P7B 108 128 137.5 96 118 5 58 129 5 1.7
41P5B 108 128 154 96 118 5 58 145.5 5 1.7
42P2B 108 128 154 96 118 5 58 145.5 5 1.7
43P0B 108 128 154 96 118 5 58 145.5 5 1.7
44P0B 140 128 143 128 118 5 65 134.5 5 2.4
2.2 Mechanical Installation
28
SIEP C710606 33A OYMC AC Drive – J1000 User Manual
