Chapter 3: Setup
All mounting methods
Install the power cord and turn the power switch to ON. The power switch is next to the
power plug. The blue power LED indicator should light.
Docking Station Contact Adjustment
The contacts on the docking station have five height settings. The station ships with the height
in the middle setting, which should be correct in most cases. The height can be changed by tilt-
ing the station enough to see the bottom of the base, making the adjustment accessible.
NOTE:Squeeze and keep the docking station’s foot against the base to make this
adjustment easier.
Adjust the height of the contacts by using the pull-knob on the bottom of the dock. The height
changes by 4 mm (0.15 inch) for each notch. See the following figure.

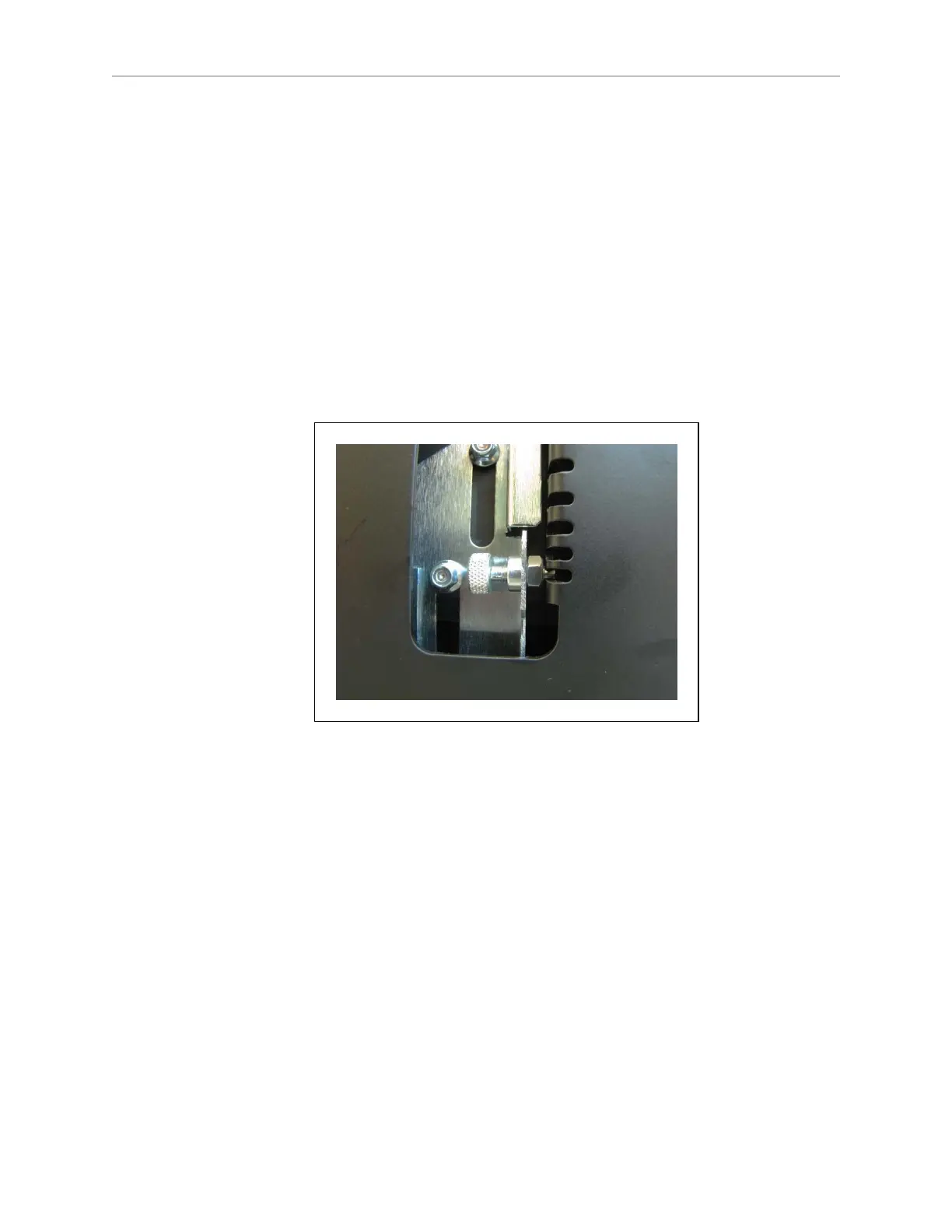

Figure 3-21. Docking Station Contact Adjusting Pull-Knob
Set the height of the contacts so that the roller is high enough to stay in contact with the plat-
form as it is docking, but low enough so that the bi-level of the roller guides the paddle under
the platform.
11970-000 Rev H1 LD Platform OEM User's Guide 43
