4-4 System Menu Details
4
4-4-5 NJ/NX/NY Troubleshooter (Project System Menu)

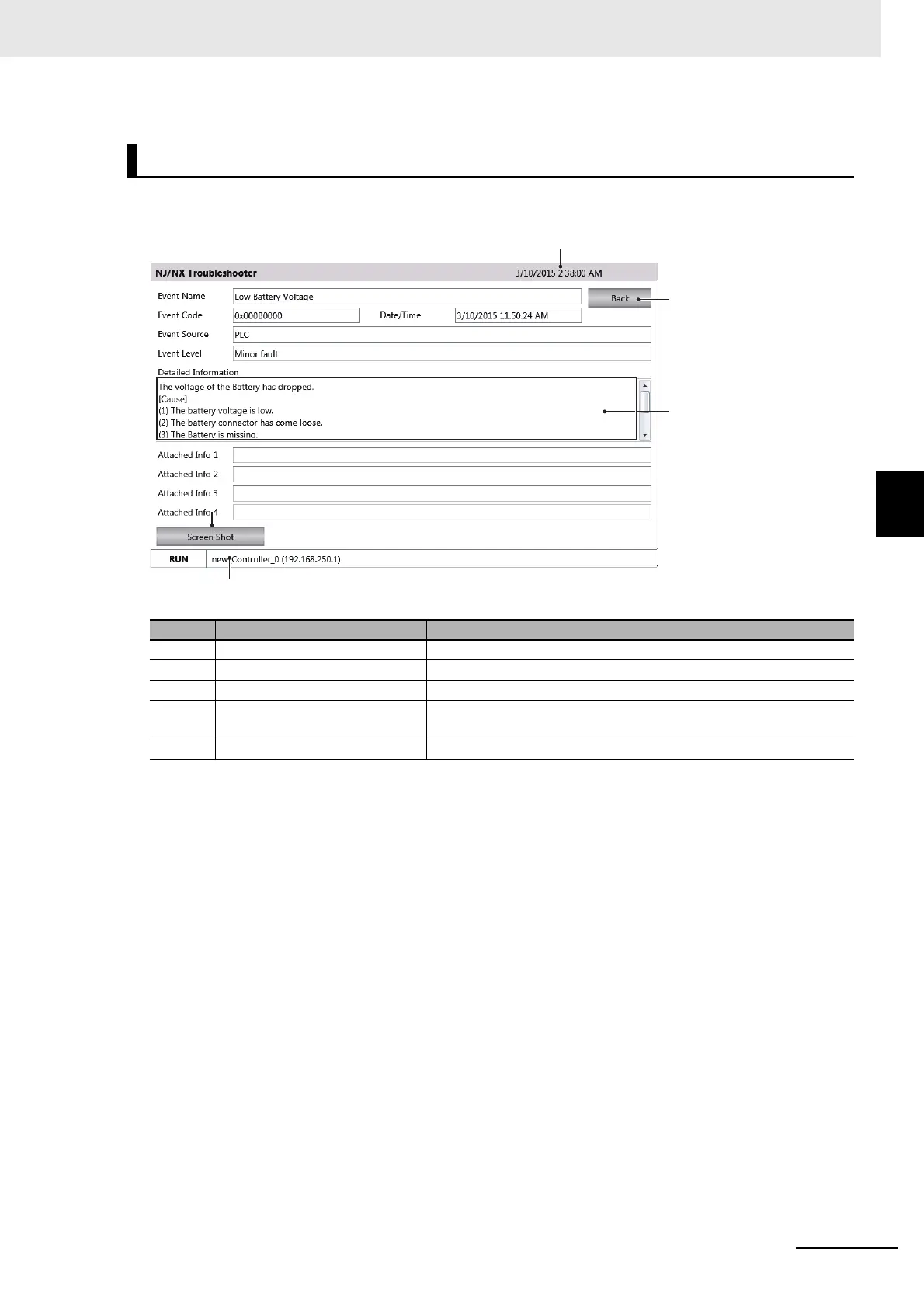

This screen displays detailed information on errors or events.
Details Screen
No. Item Description
1 Tittle Bar Displays the current date of the NA.
2 Back Button Closes the Details Screen.
3 Details Button Displays errors and events in detail.
4 Screen Shot Button Captures an image of the displayed screen and stores it in USB
memory or an SD Memory Card in PNG format.
5 Status Bar Displays information on the Controller that is currently selected.
