4 System Program
4 - 16
NA-series Programmable Terminal Hardware User’s Manual (V117)

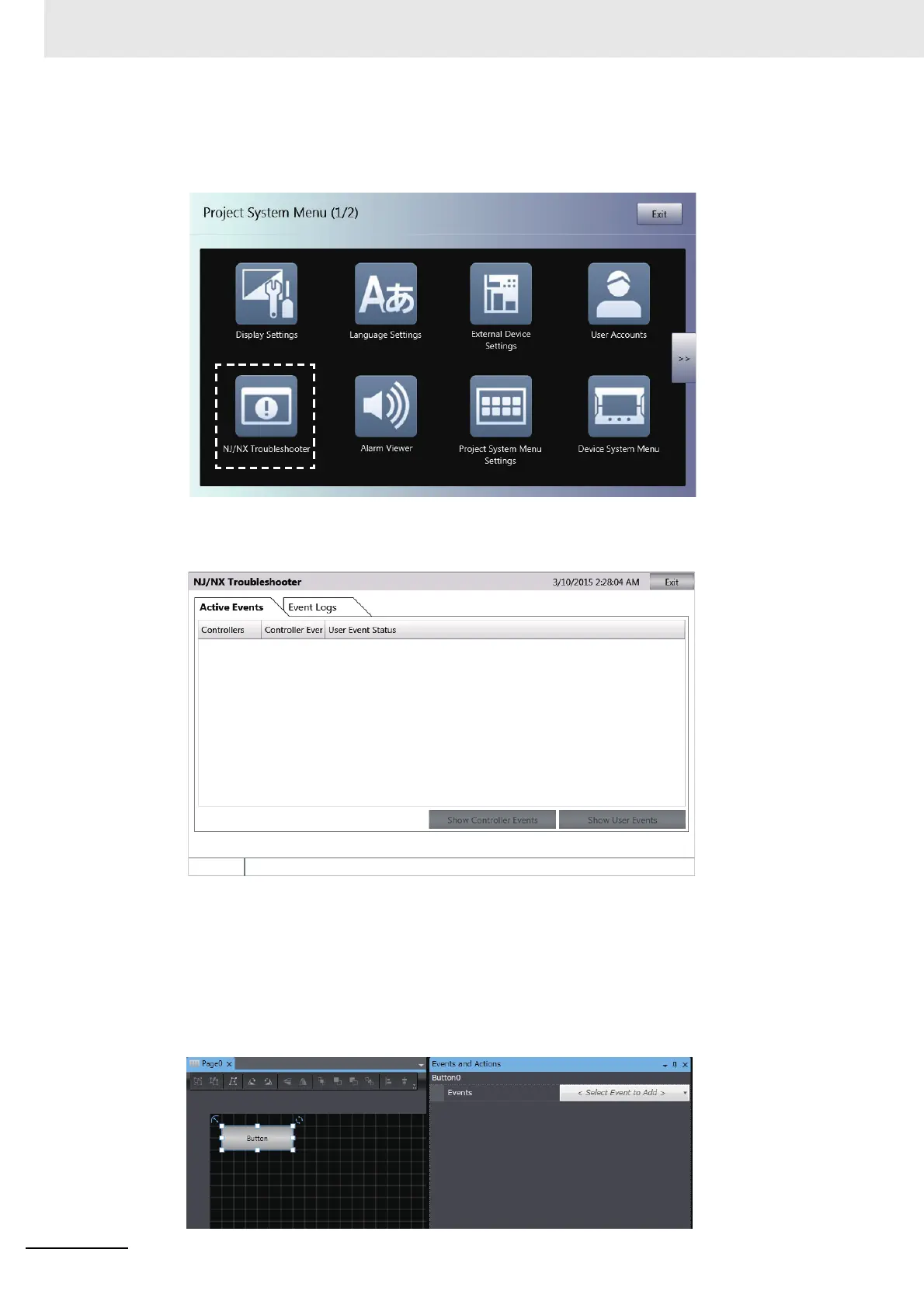

Starting from the System Menu
1 Display the System Menu and select NJ/NX/NY Troubleshooter.
2 The NJ/NX/NY Troubleshooter will be started.
Starting from a User Screen
The required settings must be made from the Sysmac Studio.
The following example shows how to execute the Troubleshooter by using an object event.
In this example, settings are performed to execute the Troubleshooter when a Button object is
clicked.
1 Place a Button object on the screen and display Events and Actions.
To Next Page
