2-4SectionFixed Displays
102

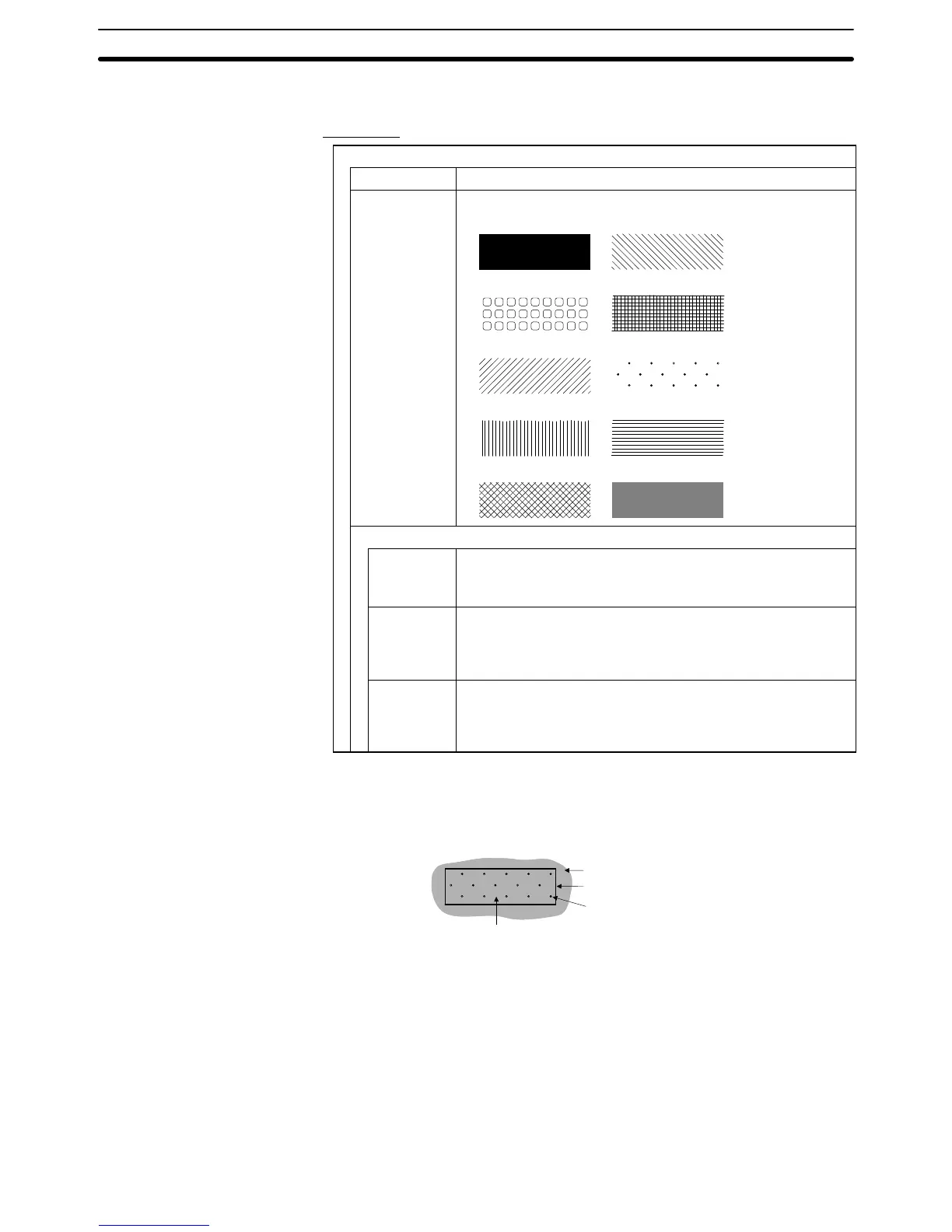

The relationship between the tiling properties and tiling method is indicated be-
low.
Properties
General
Position Coordinates where tiling starts
Pattern
Tiling pattern (Pattern and color, page 102)
Uniform Slant right
Box Crosshatch
Slant left Grid
Stripe Border
Diamond Halftone
Color
Foreground Display color of the tiling pattern (Colors other than black and
white are available with the NT31C and NT631C only.)
Black/Blue/Red/Magenta/Green/Cyan/Yellow/White
Background Background color of the tiling pattern (Colors other than black
and white are available with the NT31C and NT631C only.)
Black/Blue/Red/Magenta/Green/Cyan/Yellow/White/
Transparent
Border Color of the line enclosing the tiled area (Colors other than
black and white are available with the NT31C and NT631C
only.)
Black/Blue/Red/Magenta/Green/Cyan/Yellow/White
Pattern and Color
The relationship between pattern and color is illustrated below, taking the Grid
pattern as an example.
Screen background color
Border color of tiling pattern
Foreground color of tiling pattern
Background color of tiling pattern
When Transparent is specified, the color and
graphic underneath the tiling pattern are visible.
Tiling has no input function.
Tiling has no output function.
Tiling has no data processing function.
Relationship with Other Elements
• Tiling can also be included in library data displays with other graphics.
• Circles, arcs, sectors, polylines, polygons, rectangles (page 90) and marks
(page 103) overlap each other in accordance with the order in which they were
Display Functions
Input Functions
Output Functions
Processing Functions
