1-3 System Configuration
This section shows the configuration of a system that uses an NT21,
NT31/NT31C and NT631/NT631C. For details on product models, refer to the
Setup Manual.
1-3-1 Peripheral Devices That Can Be Connected
NT21

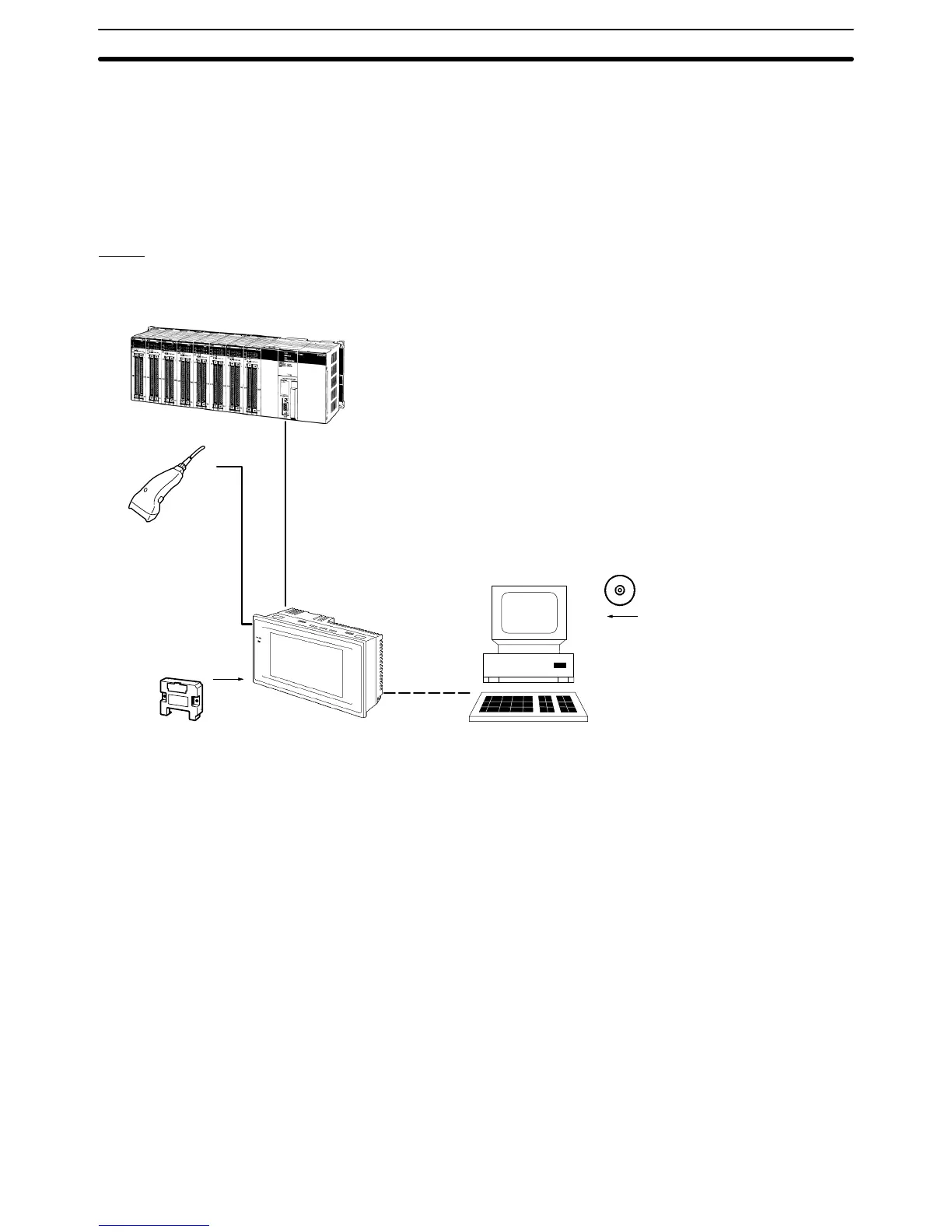

The following peripheral devices can be connected to an NT21.
Host
Controls the NT21 as required while controlling machines and monitoring the
production line.
Host Link: CS/CJ-series PCs, C-series PCs, CVM1/CV-series PCs, SRM1
Can be connected to CPU Units, Host Link Units, and SRM1. However,
connection is not possible to some models of CPU Unit and SRM1.
NT Link: CS/CJ-series PCs, CPM1, CQM1, C200HS, C200HX/HG/HE(-ZE),
CVM1/CV-series PCs, SRM1
Can be connected to CPU Units and SRM1. However, connection is not
possible to some models.
Memory Link: Can be connected to a personal computer, FA computer, etc.
Bar code reader
Bar codes can be read
as character strings.
RS-232C cable
(15 m max.)
An RS-422A/485 cable
(500 m max.) can be
connected through an
RS-232C/RS-422A Link
Adapter.
Personal computer
Running Windows 95/98/NT
NT Support Tool
Used to create screens for the NT21
at the personal computer and transmit
them to the NT21, and to make NT21
settings.
System installer
Used to change the system
program of the NT21.
Memory Unit
Can store screen data
and system program to
be read out
automatically at startup.
NT21
Displays production line monitoring and
commands to the operation site, and
notifies the switch ON/OFF status and
numeric value inputs to the host.
When a 1:N NT Link is being used, up to
8 PTs can be connected to a single PC.
• Bar Code Reader
V520-RH21-6 (made by OMRON)
• Memory Unit
NT-MF261 (made by OMRON)
• NT Support Tool
NT-series Support Tool Version 4. for Windows (Made by OMRON)
• NT-ZJCAT1-EV4 (CD-ROM version for IBM PC/AT and compatible com-
puters)
• System Installer
System Installer (made by OMRON)
The System Installer is supplied as a standard accessory with the NT Sup-
port Tool (NT-ZJCAT1-EV4).
