1-3SectionSystem Configuration
23
Reference: The following optional devices are available.
Reflection-suppressing Protective Sheets (5) NT20S-KBA04
Chemical-resistant cover NT20S-KBA01
Battery C500-BAT08

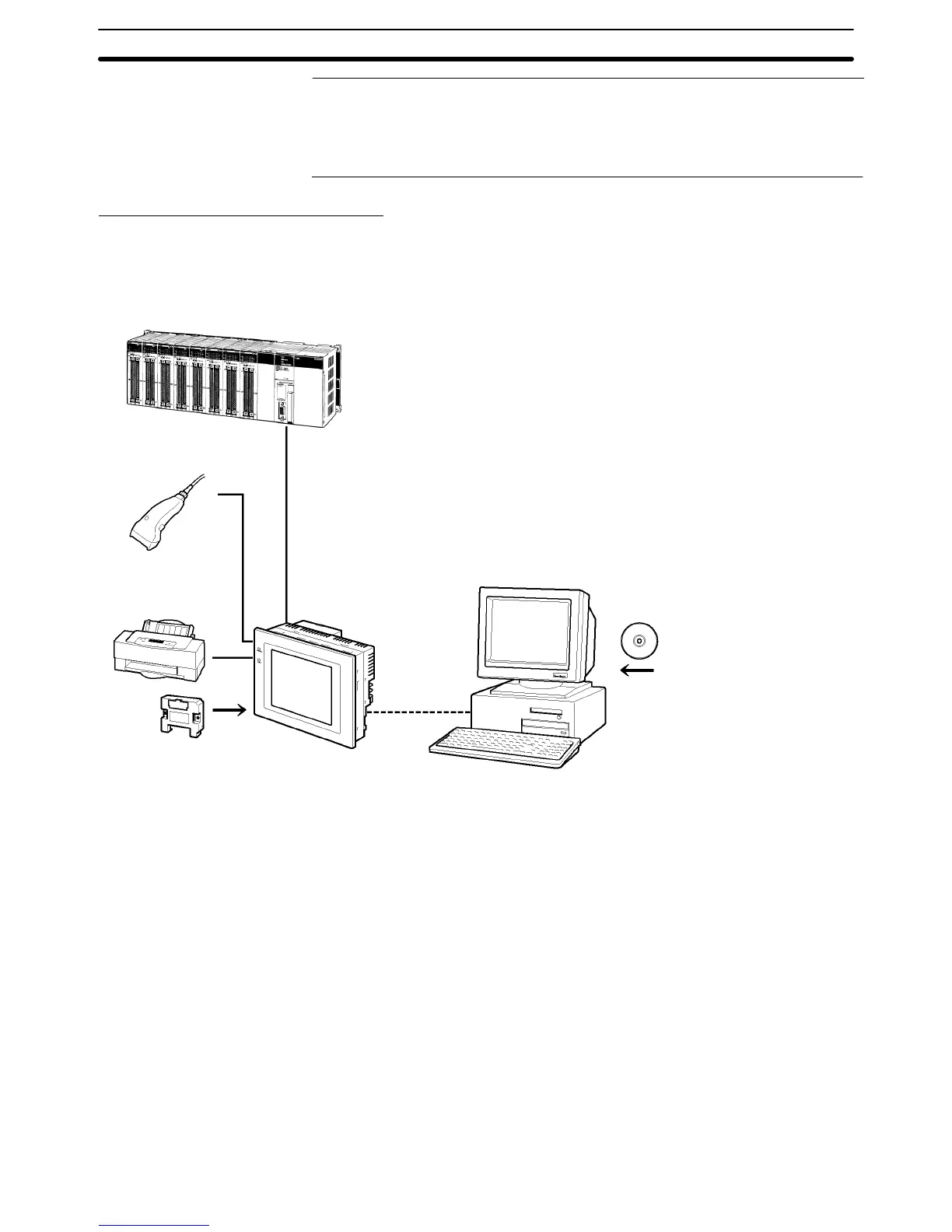

NT31/NT31C and NT631/NT631C
The following peripheral devices can be connected to the NT31/NT31C and
NT631/NT631C.
Bar code reader
Bar codes can be read
as character strings.
RS-232C cable
(max. 15 m)
or
RS-422A/485 cable
(max. 500 m)
Printer
For printing out the currently
displayed NT31/NT31C or
NT631/NT631C screen.
Personal computer
Running Windows 95/98/NT
Support Tool
Used to create screens for the PT at
the personal computer and transmit
them to the PT, and to make PT
settings.
System installer
Used to change the system
program of the NT31/NT31C
or NT631/NT631C.
Memory Unit
Can store screen
data and system
program to be read
out automatically at
startup.
NT31/NT31C or NT631/NT631C
Displays production line monitoring and instructions to the
operation site, and notifies the switch ON/OFF status and
numeric value inputs to the host.
When a 1:N NT Link is being used, up to 8 PTs can be
connected to a single PC.
Host
Controls the NT31/NT31C or NT631/NT631C as required while controlling
machines and monitoring the production line.
Host Link: CS/CJ-series PCs, C-series PCs, CVM1/CV-series PCs, SRM1
Can be connected to CPU Units, Host Link Units, and SRM1. However,
connection is not possible to some models of CPU Unit and SRM1.
NT Link: CS/CJ-series PCs, CPM1, CQM1, C200HS, C200HX/HG/HE(-Z)E,
CVM1/CV-series PCs, SRM1
Can be connected to CPU Units and SRM1. However, connection is not
possible to some models.
Memory Link
Can be connected to a personal computer, FA computer, etc.
Other companies’ PCs can also be connected.
• Bar code reader
V520-RH21-6 (made by OMRON)
• Recommended printers
It is also possible to use printers that can emulate an NEC PC-PR201H (us-
ing the NEC PC-PR201PL control protocol), and printers that comply with
one of the following EPSON control standards: ESC/P 24-J83C (color), or
ESC/P 24-J82 (monochrome).
If using an HP printer, make sure that it conforms to the PCL5 standard.
• Memory Unit
NT-MF261 (made by OMRON)
• Support Tool
NT-series Support Tool Version 4. for Windows (made by OMRON)
• NT-ZJCAT1-EV4 (CD-ROM version for IBM PC/AT and compatible com-
puters)
