2-7SectionTouch Switches
121

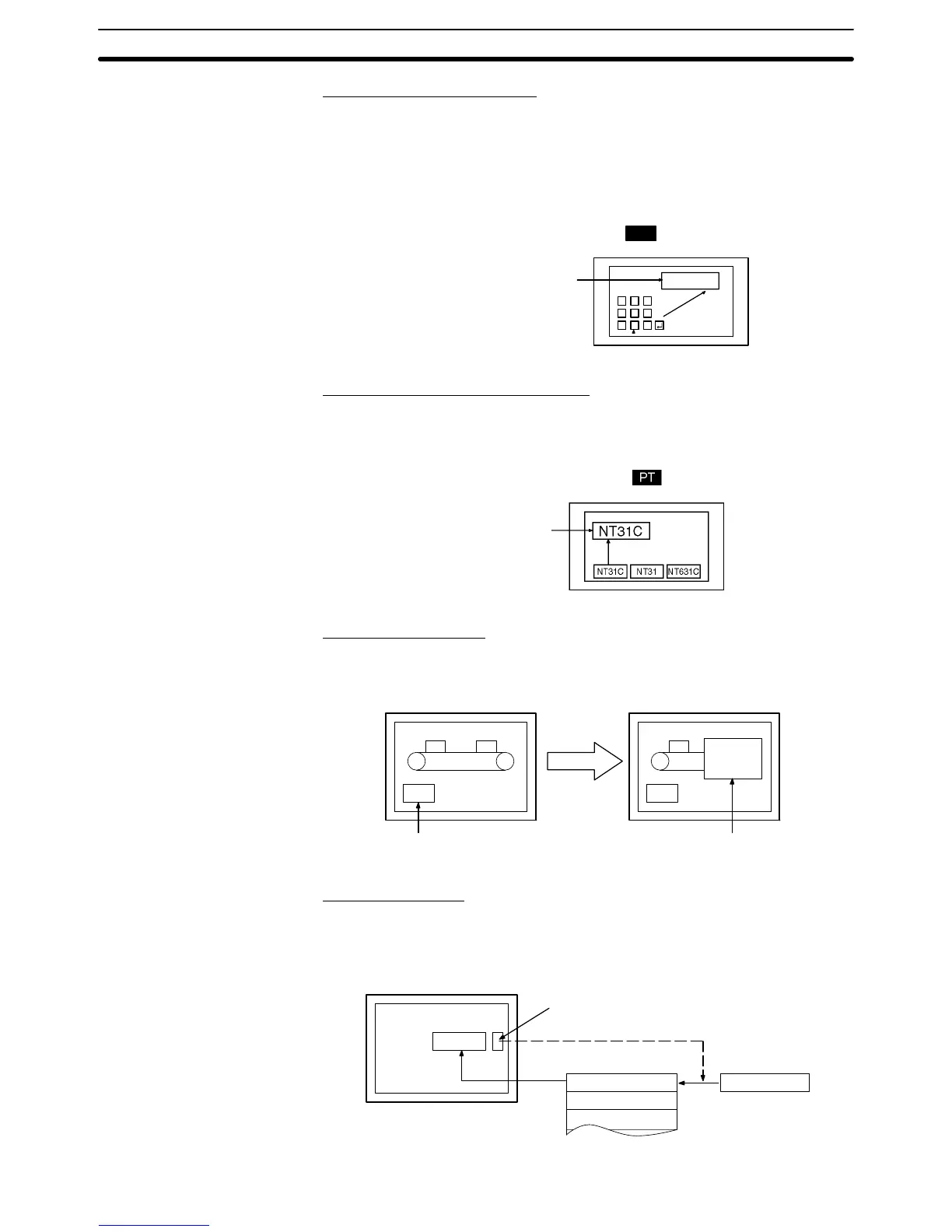

Input Key – Control Function
When used in combination with the numeral/character string setting function,
this function allows numeric values to be input into input fields. It is also possible
to execute special functions such as checking and clearing input numeric values
and character strings, and moving the cursor and moving between input fields
with the arrow keys.
Input
1 2 3
4 5 6
7 8 9
1 2 3 4
PT
Numeral setting input field
Character String Input Key Function
When this function is used in combination with the character string setting func-
tion, a label can be input into an input field by pressing a touch switch.
Character string
setting input field
Input
Window Key Function
This function makes it possible to open and close windows by pressing touch
switches.
Touch switch opens
HELP HELP
Press here
Control
Conveyor
Copy Key Function
This functions allows data or constants in memory table entries to be copied to
other memory table entries or into numeral setting/character string input fields,
by pressing a touch switch.
Copy
00000
00000
12345
67890
00000
Copy key
Display
Numeral memory table entry
Code
