2-14SectionRecipes
217
The following additional functions are also provided.
• You can specify whether to permit editing of parameters on the PT using the
Support Tool (in one record unit).
• You can set the interlock function (i.e., prohibiting operation) for all touch
switches.
• After writing to the host, you can send a writing completed notification to the
host using the status notify bits (strobe operation) on the host.
Outline

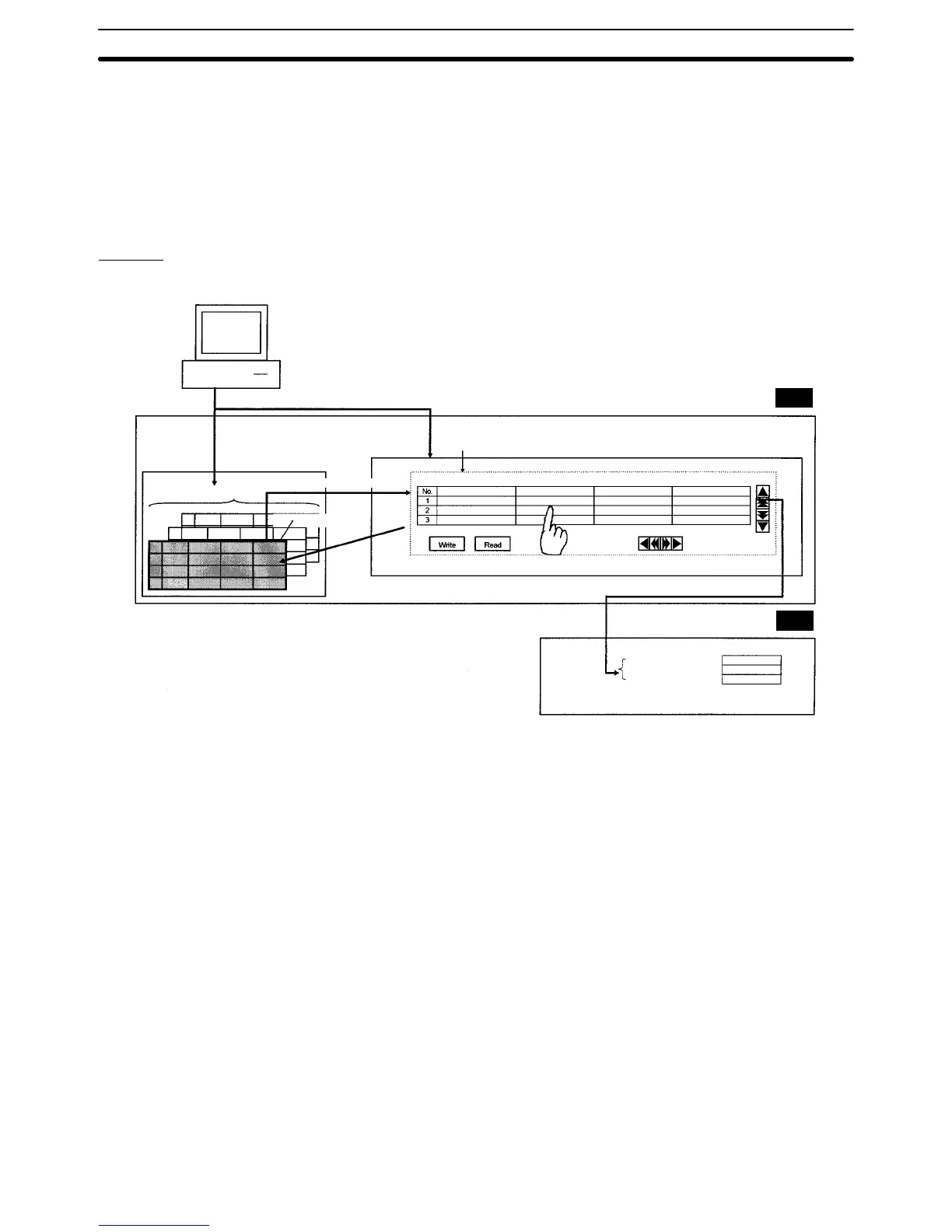

Overall Configuration
Create (1) recipe table and (2) recipe elements.
Support Tool
Transfer screen data containing registered recipe table and recipe elements.
Screen
(2) Recipe elements
(1) Recipe table
Recipe data
Edit
Display on the screen
Reading/writing in the unit of record
Note: Example for data size = 1 word
Recipe table title
Record 1 title
Record 2 title
Record 3 title
Parameter 1 Parameter 2 Parameter 3
Value
V ue
V ue
Value
Value
Value
Value
Value
Value
Memory
Parameter 1
Parameter 2
Parameter 3
Leftmost word
Leftmost word+1
Leftmost word+2
PT
PC
• Use the Support Tool to create the following two types of data: (1) Table data
(recipe table) and (2) Display and setting elements (recipe elements) that use
the recipe table.
1, 2, 3... 1. Recipe table: Multiple discrete data in table format (the data is called “recipe
data”).
2. Recipe elements: These elements display recipe data on screen, and read
and write data from/to the host. Register and use recipe elements on a
screen. Specify the recipe data to be used by its number, and arrange and
create special recipe touch switches as appropriate.
Reference: Multiple recipe elements can also share (i.e., reference and
use) the same recipe data.
• Transfer screen data to which recipe elements and recipe table are registered
from the Support Tool to the PT by application downloading.
• Recipe elements that have been registered on screen read corresponding rec-
ipe data from the PT.
• You can change recipe data parameters by performing the edit operation using
the touch switches on the PT.
• You can read and write recipe data parameters in units of host words or records
using the Read and Write touch switches on the PT.
