Omron NT21 User Manual

2-14SectionRecipes
220

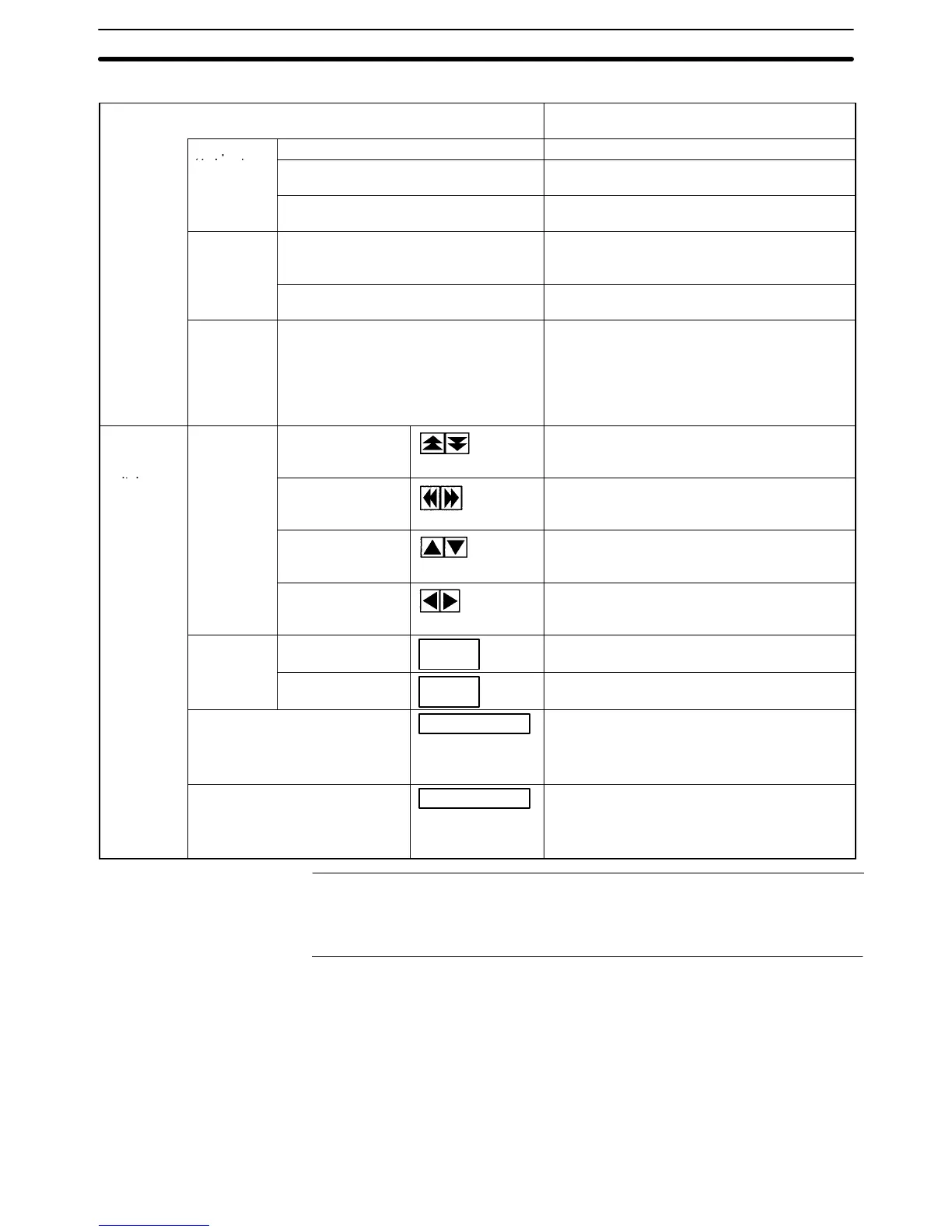

Elements Configuration Table
Table format Displays records as rows, and parameters as
columns.
Recipe data
(1 d i
Recipe data name You can attach a table name to the top left.
p
(1 data in
table
format)
Recipe data comment You can attach a comment about the table (not
displayed on PT screen).
f
ormat
)
Storage type of allocated words in host
(can be specified for each recipe data)
Select from BCD, binary, or system setting.
Name field
Record name You can display a comment for each record at
the start of the row. Has a record selecting
touch switch.
Parameter name You can display a comment for each parameter
at the start of the column.
Parameter
field
Initial values The initial values are set in the screen data sent
to the PT. Thereafter, you can change the data
by performing an operation from the PT, or
exchanging data with the host.
The column contains touch switches for editing
parameters.
Special
recipe
touch
it h
Scroll touch
switches
Page scroll touch
switches for
records
Take the number of records displayed to be 1
page, and then scroll 1 page up or down at a
time.
switches
Page scroll touch
switches for
parameters
Take number of parameters displayed to be 1
page, and then scroll 1 page sideways at a
time.
Line scroll touch
switches for
records
Scroll 1 record up or down.
Line scroll touch
switches for
parameters
Scroll 1 parameter sideways.
Read and
Write touch
it h
Write touch switch
Write
Writes record data selected using the record
selecting touch switches to the host.
switches
Read touch switch
Read
Reads the record data selected using the record
selecting touch switches from the host.
Record selecting touch switches
Record n name
Touch switch for the record name field.
Use to select the target record when reading
and writing from/to the host by touch switch
operation.
Parameter editing touch switch
Value
Touch switch in the parameter field.
Press this touch switch to enable input in the
parameter field. You can also open a window
specified for inputting values at the same time.
Reference: You can also select not to display parameters in units of recipe data, using recipe
element settings in the Support Tool.
You can also select not to display serial numbers to the left of record names, us-
ing Support Tool settings.
