4-4
Section
Memory Link Online T
ransfer Function
400

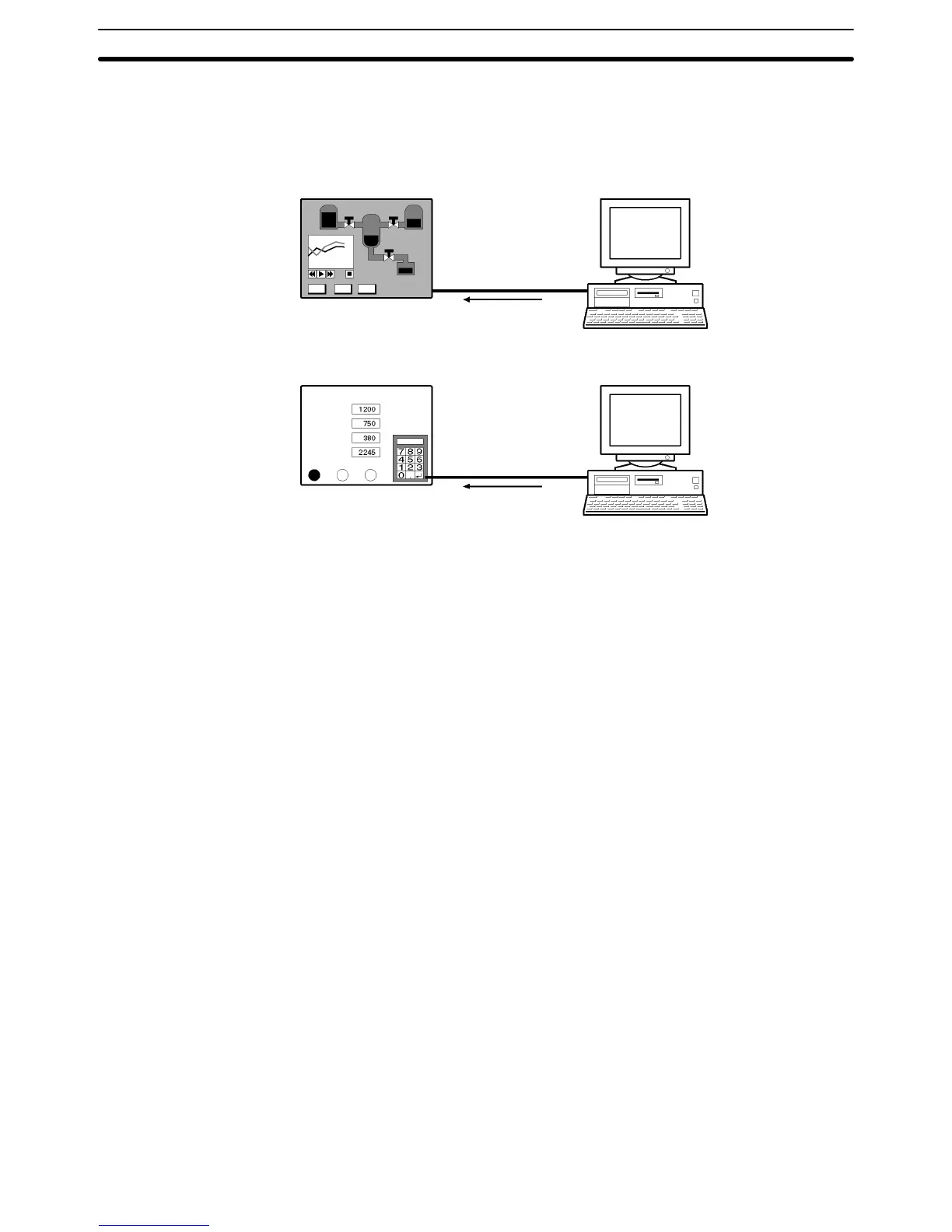

The PT’s screen data can be changed at the scheduled times each day to dis-
play the regular operating screen or maintenance screen.
6 PM Screen Change
b)
Start regular
operation with
memory link.
a)
T
ransfer regular
operating screen data.
PT
Host
b)
Start operation
with maintenance
screen data.
a)
T
ransfer maintenance
screen data.
PT
Host
8 AM Screen Change
MENU
SET
MON.
T
ank A
T
ank B
T
ank C
T
ank D
Bulb A
Bulb B
Bulb C
MAINTENANCE
2. Automatically Switch
PT Screen Data at
Certain Times
414
416
