Omron NX-AD series User Manual

6 Analog Input Units
6 - 22
NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)
Additional Information

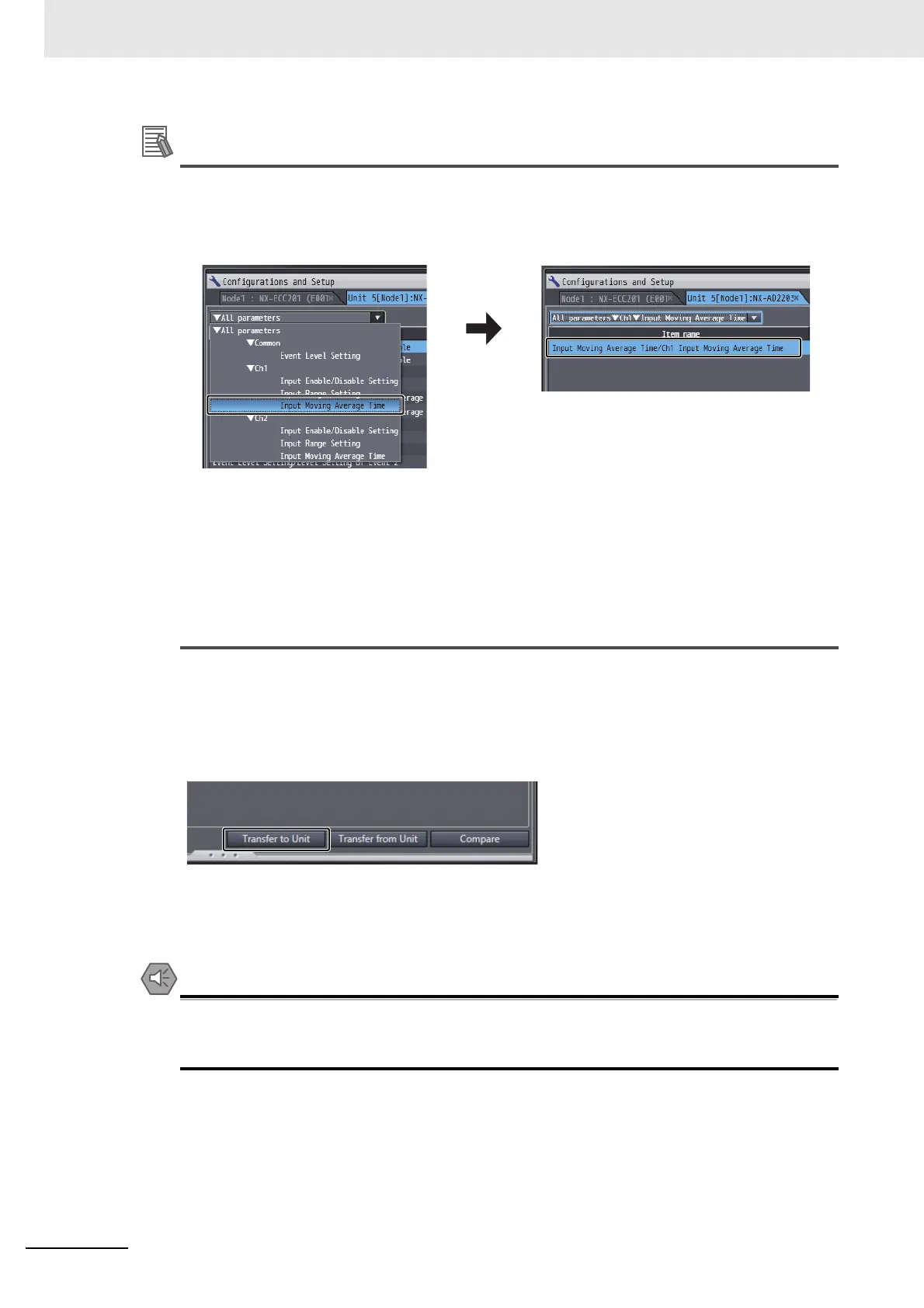

• Click a list button on the tab page to display the item in the Edit Unit Operation Settings Tab
Page.
Example:
• If you set a value different from the default value, the Value on the Sysmac Studio is dis-
played in a different color.
• You can click the Return to Default Value Button to return all set values on the Sysmac Stu-
dio to the default values.
• Help for the settings is displayed at the bottom of the Edit Unit Operation Settings Tab Page.
3 Click the Transfer to Unit Button.
The settings are transferred from the Sysmac Studio to the NX Unit.
The settings are reflected after the Unit is restarted.
Precautions for Safe Use
The Unit is required to restart after the transfer of Unit operation settings on the Support Soft-
ware is completed. Always sufficiently check the safety at the connected devices before you
transfer the Unit operation settings.
Select Input Moving Average Time
under Ch1
Only Input Moving Average Time under
Ch1 is displayed
