6 Analog Input Units

6 - 30

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

z Reset the Calibration Value to the Default

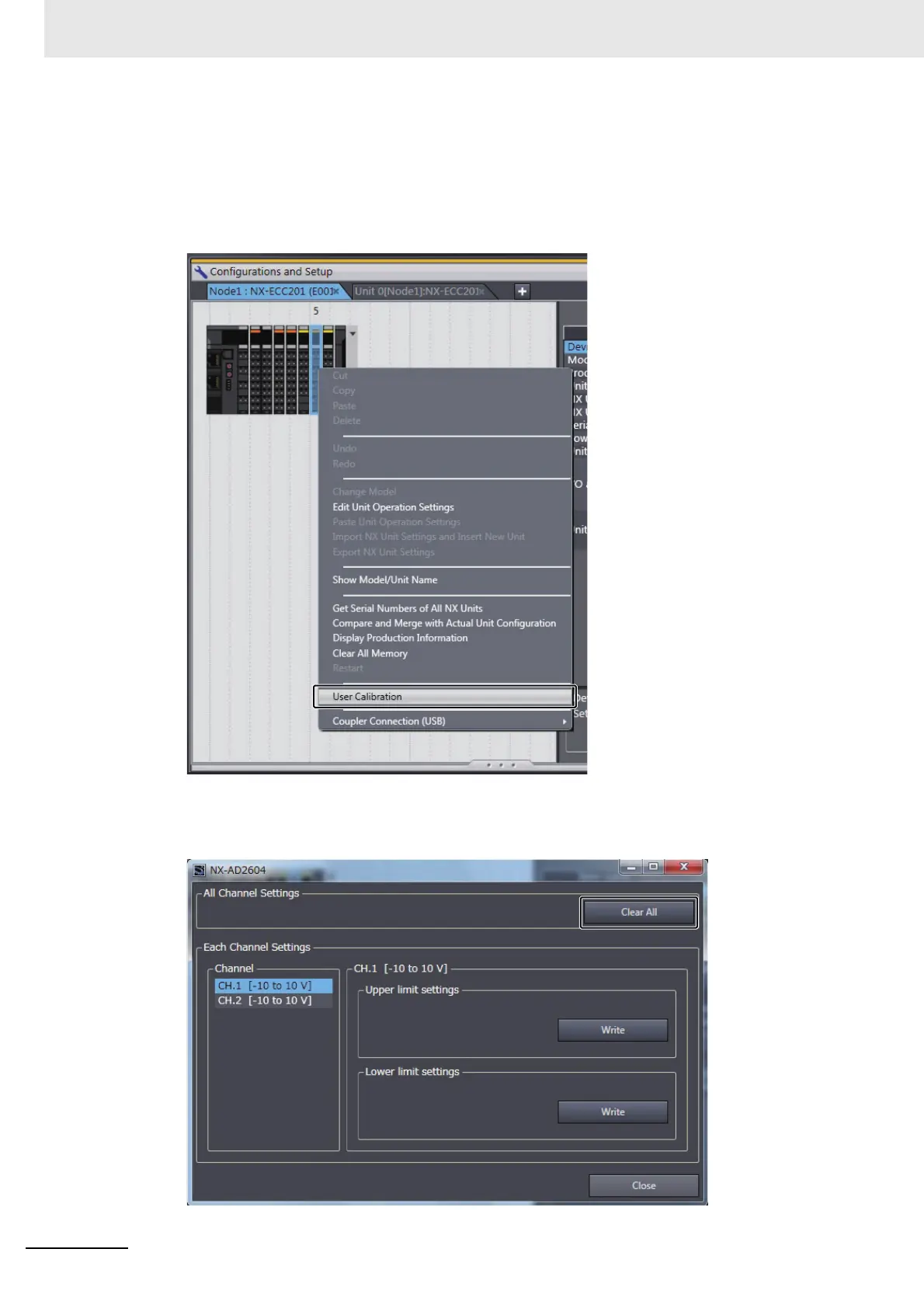

You can reset the calibration value to the default.

1 Right-click the NX Unit, then select User Calibration from the menu.

2 Click the Clear All Button under All Channel Settings.
