7-5 Functions
7
7-5-3 Load Rejection Output Setting

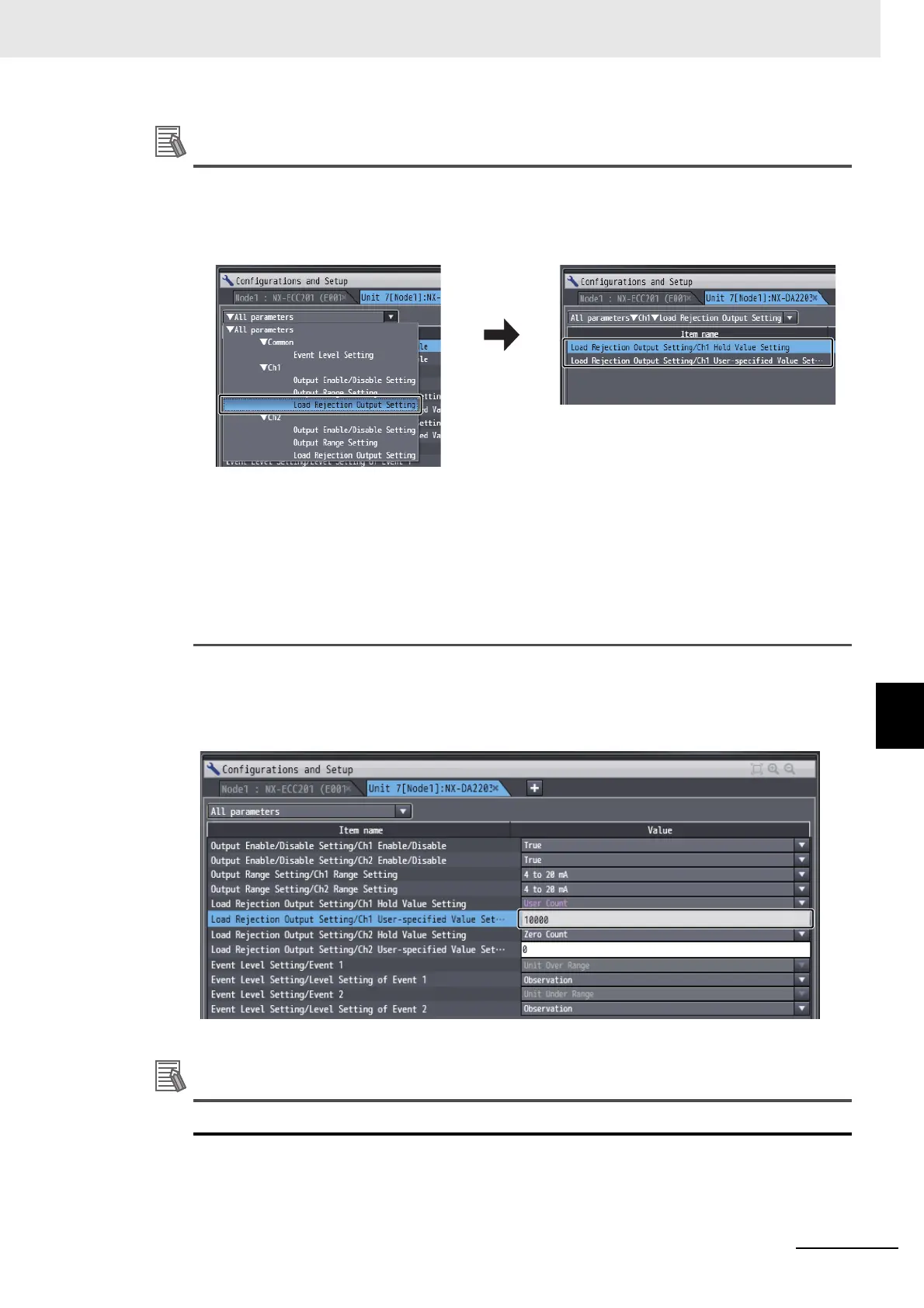

• Click a list button on the tab page to display the item in the Edit Unit Operation Settings Tab
Page.
Example:
• If you set a value different from the default value, the Value on the Sysmac Studio is dis-
played in a different color.
• You can click the Return to Default Value Button to return all set values on the Sysmac Stu-
dio to the default values.
• Help for the settings is displayed at the bottom of the Edit Unit Operation Settings Tab Page.
If you select User Count, enter an analog output value (-32768 to 32767) in the text box of Ch
User-specified Value Setting.
This set value is invalid except for User Count.
Select Load Rejection Output Setting
under Ch1
Only Load Rejection Output Setting under
Ch1 is displayed
To Next Page
