5-3 Wiring the Terminals
5
5-3-1 Wiring to the Screwless Clamping Terminal Block
 Using Ferrules
If you use ferrules, attach them to twisted wires.
Observe the application instructions for your ferrules for the wire stripping length when attaching fer-
rules.
Precautions for Correct Use
Always use plated one-pin ferrules. Do not use unplated ferrules or two-pin ferrules.

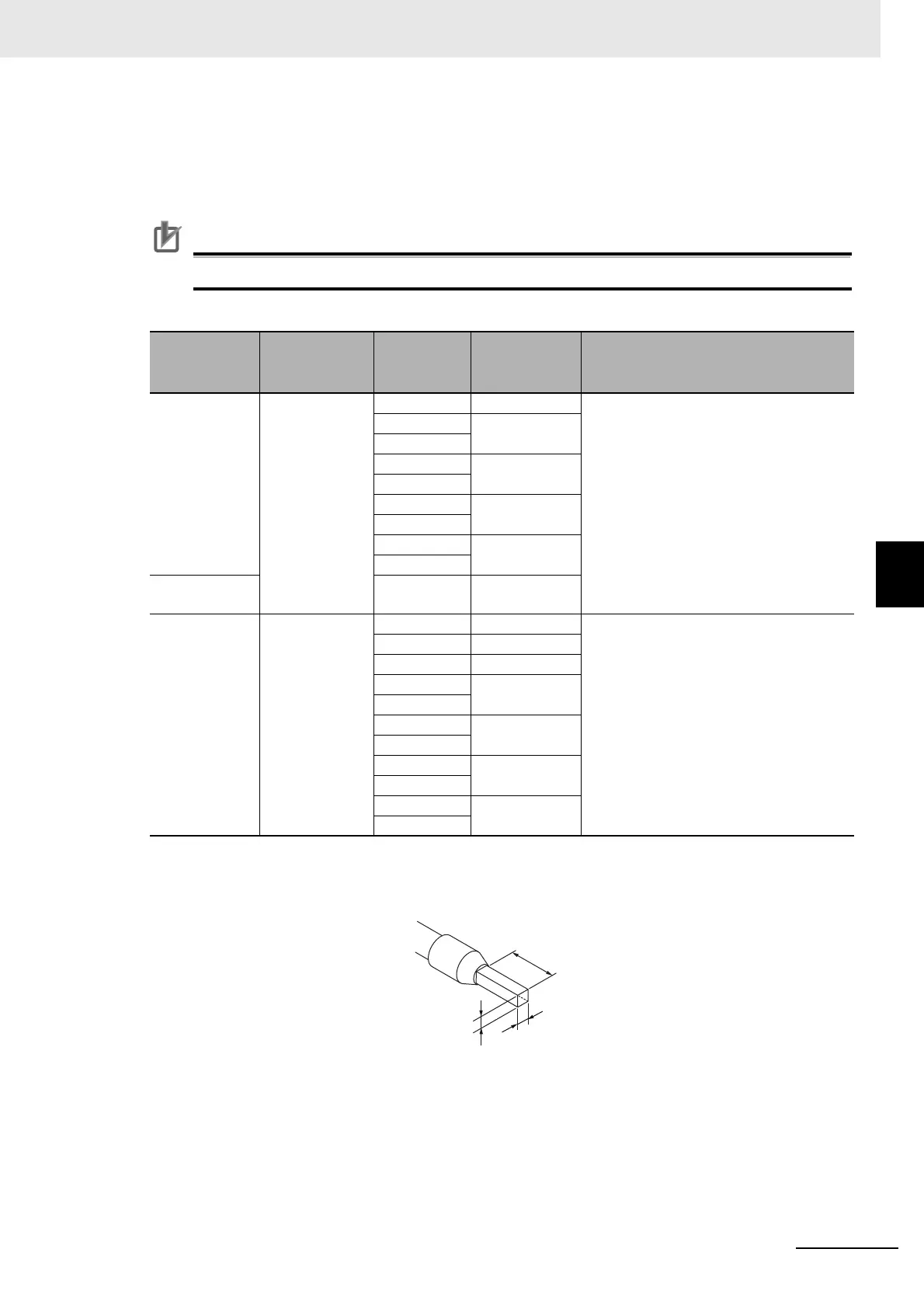

The applicable ferrules, wires, and crimping tools are listed in the following table.
When you use any ferrules other than those in the above table, crimp them to the twisted wires so
that the following processed dimensions are achieved.
Terminal type Manufacturer
Ferrule
model
Applicable
wire
(mm
2
(AWG))
Crimping tool
Terminals other
than ground
terminals
Phoenix Contact AI0,34-8 0.34 (#22) Phoenix Contact (The figure in parenthe-
ses is the applicable wire size.)
CRIMPFOX 6 (0.25 to 6 mm
2
, AWG 24 to
10)
AI0,5-8 0.5 (#20)
AI0,5-10
AI0,75-8 0.75 (#18)
AI0,75-10
AI1,0-8 1.0 (#18)
AI1,0-10
AI1,5-8 1.5 (#16)
AI1,5-10
Ground termi-
nals
AI2,5-10
2.0
*1
*1. Some AWG14 wires exceed 2.0 mm
2
and cannot be used in the screwless clamping terminal block.
Terminals other
than ground
terminals
Weidmueller H0.14/12 0.14 (#26) Weidmueller (The figure in parentheses is
the applicable wire size.)
PZ6 Roto (0.14 to 6 mm
2
, AWG 26 to 10)
H0.25/12 0.25 (#24)
H0.34/12 0.34 (#22)
H0.5/14 0.5 (#20)
H0.5/16
H0.75/14 0.75 (#18)
H0.75/16
H1.0/14 1.0 (#18)
H1.0/16
H1.5/14 1.5 (#16)
H1.5/16
8 to 10 mm
1.6 mm max. (Terminals other than ground terminals)
2.0 mm max. (Ground terminals)
2.4 mm max. (Terminals other than ground terminals)
2.7 mm max. (Ground terminals)
