6-9 Exporting/Importing Settings Data
6
6-9-2 Exporting/Importing the Settings for All the NX Units on a Slave Terminal
2 Right-click the Communications Coupler Unit and select Export All NX Unit Settings from the
menu.

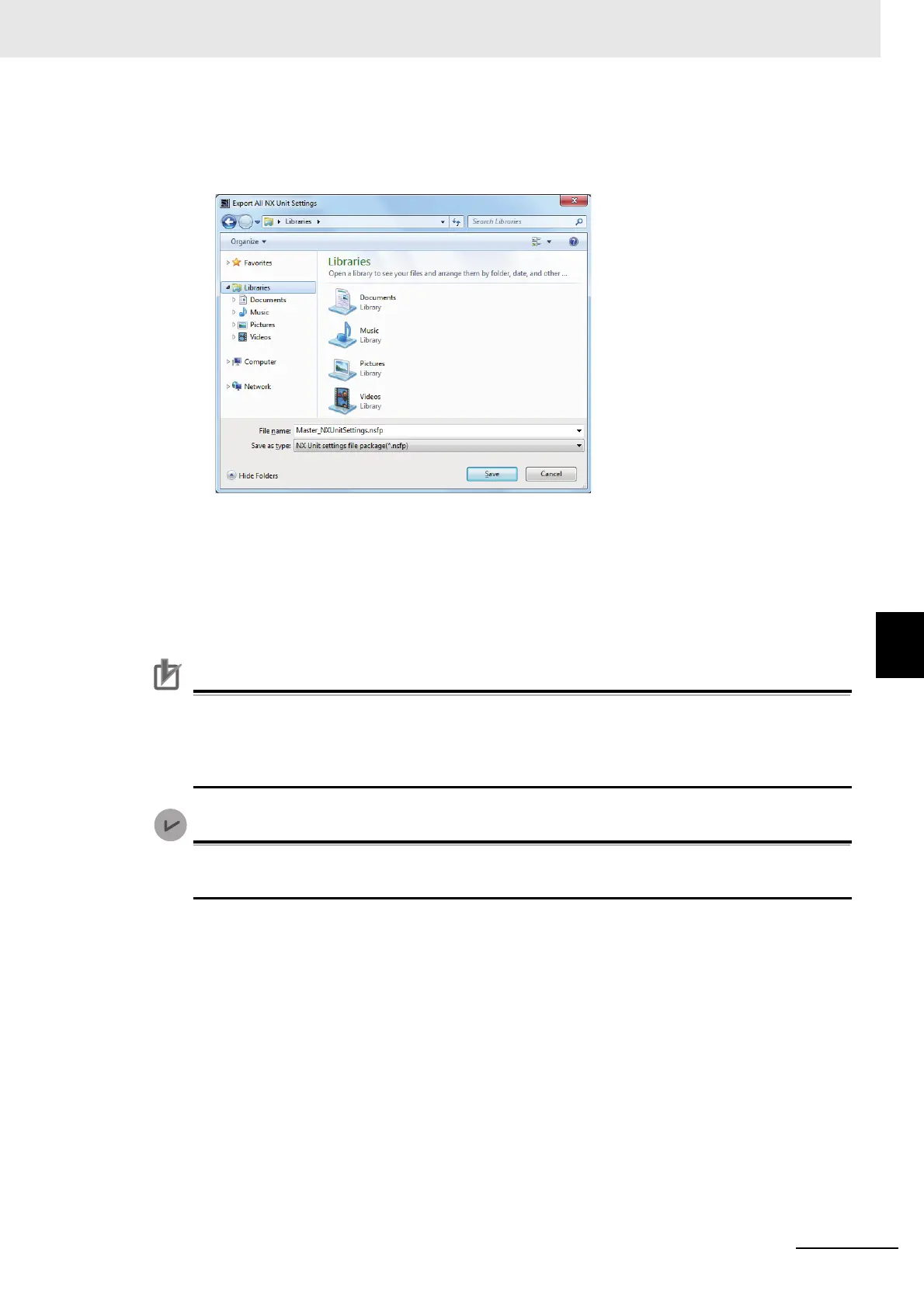

The Export All NX Unit Settings Dialog Box is displayed.
3 Enter a file name, and then click the Save Button.
A configuration file for all the NX Units with an .nsfp extension is saved.
4 To import a file, right-click the Communications Coupler Unit where you wish to add the slave on
the Slave Terminal Tab Page and select Import All NX Unit Settings from the menu.
All NX Units including the Safety CPU Unit to import are added to the Slave Terminal Tab Page.
Precautions for Correct Use
• If even one NX Unit has been added to the Slave Terminal that is being imported, then the
Slave Terminal cannot be imported. Delete all of the NX Units, and then execute the import.
• If you import a settings file for all NX Units including a Safety CPU Unit that has standard I/O
settings on an EtherNet/IP Slave Terminal, the standard I/O settings data is not restored.
Version Information
Exporting and importing all NX Unit settings is supported by Sysmac Studio version 1.17 or
higher.
