Omron NX-SID800 User Manual

7 - 75
7 Programming
NX-series Safety Control Unit User’s Manual (Z930)
7-7 Offline Debugging
7
7-7-6 Simple Automatic Test

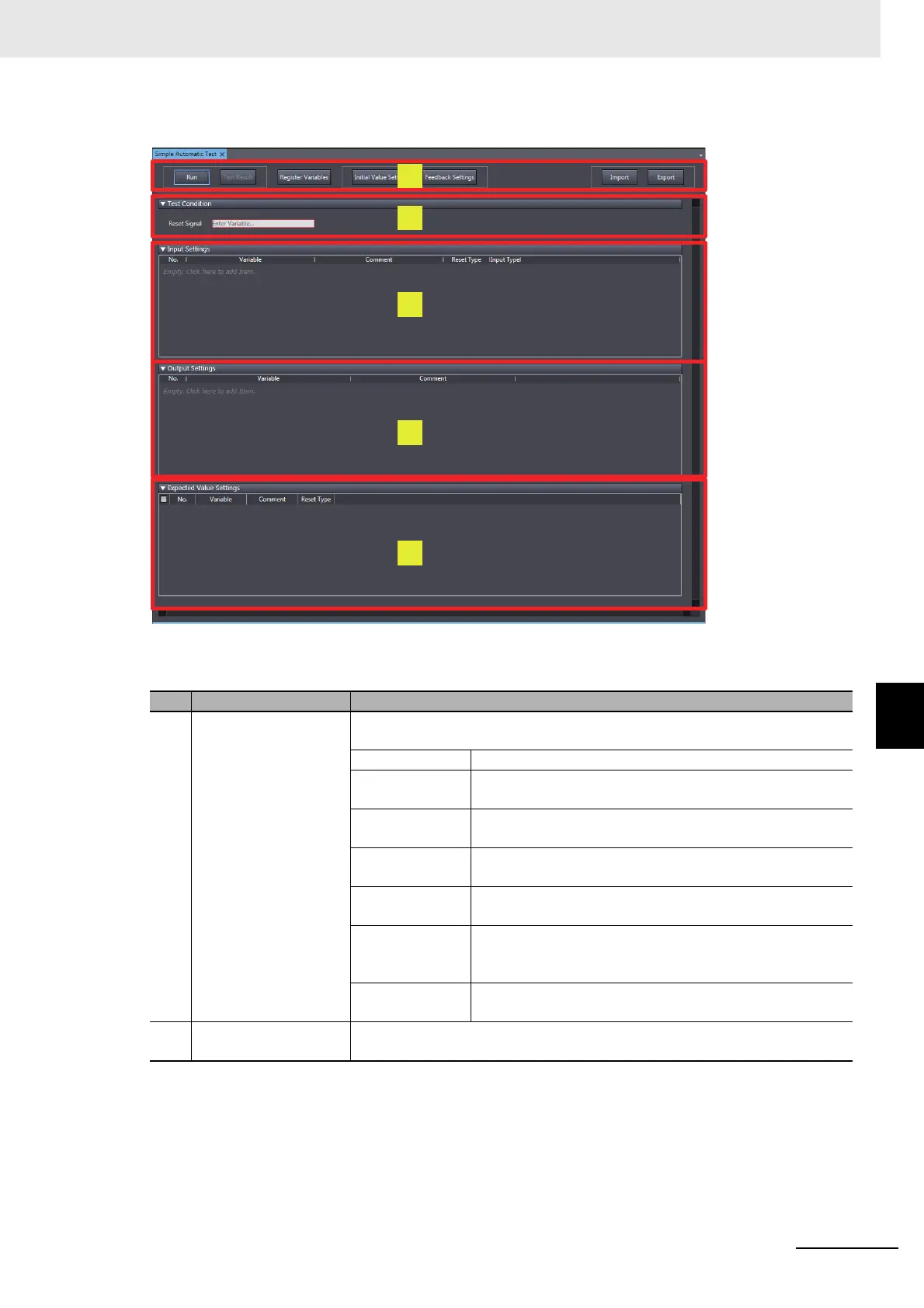

The following Simple Automatic Test Tab Page is displayed.
The setting areas of the Simple Automatic Test are configured as described in the following table.
Item Name Function
(a) Simple Automatic Test
Operation Panel
The operation panel is used to make settings for and execute the Simple Auto-
matic Test. You can perform the following operations.
Run Button Executes the Simple Automatic Test.
Show Test
Result Button
Shows the previous test results for the Simple Automatic
Test.
Registering
Variables Button
Used to register the variables that are used for the Simple
Automatic Test.
Initial Value Set-
tings Button
Displays the Initial Value Settings Dialog Box.
Feedback Set-
tings Button
Displays the Feedback Setting Dialog Box.
Import Button Imports the settings for a Simple Automatic Test from a CSV
file. If you import the settings, the current settings are over-
written.
Export Button Exports the current settings for the Simple Automatic Test to
a CSV file.
(b) Test Condition Area Select the variable to use as a reset signal for the safety program. You can set
any SAFEBOOL or BOOL variable that is defined in the global variable table.
