8 Checking Operation and Actual Operation
8 - 18
NX-series Safety Control Unit User’s Manual (Z930)
4 On the Safety CPU Unit Setup and Programming View, perform one of the following operations.
•Select Mode − DEBUG Mode from the Controller Menu.
• Press the Ctrl + 2 Keys.
• Click the DEBUG Mode Button on the toolbar.

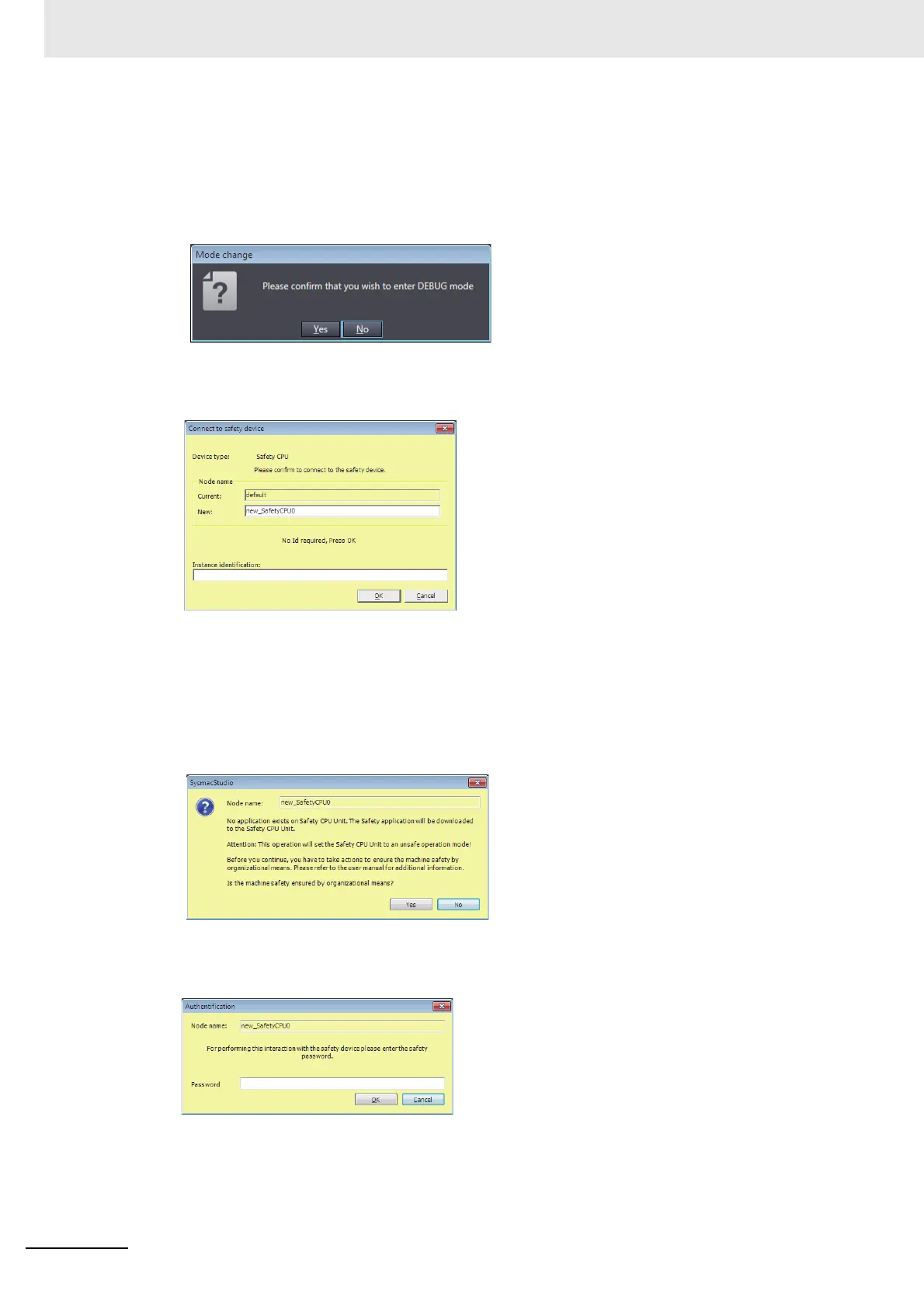

The following mode confirmation dialog box is displayed.
5 Click the Yes Button.
The following Connect to safety device Dialog Box is displayed.
*1. When you change the operating mode for the first time, above dialog box for setting the node name is dis-
played. You can change the node name that is set by default for the Safety CPU Unit. If you do not want to
change the node name, leave the field blank and click the OK Button. Refer to 8-7 Node Name on page 8-43
for details on the node name setting. You do not need to enter anything in the Instance identification Box.
6 Click the OK Button.
The following transfer confirmation dialog box is displayed.
7 Check the safety of the system and then click the Yes Button.
The following device confirmation dialog box is displayed.
8 The first time you use DEBUG mode, or if the security password has not been set, leave the
Password Box blank and click the OK Button.
If the security password is set, enter the security password and click the OK Button.
Refer to 8-8 Security Settings on page 8-44 for the procedure to set the security password.
