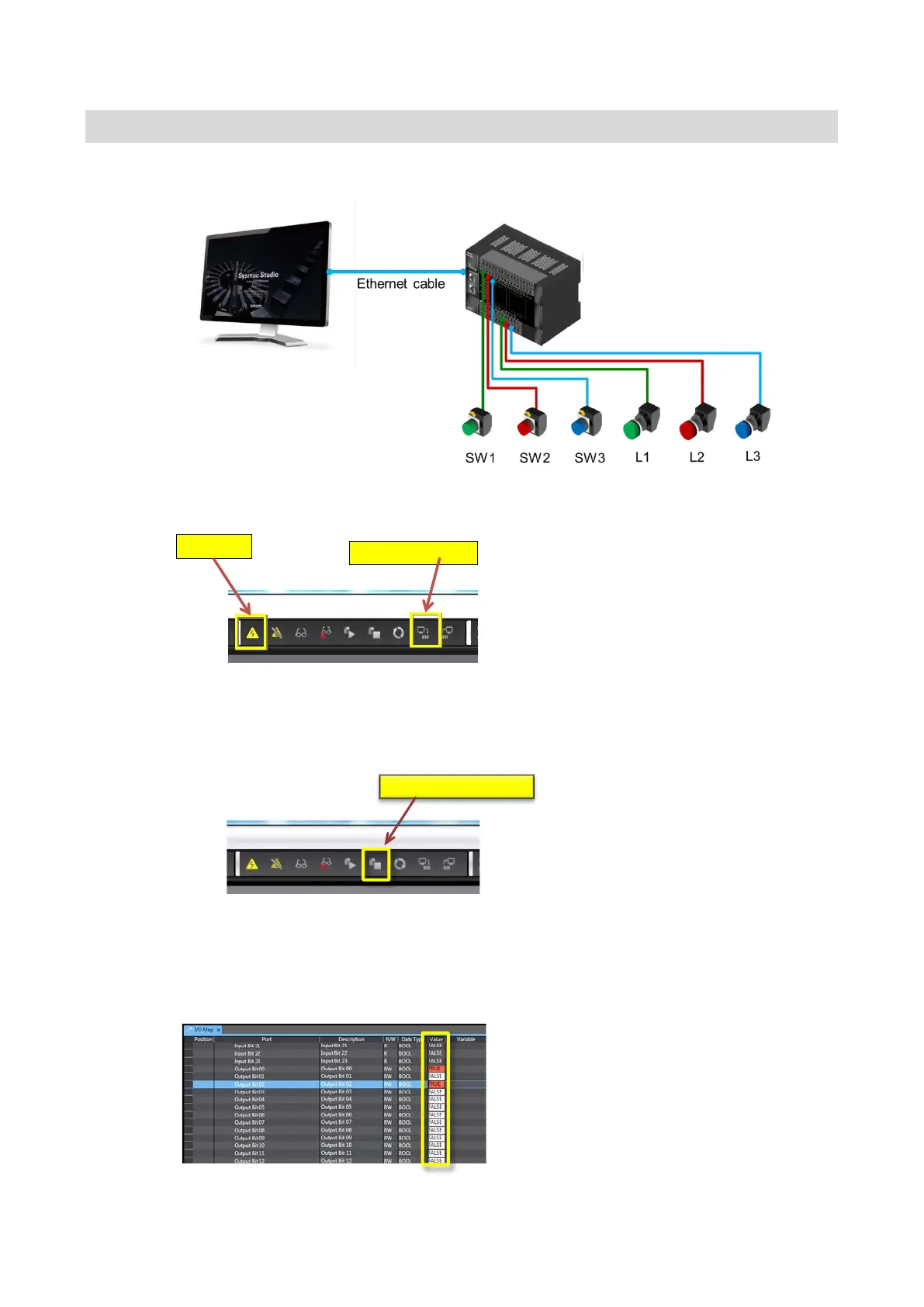

3-3-3 Checking Wiring
1. Connect the NX1P to the computer (Sysmac Studio) via an Ethernet cable.
2.
Go online, and then transfer the I/O map settings to the NX1P.
3. Change the operating mode to PROGRAM mode to prevent the program from being
executed while checking I/O wiring.
4. Press the Pushbutton Switches to check whether the values of the input bits change in the
I/O Map.
5.
Select the I/O port. Right-click and select Set or Reset from the menu to check whether the
Indicator turns ON or OFF.
Change to PROGRAM mode
To Next Page
