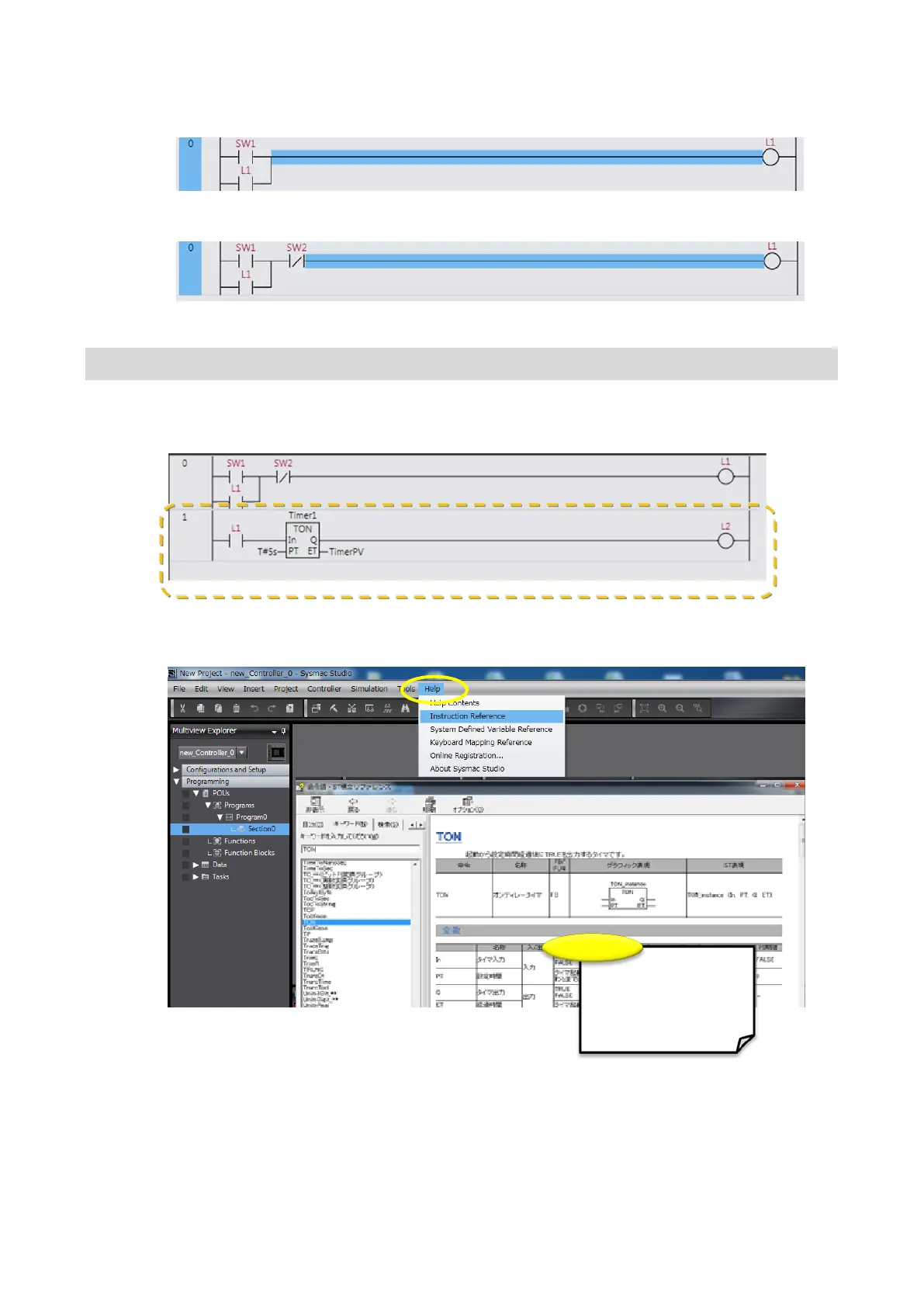

5. Click the connecting line to insert an N.C. Input. Press the / Key and enter “SW2”.
6.
The self-holding rung is created.
3-6-2 On-Delay Timer (TON) Instruction
Create a rung to turn ON L2 in five seconds after SW1 is pressed.
Rung to add
(1) Refer to the help for details of the TON instruction
• Select Instruction Reference - Timer - TON from the Help Menu.
Select an instruction and
press the F1 Key to display
the Instructions Reference
To Next Page
