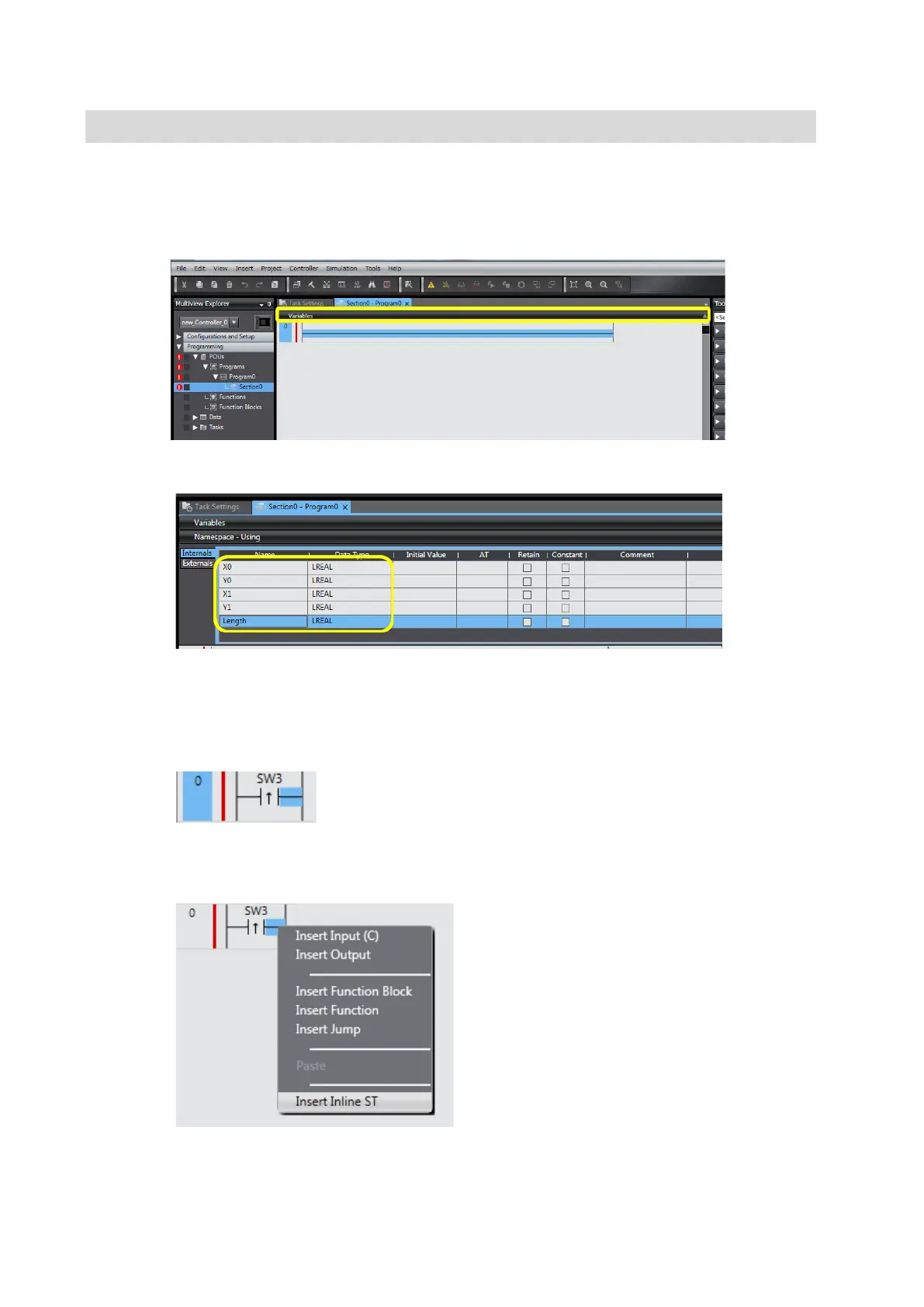

6-3-2 Programming Procedures
1. Create a project. Double-click Section0 under Programming - POUs - Programs -
Program0 in the Multiview Explorer to open the Ladder Editor.
2. Click the Variables Bar to display the variable table.
3. Register the variables used for inline ST as internal variables in the variable table.
Press the Insert Key to insert a row.
LREAL (double-precision floating-point) data enables precise decimal point calculation.
4. Insert a rung and N.O. Input SW3. Set upward differentiation. (Press the @ Key on the
N.O. input.)
5. Right-click the connecting line as shown below and select Insert Inline ST from the
menu.
To Next Page
