82

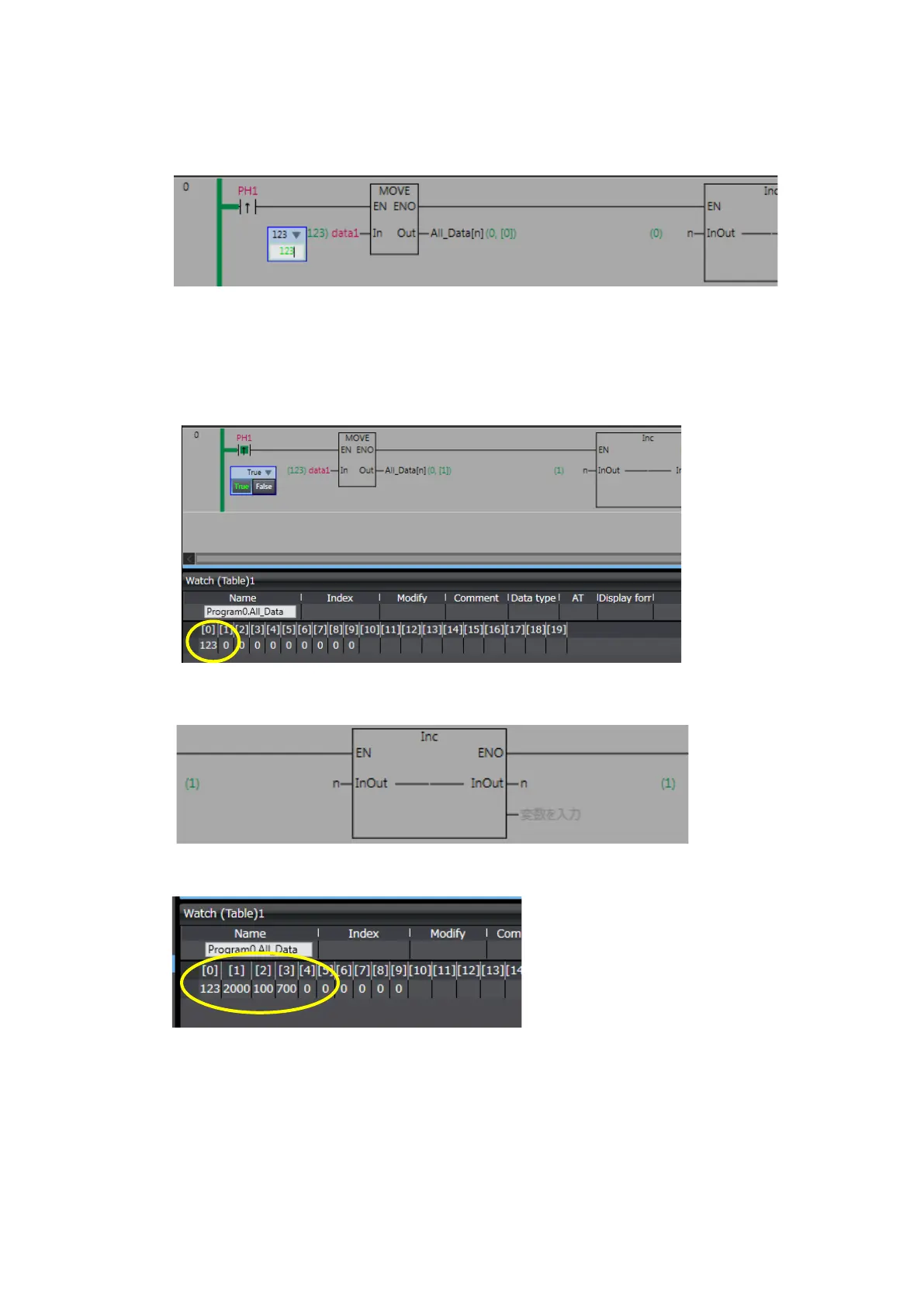

3. Double-click data1 in the MOVE instruction to set the value.
Enter “123” and press the Enter Key.
4. Press the Enter Key on N.O. input PH1 to change the value between True (ON) and False
(OFF).
Change the value of PH1 to True (ON). “123” is stored in the value of All_Data[0] in the
Watch Tab Page.
Check that n of the Inc instruction is incremented by 1 and now it is 1.
5. Enter any value in data1 several times.
The values are set to array variable All_Data in order as shown above.
