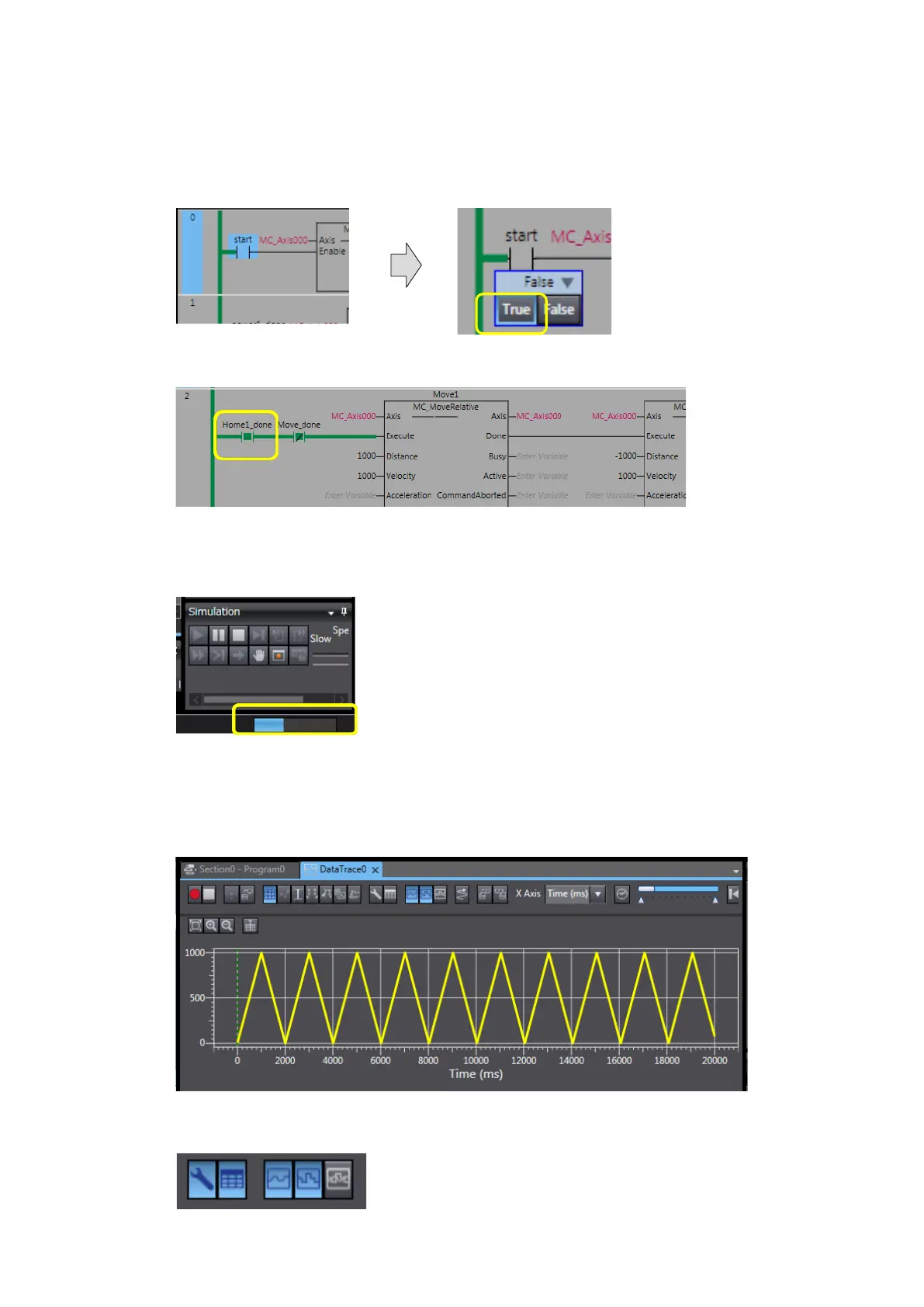

6. Double-click Section0 to open the Ladder Editor.
Use the Set and Reset menu commands to change program inputs and outputs in the
Ladder Editor to TRUE or FALSE.
Double-click start in the first rung and select True.
7. When start changes to TRUE, the trigger condition home1_done changes to TRUE and
the tracing starts.
The progress of tracing is displayed in a light blue progress bar at the lower right of the
window.
When the bar disappears, the tracing is completed.
8. Double-click DataTrace0 under Configurations and Setup - Data Trace Setting.
Check that position data is traced as shown below.
This graph shows that the Servomotor moves forward and backward every second. (The
X axis represents time and the Y axis represents travel distance (pulse).)
You can adjust the screen layout by using the icons shown below to display and hide
items.
