96

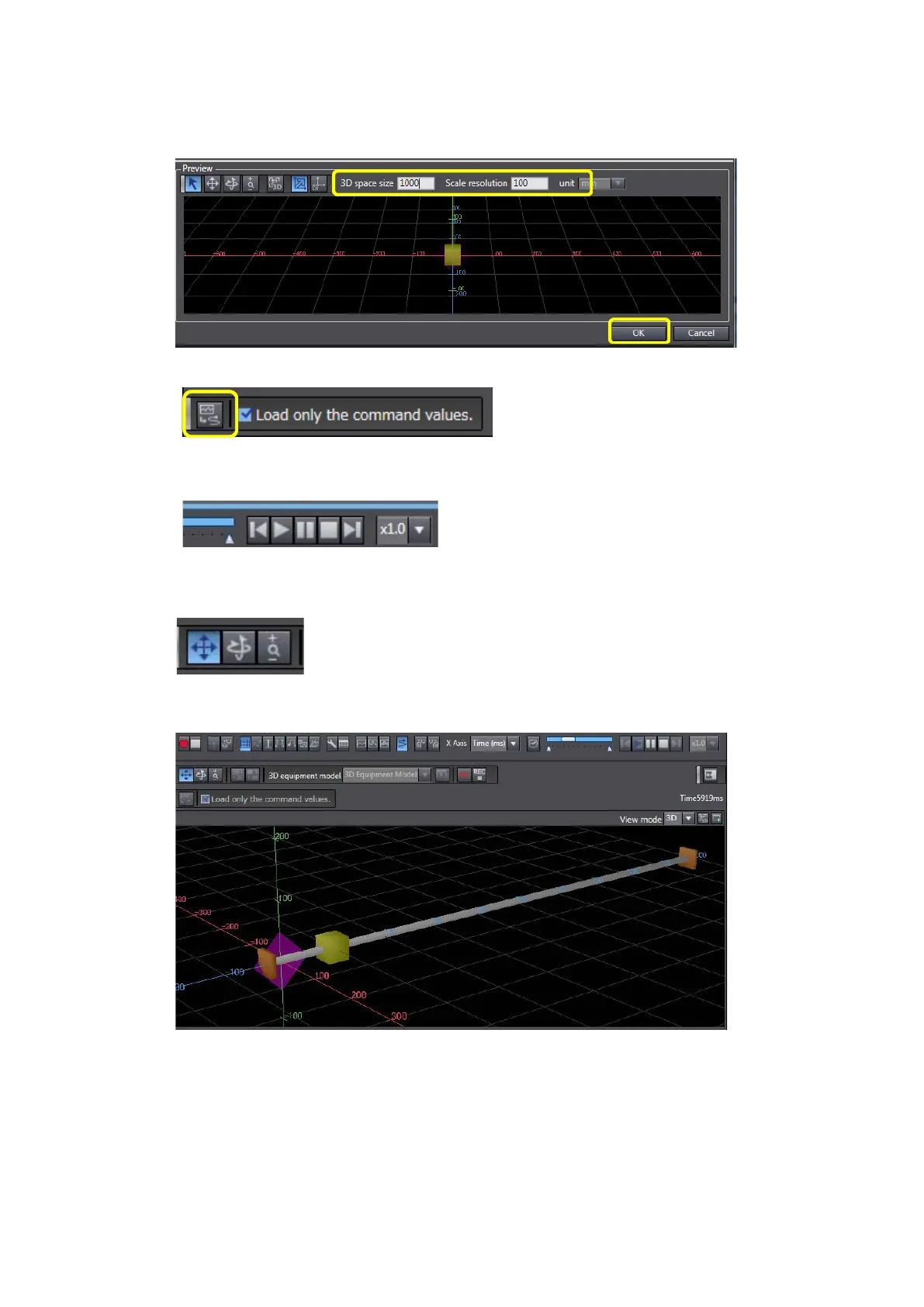

5. Enter 1000into the 3D space size Box and 100into the Scale resolution Box, and
then click the OK Button.
6. Click the Trace Data Loading Button shown below to load the traced data.
7. Check the 3D equipment motion by using the buttons shown below.
8. Use the three viewpoint operation buttons shown below to change and rotate your
viewpoint and zoom in and out of the 3D display area.
9. 3D simulation debugging is completed.
10. Go offline before taking the next step. Save and export the project file.
