3-3 Servomotor Specifications
OMNUC G5-SERIES AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
3
Specifications

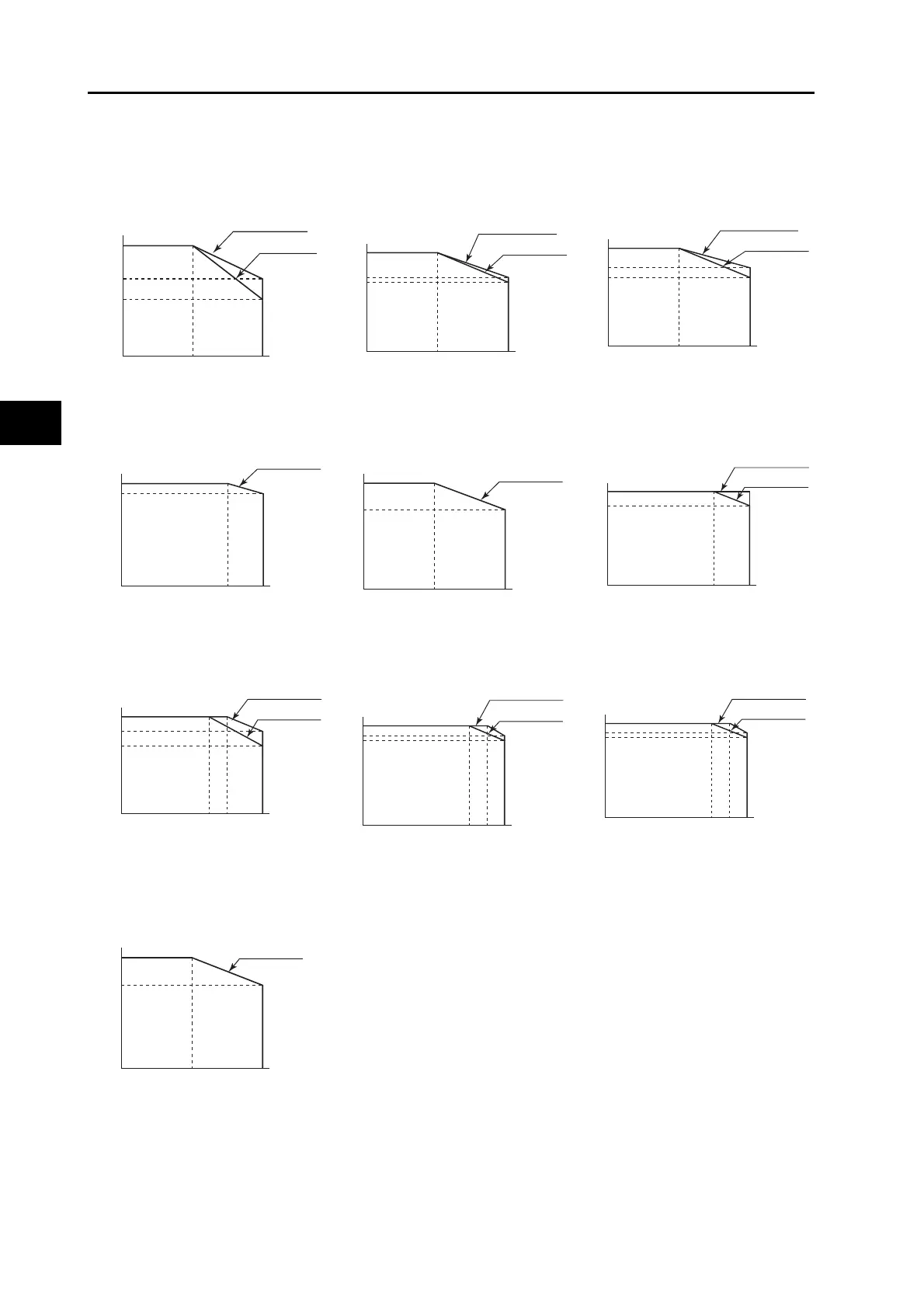

Use the following Servomotors in the ranges shown in the graphs below. Using outside of
these ranges may cause the motor to generate heat, which could result in encoder malfunction.
• R88M-K05030L/S/H/T • R88M-K10030L/S/H/T • R88M-K20030L/SH/T
(50 W: With oil seal) (100 W: With oil seal) (200 W: With oil seal)
• R88M-K40030L/S/H/T • R88M-K40030L/S/H/T • R88M-K1K530H/T/F/C
(400 W: Without oil seal) (400 W: With oil seal) (1.5 kW)
• R88M-K2K030H/T/F/C • R88M-K3K030H/T/F/C • R88M-K4K030H/T/F/C
(2 kW) (3 kW) (4 kW)
• R88M-K5K030H/T/F/C
(5 kW)
