3-115
3-4 Cable and Connector Specifications
OMNUC G5-SERIES AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
3
Specifications

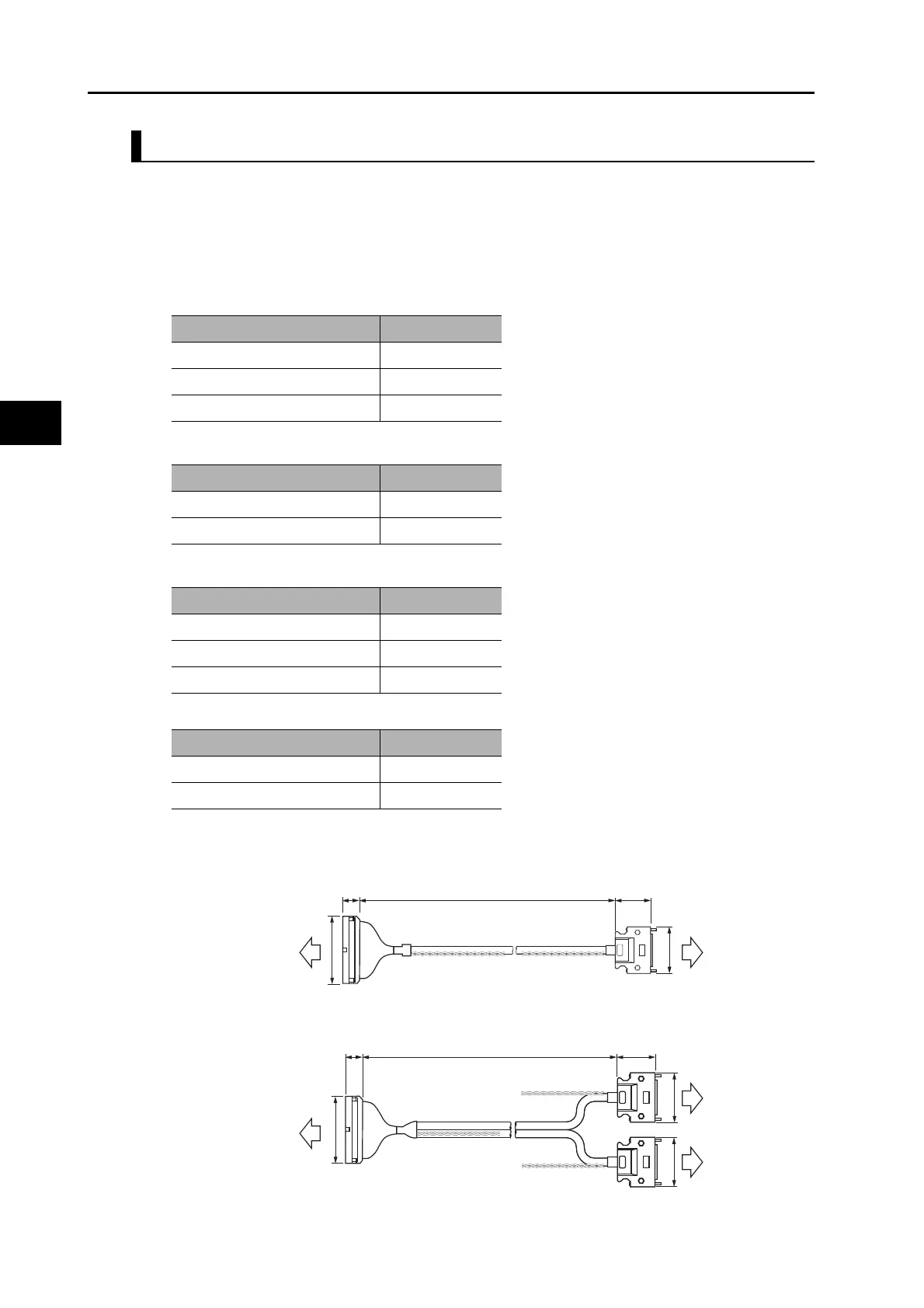

Specified Cables for Position Control Unit (for CJ1W-NC @@ 4 - High-speed Type)
This cable is for connecting Position Control Units (CJ1W-NC@@4) for OMRON
Programmable Controller SYSMAC CJ Series. Cables are available for either 1 axis or 2 axes.
The following types of Position Control Units are supported.
CJ1W-NC214/-NC414/-NC234/-NC434
Cable types
 Cable for line-driver output for 1 axis
 Cable for open collector output for 1 axis
 Cable for line-driver output for 2 axes
 Cable for open collector output for 2 axes
Connection configuration and external dimensions
 Cables for 1 axis
 Cables for 2 axes
Model Length
XW2Z-100J-G9 1 m
XW2Z-500J-G9 5 m
XW2Z-10MJ-G9 10 m
Model Length
XW2Z-100J-G13 1 m
XW2Z-300J-G13 3 m
Model Length
XW2Z-100J-G1 1 m
XW2Z-500J-G1 5 m
XW2Z-10MJ-G1 10 m
Model Length
XW2Z-100J-G5 1 m
XW2Z-300J-G5 3 m
Position Control
Unit side
CJ1W-NC@@4
Servo Drive side
R88D-K@
16.1 L 39
52.4
t = 6.1
t = 18
Position Control
Unit side
CJ1W-NC@@4
Servo Drive side
R88D-K@
Servo Drive side
R88D-K@
16.1 L 39
52.4
t = 6.1
t=18
t = 18
52.4
