2-4 External and Mounting Dimensions
OMNUC G5-SERIES AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
2

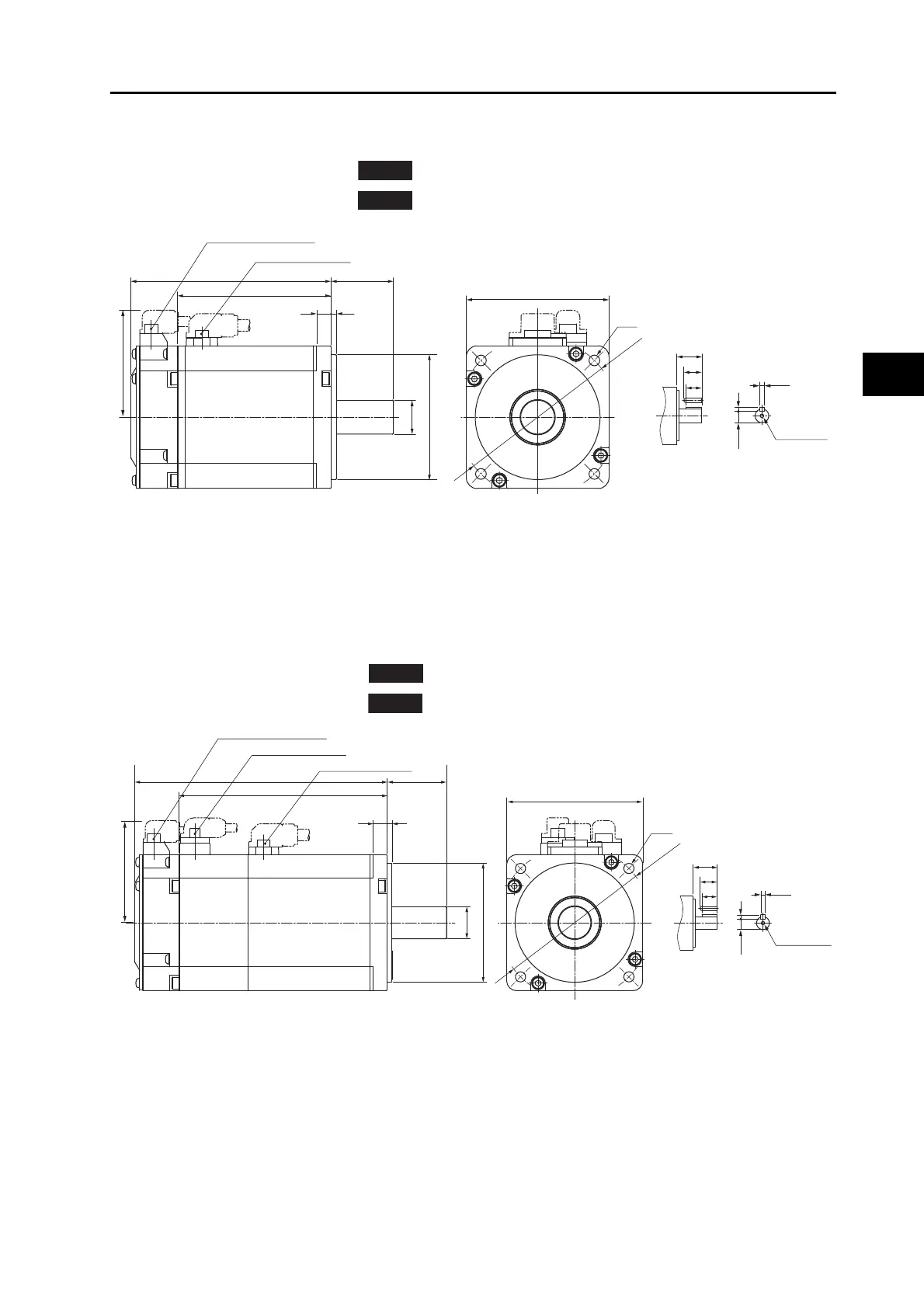

Standard Models and External Dimensions
750 W (without Brake)
R88M-K75030H (-S2)
R88M-K75030T (-S2)
Note. The standard models have a straight shaft. Models with a key and tap are indicated with S2 at the
end of the model number.
Models with an oil seal are indicated with O at the end of the model number. The motor dimensions
do not change.
750 W (with Brake)
R88M-K75030H-B (S2)
R88M-K75030T-B (S2)
Note. The standard models have a straight shaft. Models with a key and tap are indicated with S2 at the
end of the model number.
Models with an oil seal are indicated with O at the end of the model number. The motor dimensions
do not change.
INC
ABS
(Shaft end specifications with key and tap)
35
25
22
6h9
15.5
6
112.2
35
86.2
83
φ19h6
φ70h7
Motor connector
Encoder connector
80×80
4−φ6
φ90±0.2
M5 (depth 10)
60
INC
ABS
Motor connector
Brake connector
Encoder connector
(Shaft end specifications
with key and tap)
148.2
35
122.2
35
25
22
83
φ19h6
φ70h7
4−φ6
80×80
φ90±0.2
M5 (depth 10)
6h9
15.5
6
61.6
