Regular Payload Series-Hardware Installation Manual TM5 Series Hardware Version: 3.2 19
4.2.1 Robot Arm
4.2.1.1 Dimension Drawings of Robot
Shown below is the dimension drawing of the robot

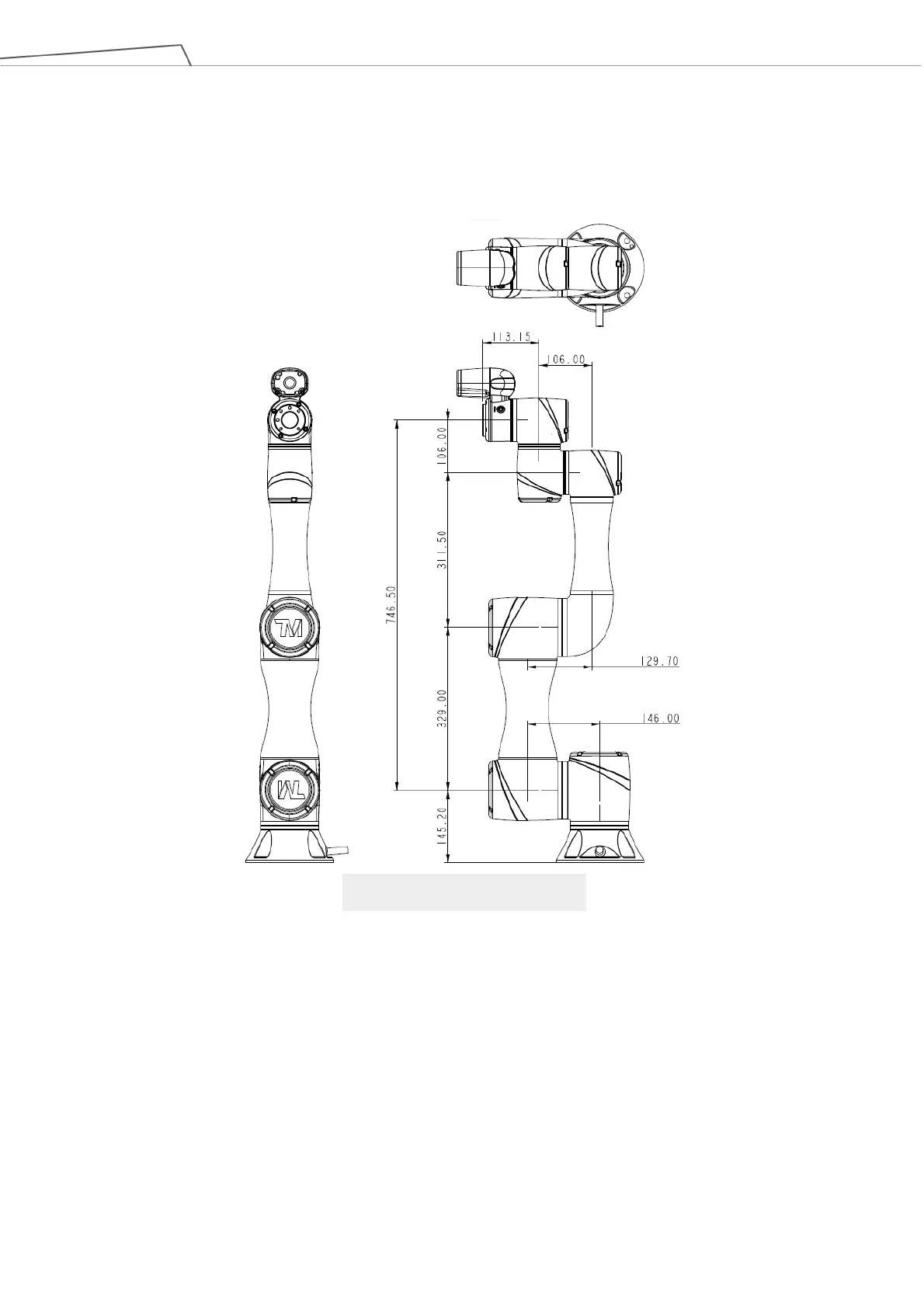

Figure 5: Dimension of TM5-700 / TM5M-700
*All measures are in mm.
TM5-700 / TM5M-700
