Regular Payload Series-Hardware Installation Manual TM5 Series Hardware Version: 3.2 29

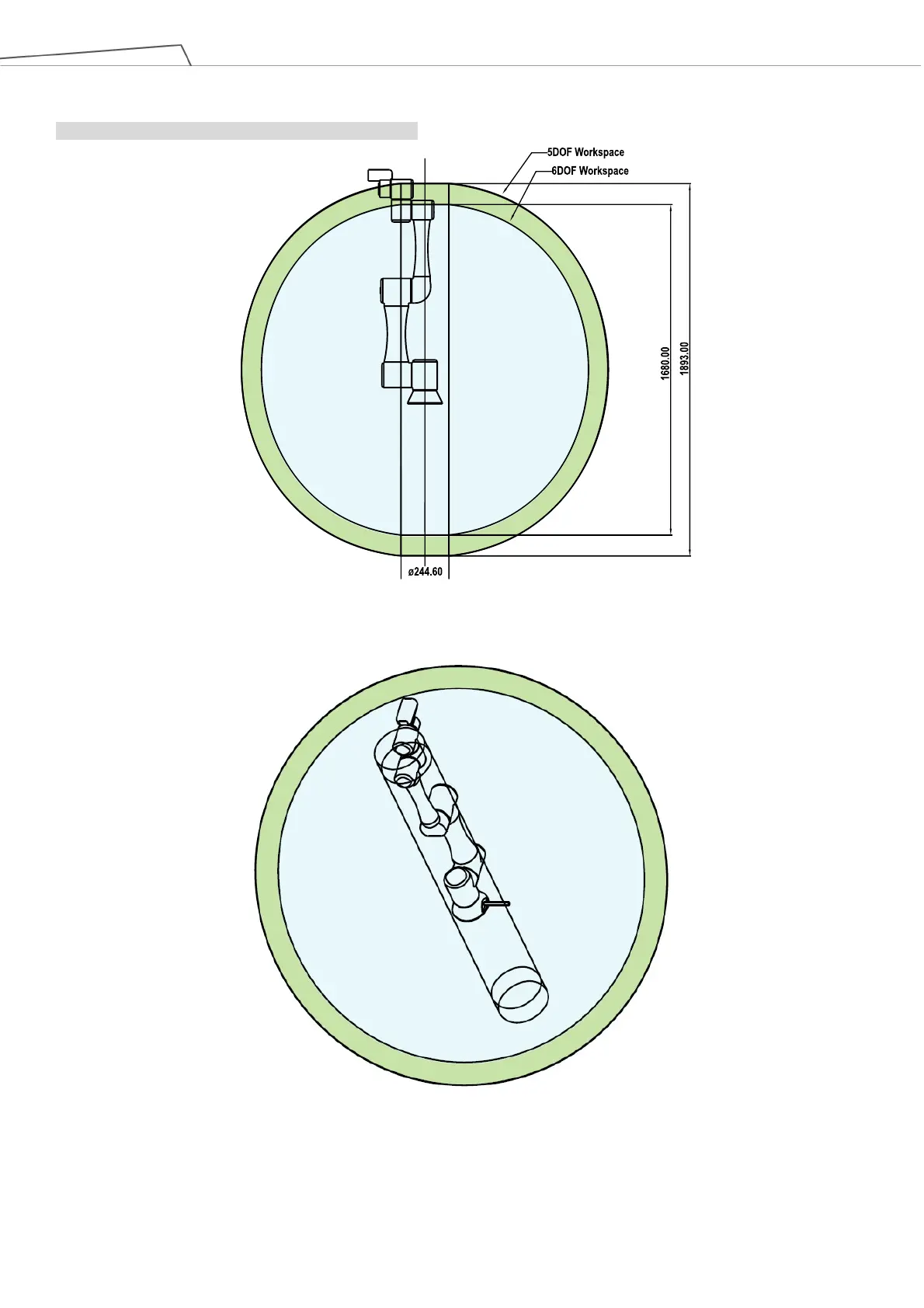

TM5-900 / TM5M-900 / TM5X-900 Movement Range
Figure 16: Side View of TM5-700 / TM5M-700 / TM5X-700 Movement Range Diagram
*All measures are in mm.
Figure 17: Pictorial Views of TM5-900 / TM5M-900 / TM5X-900 Movement Range
