Omron Regular Payload Series

Regular Payload Series-Hardware Installation Manual TM5 Series Hardware Version: 3.2 45

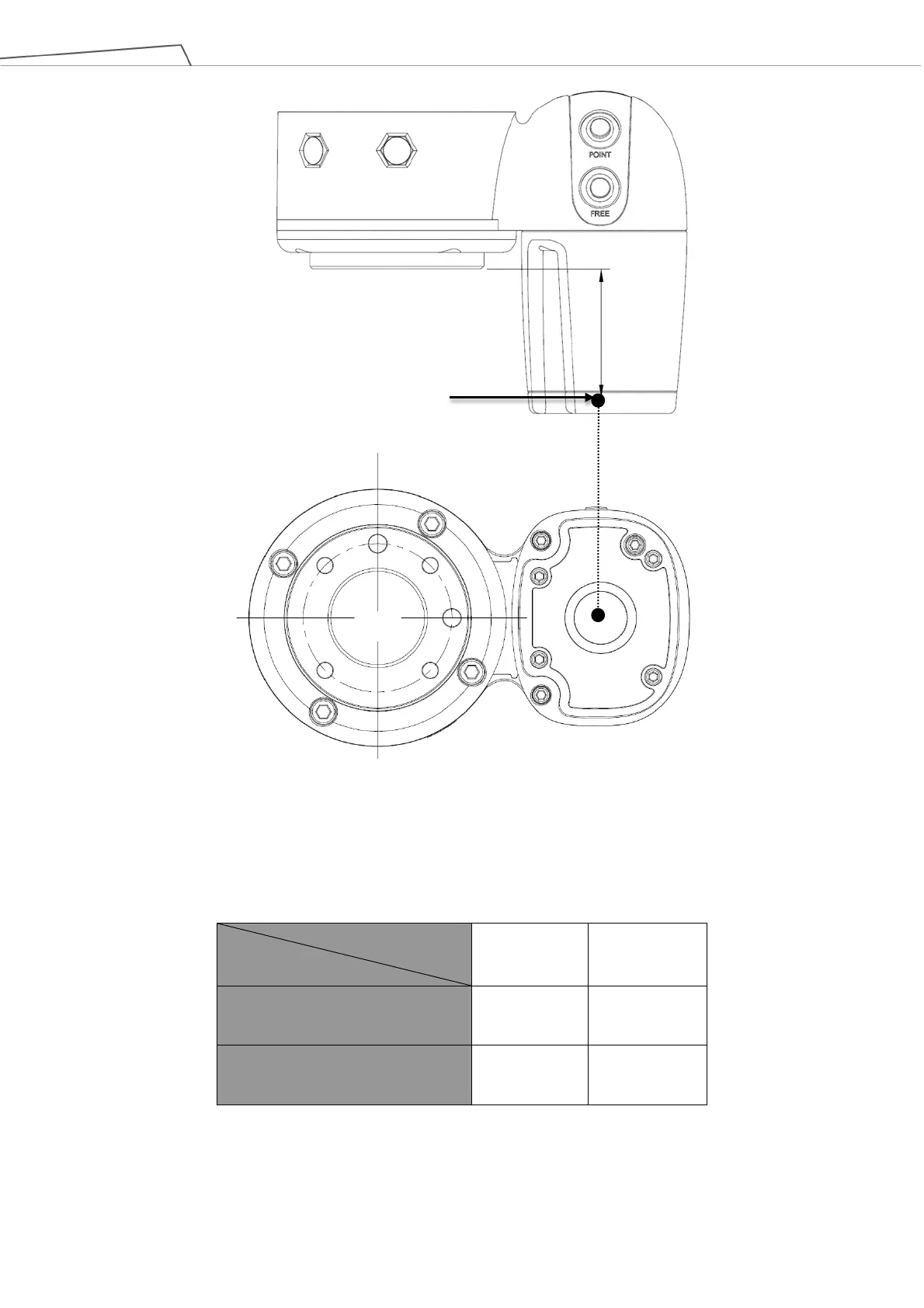

Figure 35: Working Distance and Field of View of TM Robot’s EIH camera
*All measures are in mm.
The relation between the working distance and the field of view is listed below.
Working distance (mm)
Field of view (mm)
300 100
Width
281.6 96.9
Height
211.2 72.7
Table 9: The Relation between the Working Distance and the Field of View
46.5
Working distance = 0
