Omron Regular Payload Series

Regular Payload Series-Hardware Installation Manual TM5 Series Hardware Version: 3.2 37

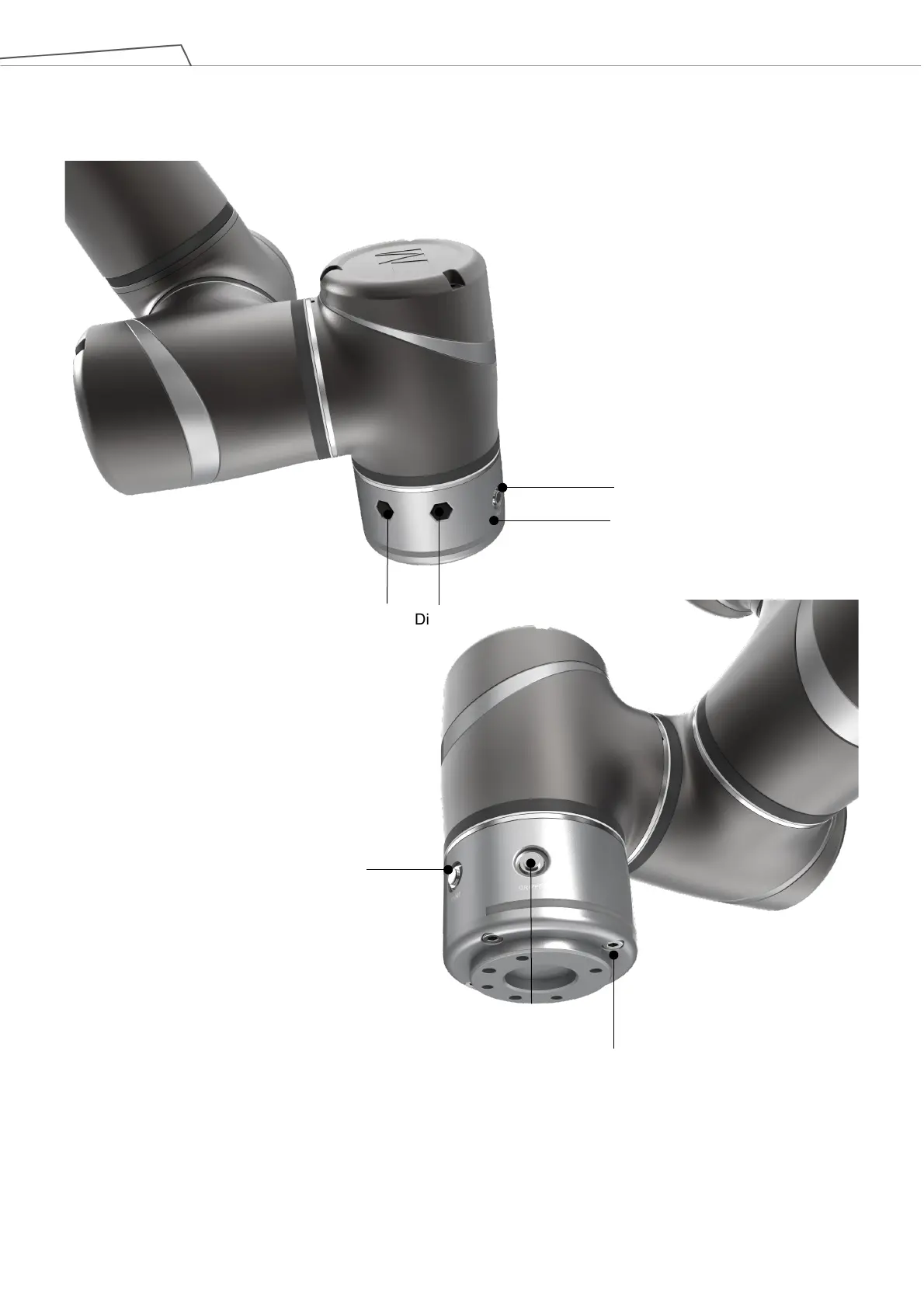

Figure 26: References of TM5X-700 / TM5X-900 End Module Components
GRIPPER Button
Flange (ISO 9409-1-50-4-M6)
POINT Button
Digital I/O
Indication Light Ring
Analog I/O
FREE Button
TM5X-700 / TM5X-900 End Module Components
