Regular Payload Series-Hardware Installation Manual TM5 Series Hardware Version: 3.2 77
Safety I/O
Preset operation project
TCP Settings
I/O Settings
NOTE:
The filter must be changed regularly to maintain efficiency. Please contact the Corporation to
purchase the filter if in demand.

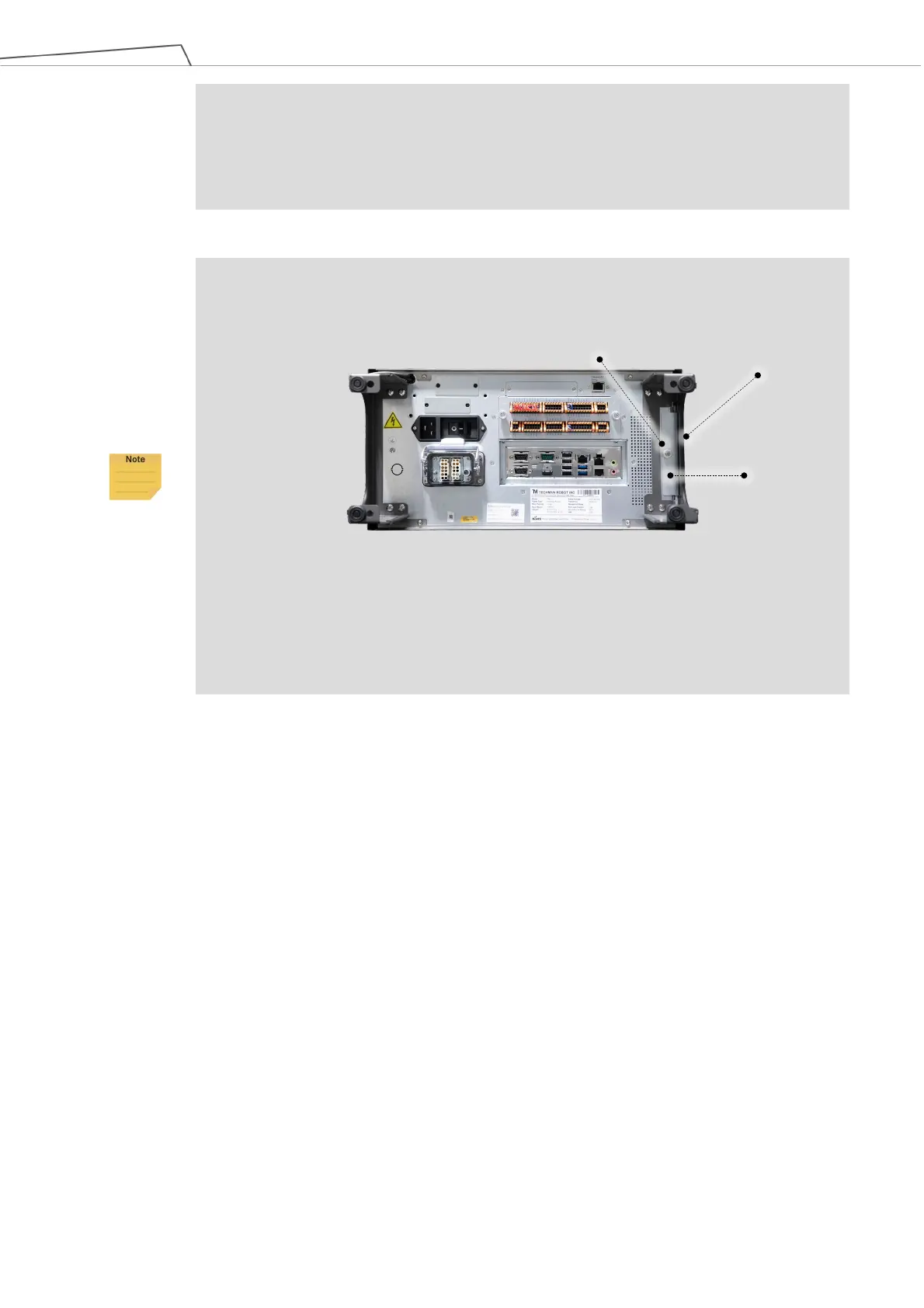

Figure 73: Air Filter Tray
Removal method:
1. Turn off the power and lay the control box flat.
2. Remove the rubber edge trim and loosen the air filter screw.
3. Pull out the air filter tray and replace the filter with a new one.
edge trim
