Omron SYSDRIVE 3G3IV

Appendix C
$

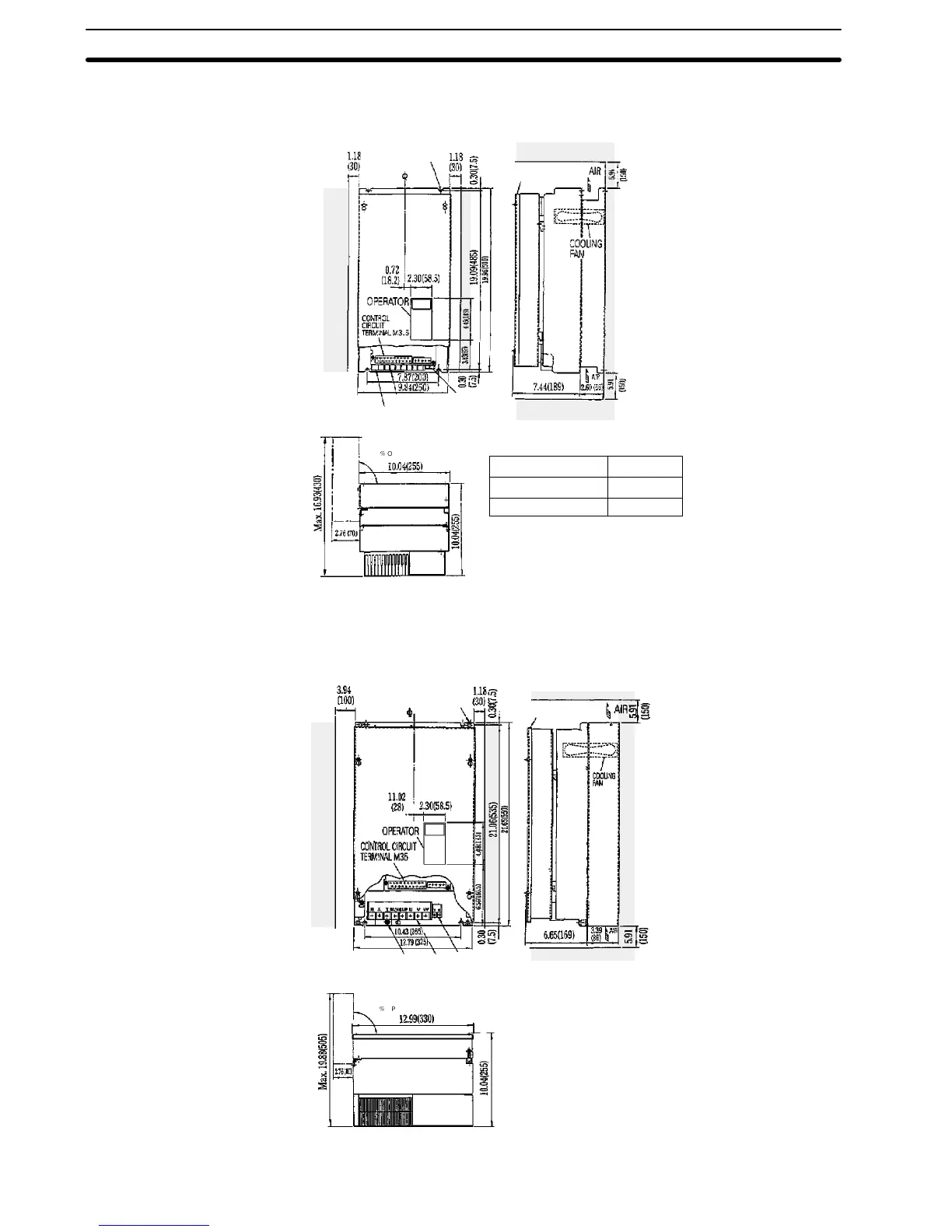

15 to 20 HP (11 to 15 kW) (Model 3G3IV-B4110-E to B4150-E) Enclosed Wall-mounted Type
MODEL
3G3IV-B4110-E
3G3IV-B4150-E
WEIGHT
46 lb (21 kg)
48 lb (22 kg)
MAIN CIRCUIT
TERMINAL M5
CONTROL CIRCUIT
TERMINAL M4
GROUNDING
TERMINAL M8
90

OPEN
4-0.236(M6) DIA MTG. HOLES
FACE PLATE
25 to 30 HP (18.5 to 22 kW) (Model 3G3IV-B4185-E to B4220-E) Open Chassis Type
Approx. Weight:
70 lb (32 kg)
4-0.236(M6) DIA
MTG. HOLES
FACE PLATE
GROUNDING
TERMINAL M8
MAIN CIRCUIT
TERMINAL M6
CONTROL CIRCUIT
TERMINAL M4
90

OPEN
