Omron SYSDRIVE 3G3IV - 380 to 460 V 0.5 to 3 HP (0.4 to 2.2 kW) (Model 3 G3 IV-A4004-E to A4022-E) Enclosed Wall-mounted Type; 5 to 10 HP (3.7 to 7.5 kW) (Model 3 G3 IV-A4037-E to A4075-E) Enclosed Wall-mounted Type

Appendix C
$,
380 to 460 V

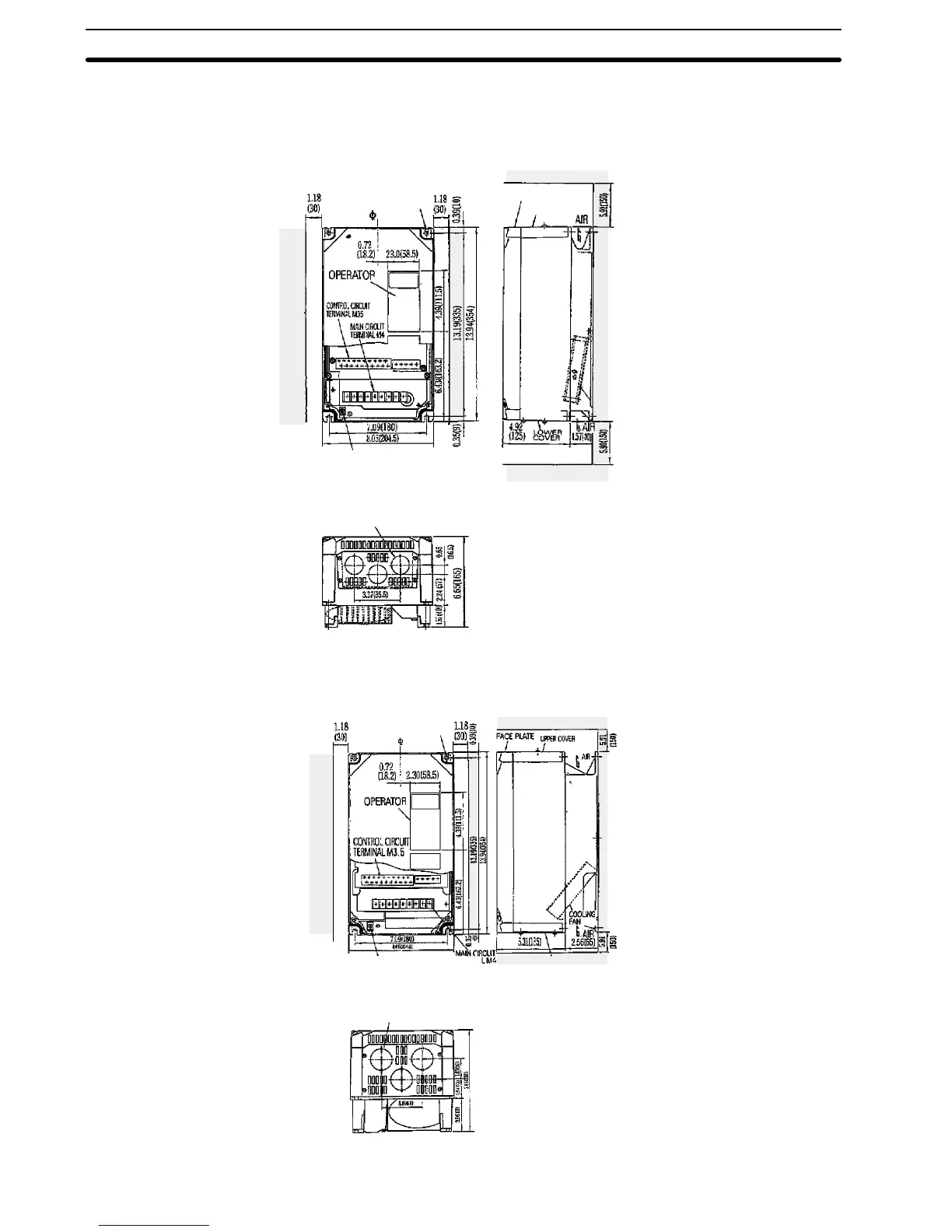

0.5 to 3 HP (0.4 to 2.2 kW) (Model 3G3IV-A4004-E to A4022-E) Enclosed Wall-mounted Type
Note:
To use the unit in
the panel, re-
move the upper
and lower covers.
4-0.236(M6) DIA MTG.
HOLES
GROUNDING TERMINAL M4
COOLING FAN
3-44 dia. CABLE ENTRY KNOCK OUT
Approx. Weight:
15 lb (7kg)
FACE PLATE
UPPER COVER
5 to 10 HP (3.7 to 7.5 kW) (Model 3G3IV-A4037-E to A4075-E) Enclosed Wall-mounted Type
Note:
To use the unit in the
panel, remove the up-
per and lower covers.
4-0.236(M6) DIA MTG. HOLES
LOWER COVER
GROUNDING TERMI-
NAL M4
THREE, 44DIA. CABLE ENTRY KNOCK OUT
Approx. Weight:
22 lb (10 kg)
