3G3IV-A2004-EV1
Inverter
Specifications
A: Enclosed wall-
mounting
B: Panel-mounting
P: Option
Voltage
2: 200 V
4: 400 V
Applicable maximum
motor output
004: 0.4 kW
007: 0.75 kW
to
30K: 300 kW
E: European specifications
blank: Japaneae specifications
V2: Version capable of communicating
with PC (optional card required)
1-4 Installation
Caution
Never move, lift or handle the SYSDRIVE 3G3IV cabinet by front cover or
terminal stands. Lift the cabinet from the bottom.
1-4-1 Location
Location of the equipment is important to achieve proper performance and
normal operating life. The SYSDRIVE 3G3IV units should be installed in ar-
eas where the following conditions exist.
• Ambient temperature: --10° to 40°C, 14° to 104°F (For enclosed type),
--10° to 45°C, 14° to 113°F (For open chassis type)
• Protected from rain or moisture.
• Protected from direct sunlight.
• Protected from corrosive gases or liquids.
• Free from airborne dust or metallic particles.
• Free from vibration.
• Free from magnetic noise.
Caution
To house multiple SYSDRIVE 3G3IVs in a switchgear, install a cooling fan or
some other means to cool the air entering the inverter below 45°C(113°F).

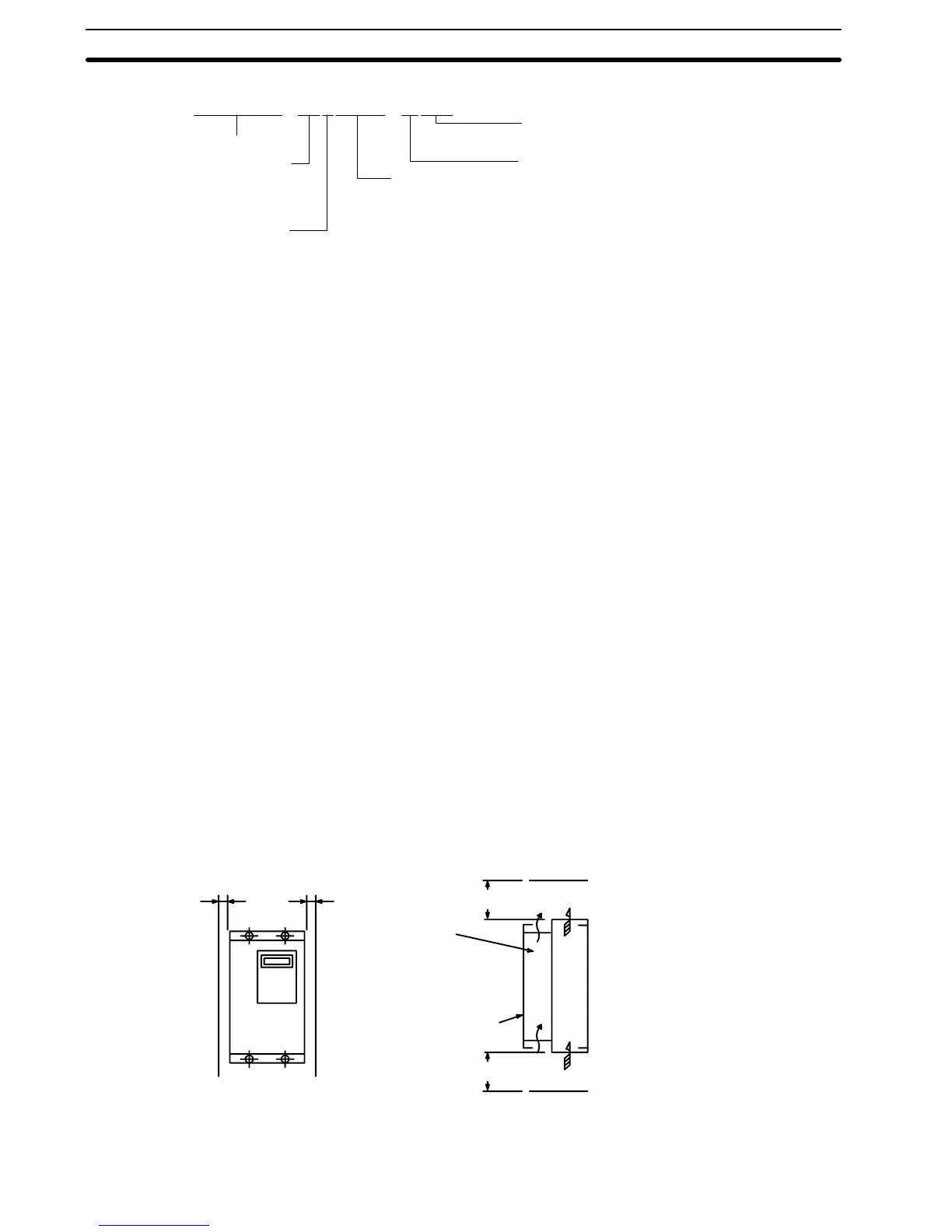

1-4-2 Mounting Space
Install SYSDRIVE 3G3IV vertically and allow sufficient space for effective
cooling as shown below in Fig. 1.
1.18 in (30 mm)*
OR MORE
1.18 in (30 mm)
OR MORE
(a) Front View
Fig. 1 Mounting Spaces
ALLOWABLE
TEMPERATURE
OF CONTROL PART:
55
°
C(131
°
F)**
FRONT
COVER
5.9 In (150 mm)
OR MORE
5.9 in (150 mm)
OR MORE
(b) Side View
AIR
AIR
OPEN CHASSIS TYPE: 45
°
C(113
°
F)
ENCLOSED WALL-MOUNTED TYPE: 40
°
C(104
°
F)
* 3.9in (100 mm) for models 3G3IV-B4110-E or B4150-E
3.15in (80 mm) for models 3G3IV-B4180-E or B4220-E
** Allowable temperature up to 50
°
C(122
°
F)
when front cover is removed.
Section 1-4
