17
1-5-2 Setting Before Operation
Since the standard Inverter Models are shipped with the default
values listed in
2-7 Function/Constant List
, the Digital Operator
must be used in order to change the constants from the initial val-
ues to values in accordance with the load specifications.
The following describes the functions and initial constant set val-
ues which are often used for operation.

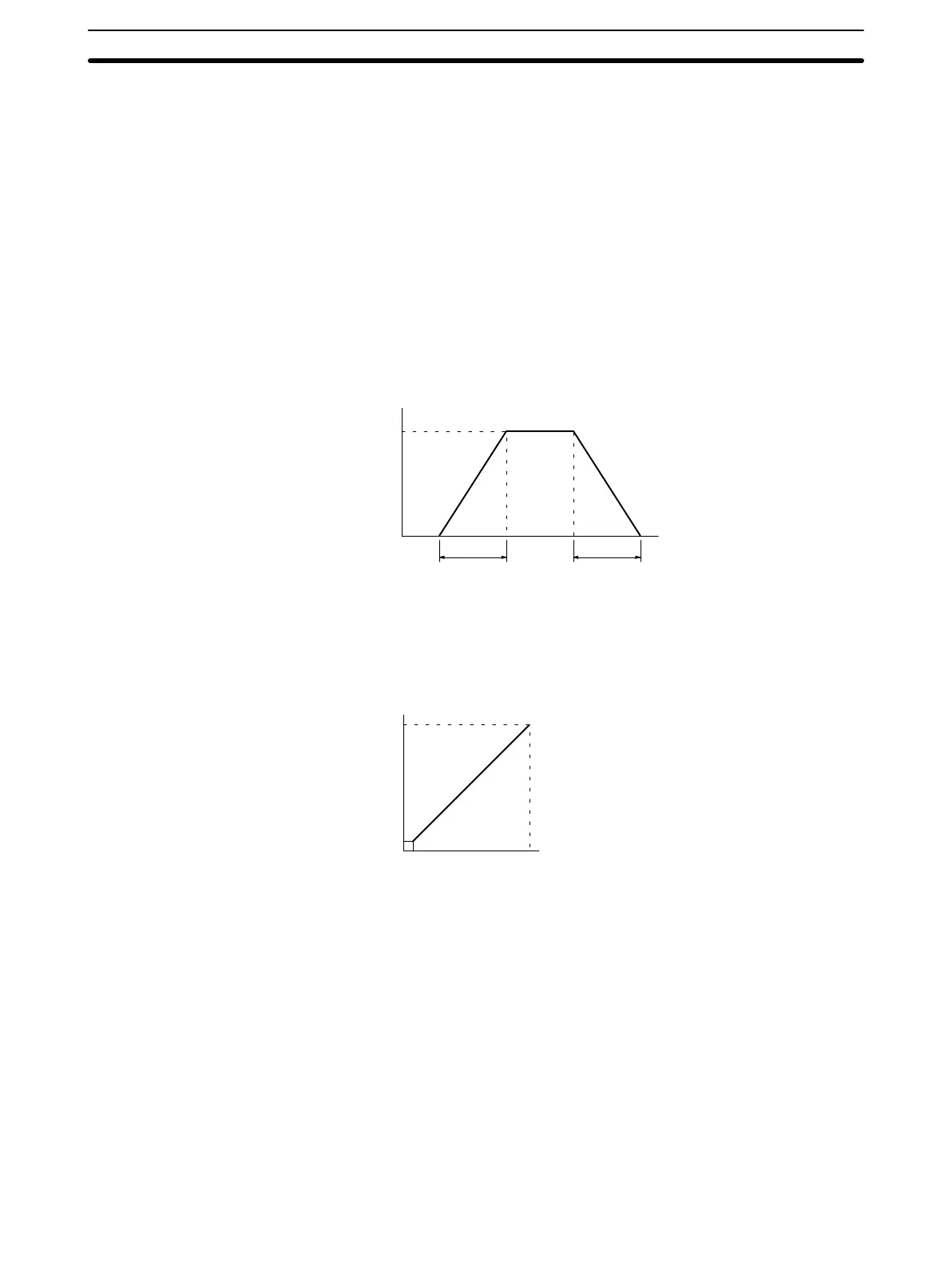

Output Frequency and Accel/Decel Time:
The maximum output frequency is set to 60 Hz and accel/decel
time to 10 seconds at the factory prior to shipping. To change the
values, refer to
2-8-6 Accel/Decel Time and Patterns
.
60
0
10”
Accel time
10”
Decel time
Output freq.
(Hz)
Frequency Setting Signal and Output Frequency:
The figure below shows the Inverter output frequency for control
circuit terminal master frequency reference voltage. To change the
value, refer to
2-8-7 Output Frequency Control (Gain/Bias)
.
60
0
1.5
10 V
Output freq.
(Hz)
Freq. setting voltage (V)
Set Value Prior to
Shipping
Operation Section 1-5
