•Protected from direct sunlight.
•Protected from corrosive gases or liquids.
•Free from airborne dust or metallic particles.
•Free from vibration.
•Free from magnetic noise.
Caution To house multiple SYSDRIVE 3G3XVs in a switchgear, install a
cooling fan or some other means to cool the air entering the
Inverter below 113°F (45°C).
1-3-2 Mounting Space

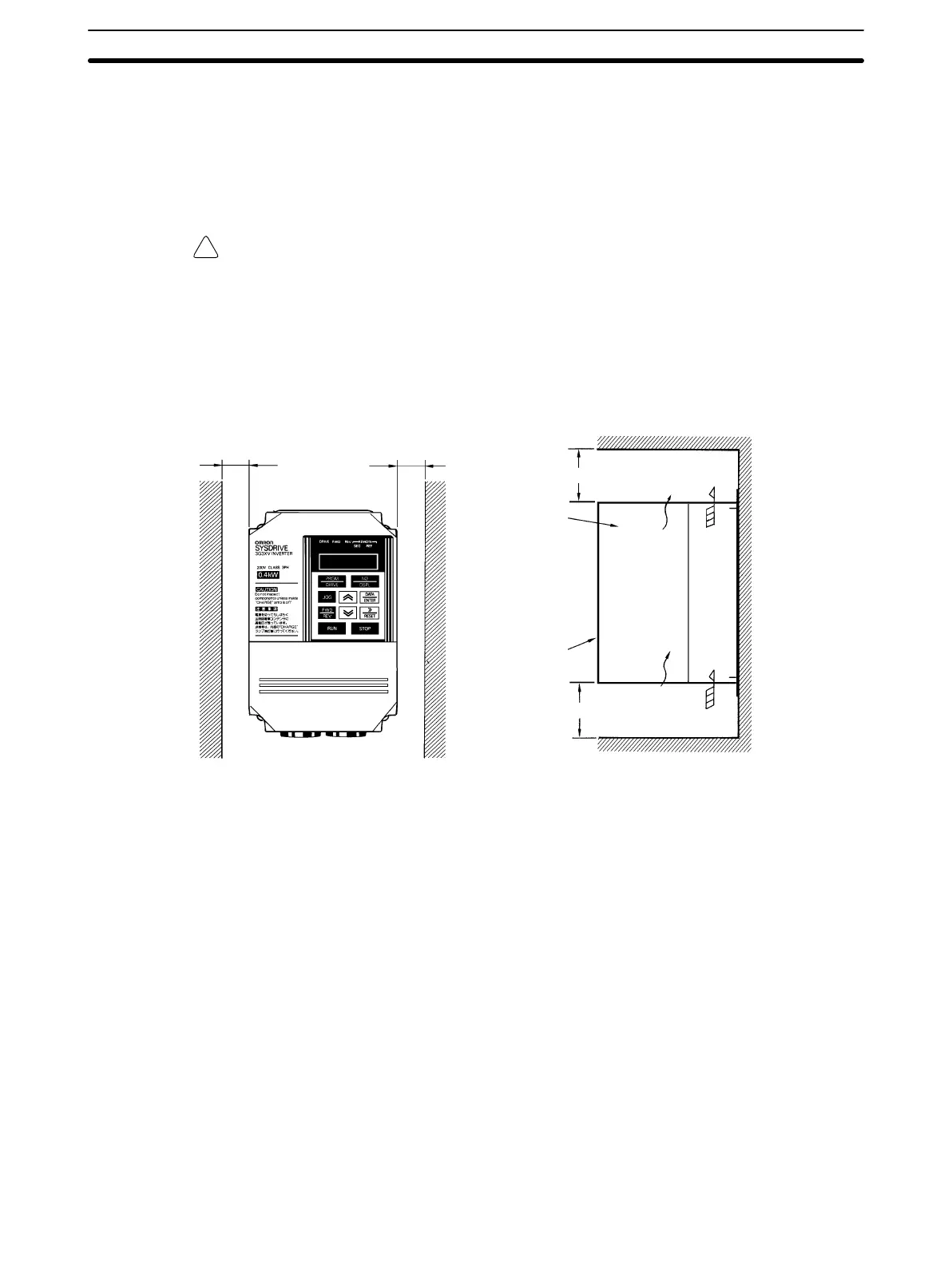

Install the 3G3XV vertically and allow sufficient space for effective
cooling as shown in below.
1.18 in (30 mm)
OR MORE
1.18 in (30 mm)
OR MORE
(a) Front View. (b) Side View
AIR
AIR
3.94 in (100 mm) OR MORE
3.94 in (100 mm) OR MORE
1-3-3 Dimensions in Inches (mm)
The Unit dimensions vary from model to model, as shown in the
following diagram and table.
Installation Section 1-3
To Next Page
