1-4-4 Control Circuit

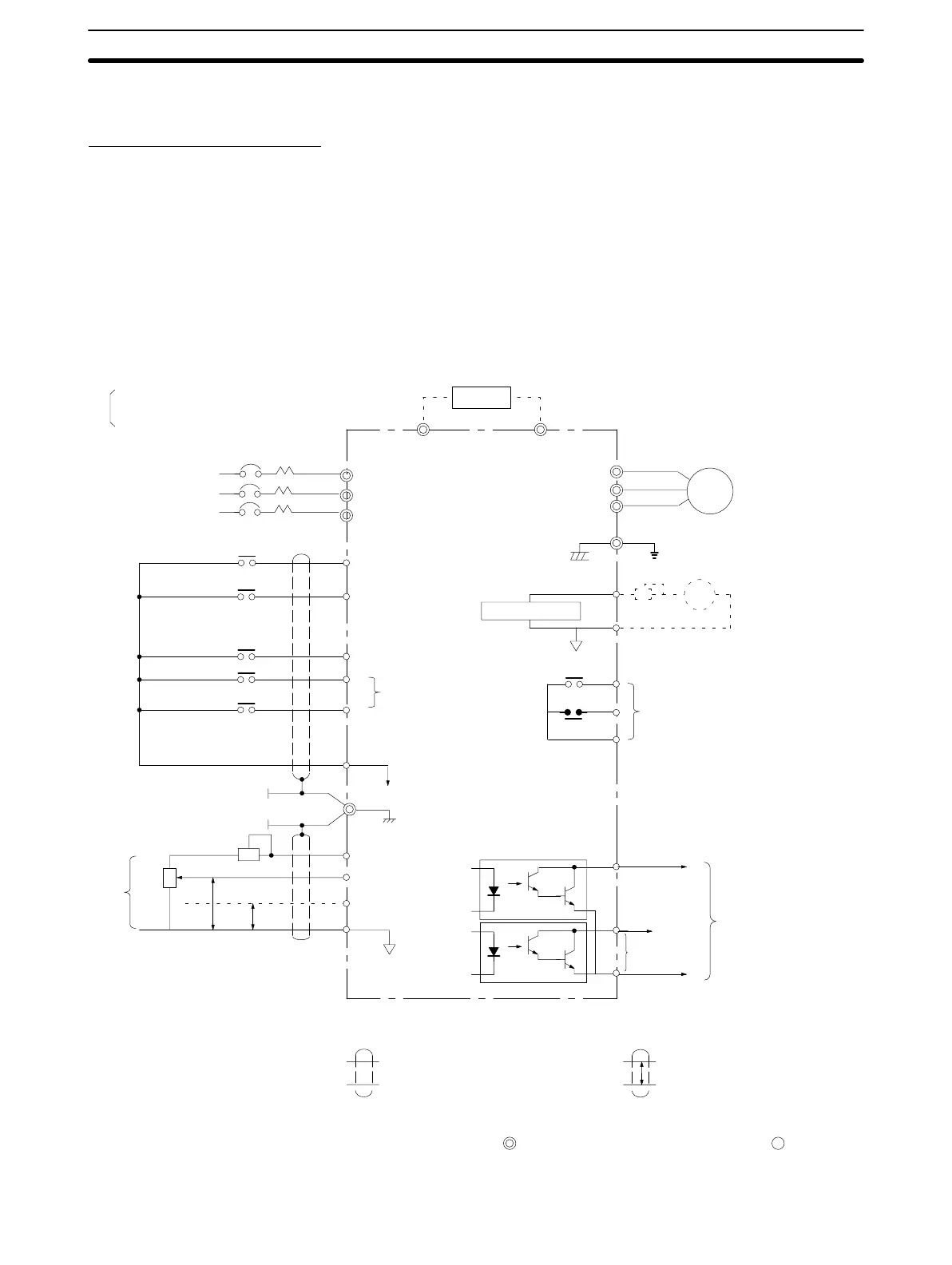

Control Circuit Wiring
The control signals are connected by screws. The following figure
shows the relationship between I/O signals (factory preset values)
and screw terminal numbers. The terminal functions shown in the
figure indicate standard setting prior to shipping. Since Operation
Mode from the Digital Operator is set for the Model with the Digital
Operator, it is necessary to change the control constants when
operation is performed from the control circuit terminals. For
details, refer to
2-8-2 Operation Mode Selection
.
Main circuit
power supply
Only terminal L1(R),
L2(S) for single-phase
power supply
L1 (R)
L2 (S)
L3 (T)
L1 (R)
L2 (S)
L3 (T)
MCCB
Braking resistor (optional)
B1/(+)
B2
T1 (U)
T2 (V)
T3 (W)
IM
G (E)
1
2
3
4
5
10
6
8
9
11
0V
13
14
7
2KΩ
0 to +10 VDC
4 to 20 mA
PP
G (E)
Sequence common terminal (0v)
Forward
Run/Stop
Reverse
Run/Stop
Fault reset
FM
12
11
FL T-A
FL T-B
FL T-C
Fault contact output
contact capacity:
less than 1 A for
250 VAC and 30 VDC
External fault
Analog monitor
Multifunction contact input
Power supply for speed setting:
+12 V 20 mA
Shielded lead connection terminal
Master command
0 to +10 VDC(2 KΩ)
Current command
4 to 20 mA(250 Ω)
Standard Wiring Diagram
Multlfunction
output open
collector less
than 48 V 50 mA
During run
Frequency
agreement
Multi-step speed
setting 1
Analog output
0 to + 10 VDC.
(Factory setting is
output frequency)
3G3XV
2KΩ
Note 1. indicates shielded leads.
P
indicates twisted-pair
shielded leads.
2. Terminal symbols:
indicates the main circuit, and indicates
the control circuit.
Wiring Section 1-4
To Next Page
