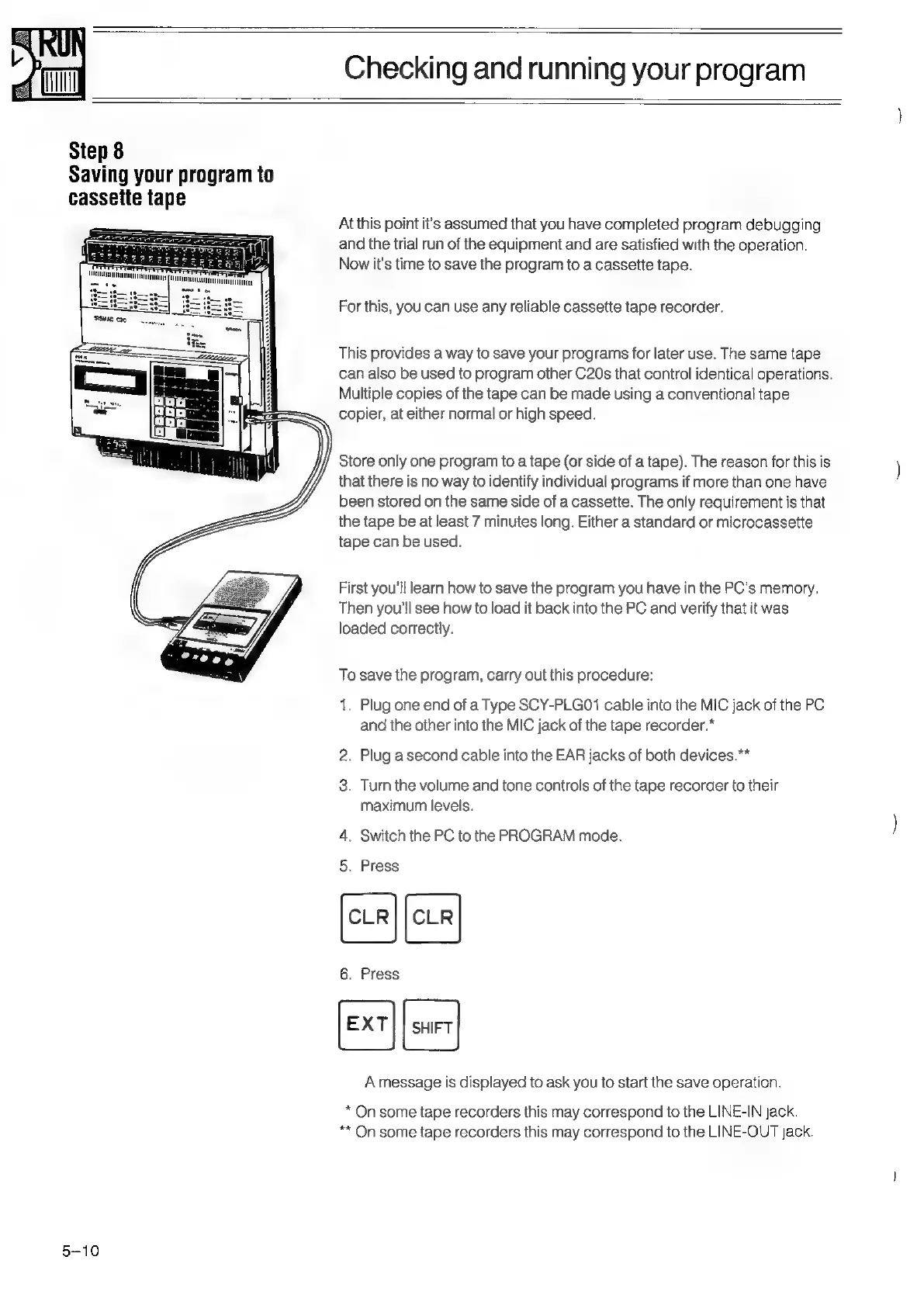

Checking and running your program
Step 8
Saving your program to
cassette tape
At this point it's assumed that you have completed program debugging
and the trial run of the equipment and are satisfied with the operation.
Now it's time to save the program to a cassette tape.
For this, you can use any reliable cassette tape recorder.
This provides a way to save your programs for later use. The same tape
can also be used to program other C20s that control identical operations.
Multiple copies of the tape can be made using a conventional tape
copier, at either normal or high speed.
Store only one program to a tape (or side of a tape). The reason for this is
that there is no way to identify individual programs if more than one have
been stored on the same side of a cassette. The only requirement is that
the tape be at least 7 minutes long. Either a standard or microcassette
tape can be used.
First you'll learn how to save the program you have in the PC’s memory.
Then you'll see how to load it back into the PC and verify that it was
loaded correctly.
To save the program, carry out this procedure:
1. Plug one end of a Type SCY-PLGO1 cable into the MIC jack of the PC
and the other into the MIC jack of the tape recorder.*
2. Plug a second cable into the EAR jacks of both devices.**
3. Turn the volume and tone controls of the tape recorder to their
maximum levels.
4. Switch the PC to the PROGRAM mode.
5. Press
6. Press
A message is displayed to ask you to start the save operation.
* On some tape recorders this may correspond to the LINE-IN jack.
** On some tape recorders this may correspond to the LINE-OUT jack.
