10-2 Input Interrupts
10
10-2-3 Application Example
z Programming Example
Cyclic Task
Interrupt Task 2
0.04
Interrupt input 2
Interrupt input 2
Specifies executing
interrupt when input
turns ON.
Unmasks the input
interrupt.

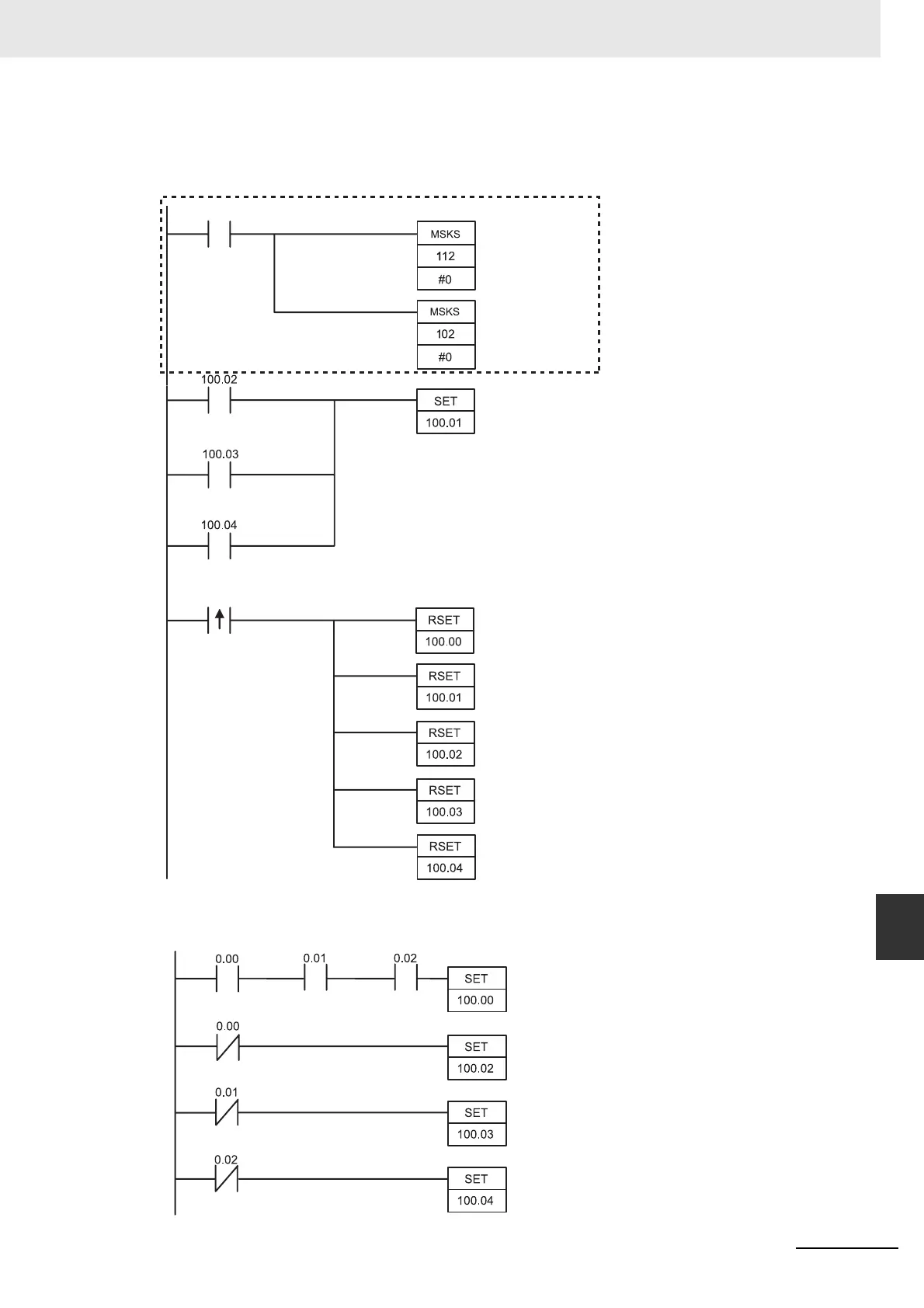

The MSKS instruction is used
to specify an interrupt when the
input turns ON and then it is
used to unmask the input
interrupt.
NG output sensor input 1
P_First_Cycle
NG output sensor input 2
NG output sensor input 3
Reset input
Sensor input 1
Sensor input 1
Sensor input 2
Sensor input 2
Sensor input 3
Sensor input 3
OK output
NG output 2
Sensor input 1
NG output 3
Sensor input 2
NG output 4
Sensor input 3
