17-13

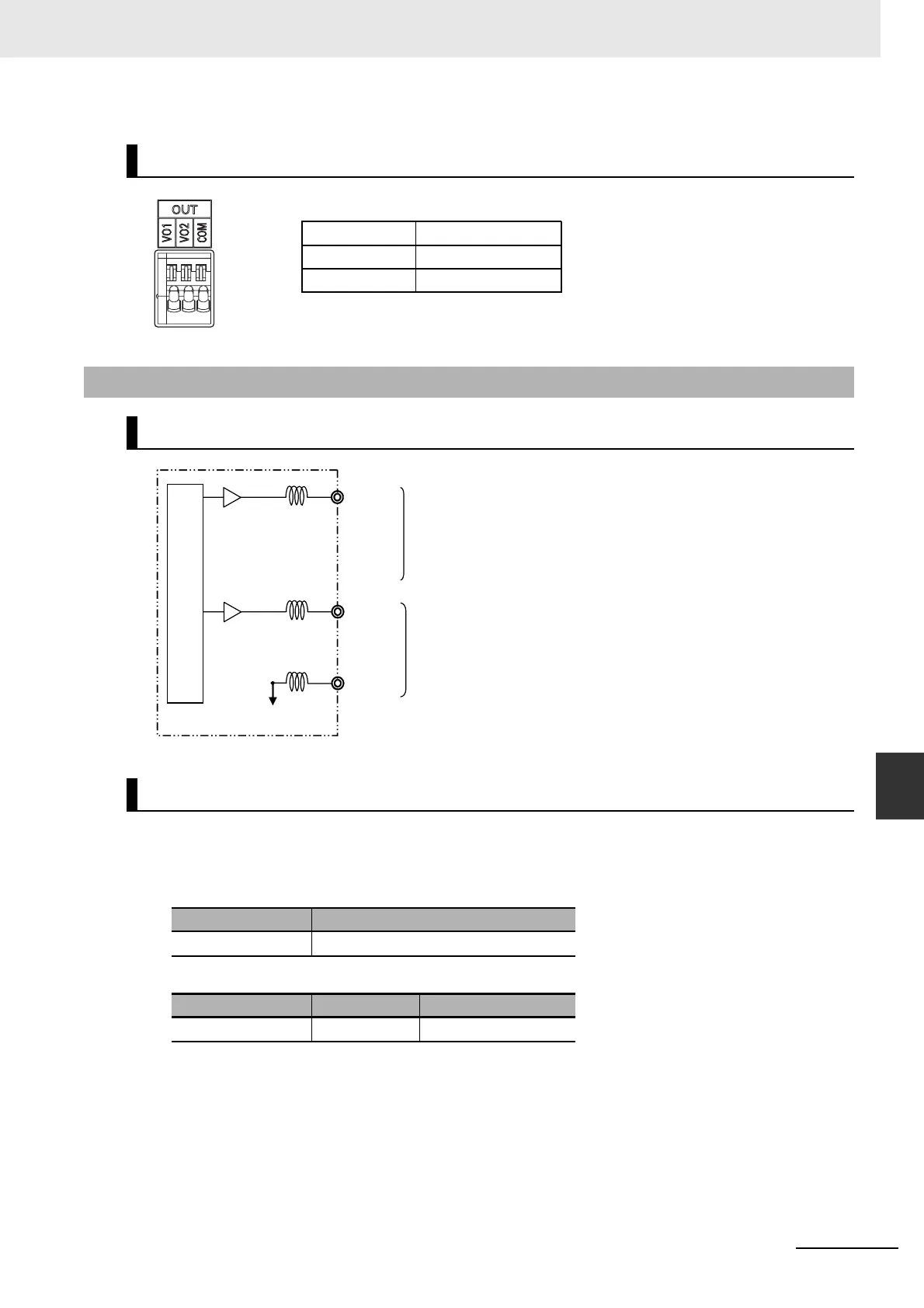

17 Analog Input/Output Option Board

CP2E CPU Unit Software User’s Manual(W614)

17-6 Analog Output Option Board

17-6-3 Wiring

z Applicable Cables

Solid wire or ferrules can be used.

• Recommended solid wire

• Recommended ferrules

Note Do not connect bare stranded wires directly to terminals.

Analog Output Terminal Arrangement

17-6-3 Wiring

Internal Circuits

Applicable Cables and Terminal Wiring

Wire type Wire size

Solid Wire

0.2mm

to 0.5mm

(AWG24 to AWG20)

Manufacturer Model Applicable wire

Phoenix Contact AI-0.25-12

0.2mm

(AWG24)

VO1 Voltage Output 1

VO2 Voltage Output 2

COM Output Common

Analog output 1

Analog ground

V O 1

COM(−)

V O 2

Analog output 2

toto

Internal circuits
